Dell PowerEdge C6220 II - Page 293

Installing System Components | 293
9 Remove the screws that secure the front-panel assembly to the hard-
drive cage. See Figure 3-102.
10 Remove the front-panel assembly from the hard-drive cage. See Figure
3-102.

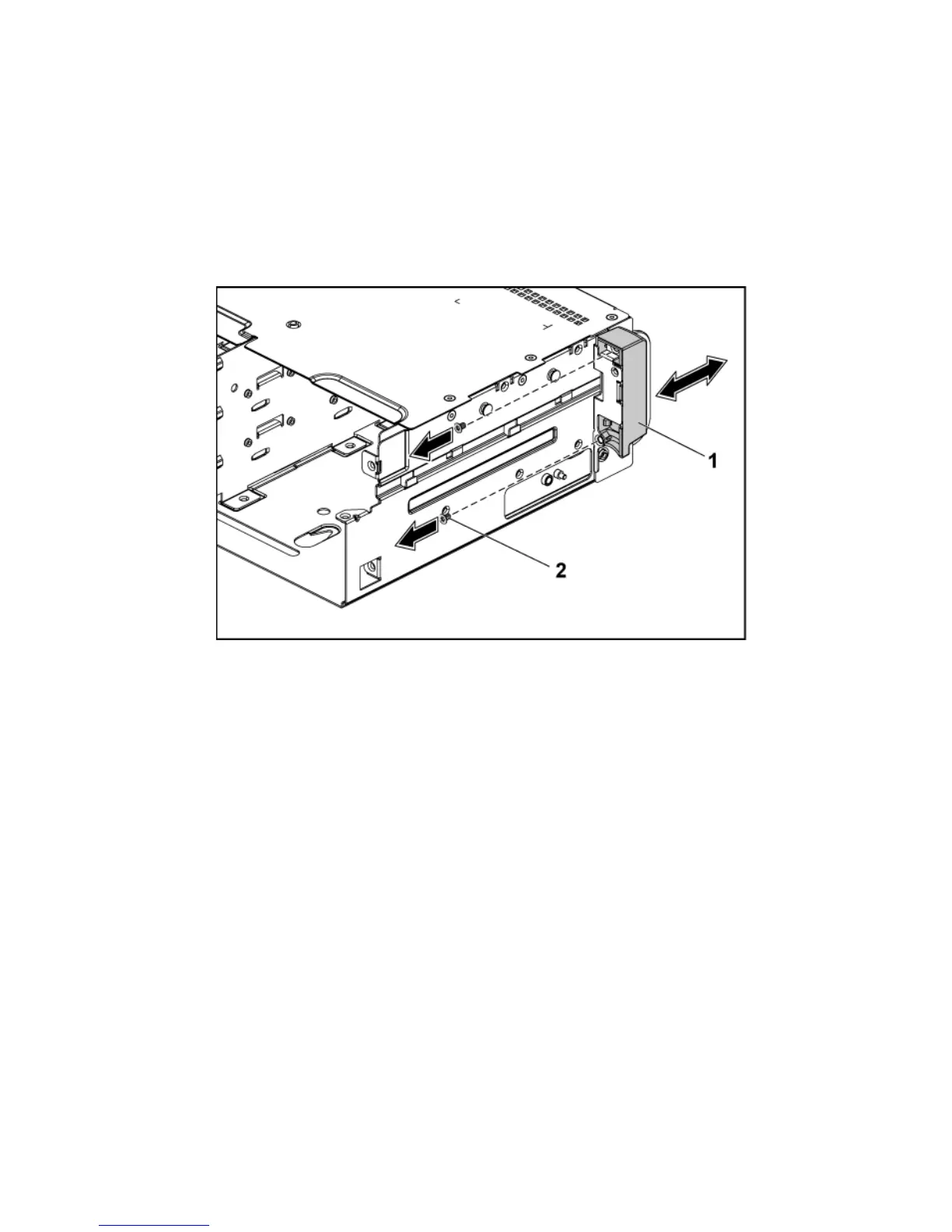

Figure 3-102. Removing and Installing a Front Panel Assembly
1
front-panel assembly
2
screw (2)
