Installing System Components | 301
8 Remove the screw that secures the sensor board assembly to the hard
drive cage. See Figure 3-106.
9 Remove the sensor board assembly from the hard drive cage. See
Figure 3-106.

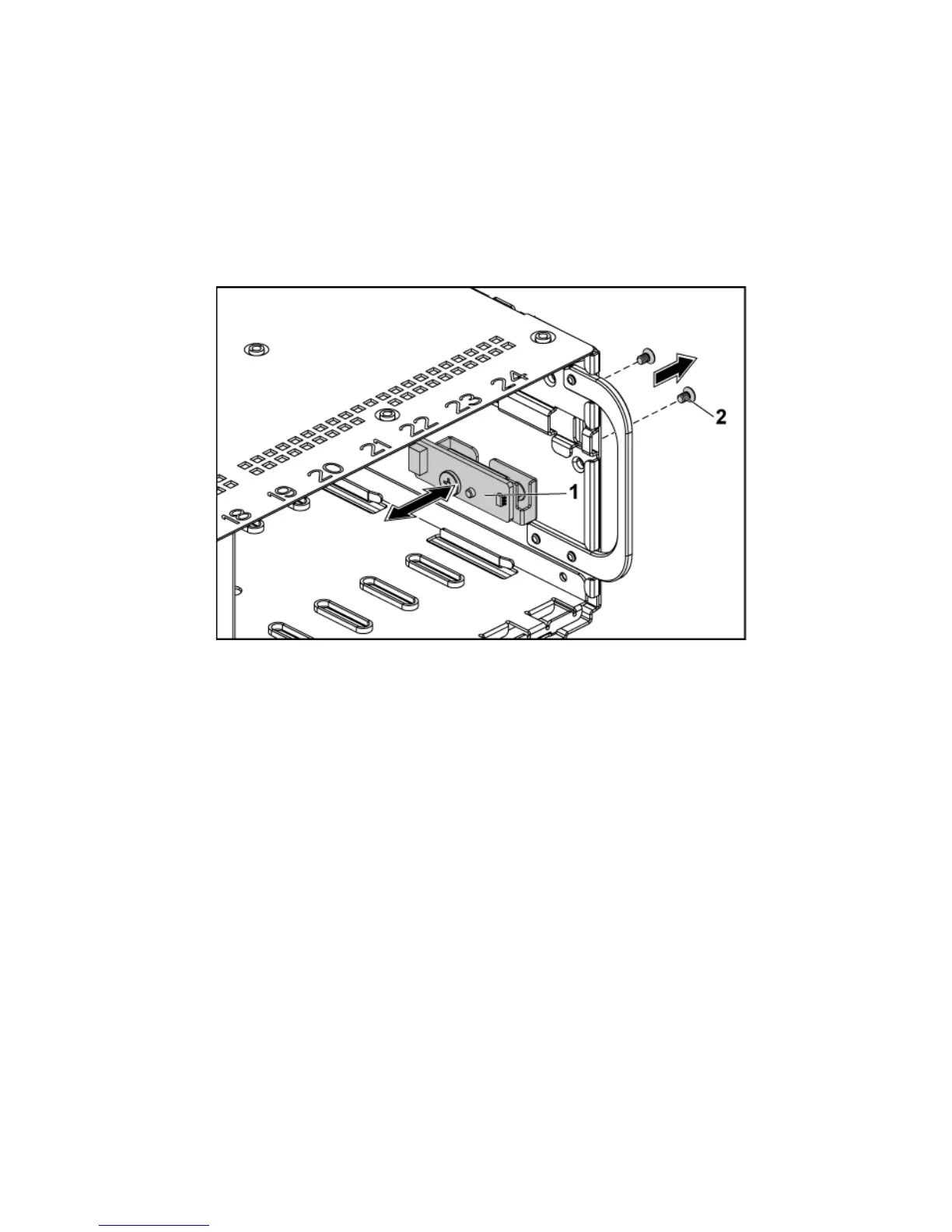

Figure 3-106. Removing and Installing the Sensor Board Assembly
1
sensor board assembly
2
screw (2)
