Dell PowerEdge R660 - Right control panel view

Table 5. Left control panel with optional iDRAC Quick Sync 2 indicator(continued)
Item Indicator, button, or
connector
Icon Description
2 System health and system
ID indicator
Indicates the system health. For more information, see the
System health and system ID indicator codes section.
3 iDRAC Quick Sync
2 wireless indicator
(optional)
Indicates if the iDRAC Quick Sync 2 wireless option is
activated. The Quick Sync 2 feature allows management of the
system using mobile devices. This feature aggregates hardware/
firmware inventory and various system level diagnostic/error
information that can be used in troubleshooting the system. You
can access system inventory, Dell Lifecycle Controller logs or
system logs, system health status, and also configure iDRAC,
BIOS, and networking parameters. You can also launch the virtual
Keyboard, Video, and Mouse (KVM) viewer and virtual Kernel-
based Virtual Machine (KVM), on a supported mobile device.
For more information, see the Integrated Dell Remote Access
Controller User's Guide at www.dell.com/poweredgemanuals.
NOTE: For more information about the indicator codes, see the System diagnostics and indicator codes section.
Right control panel view

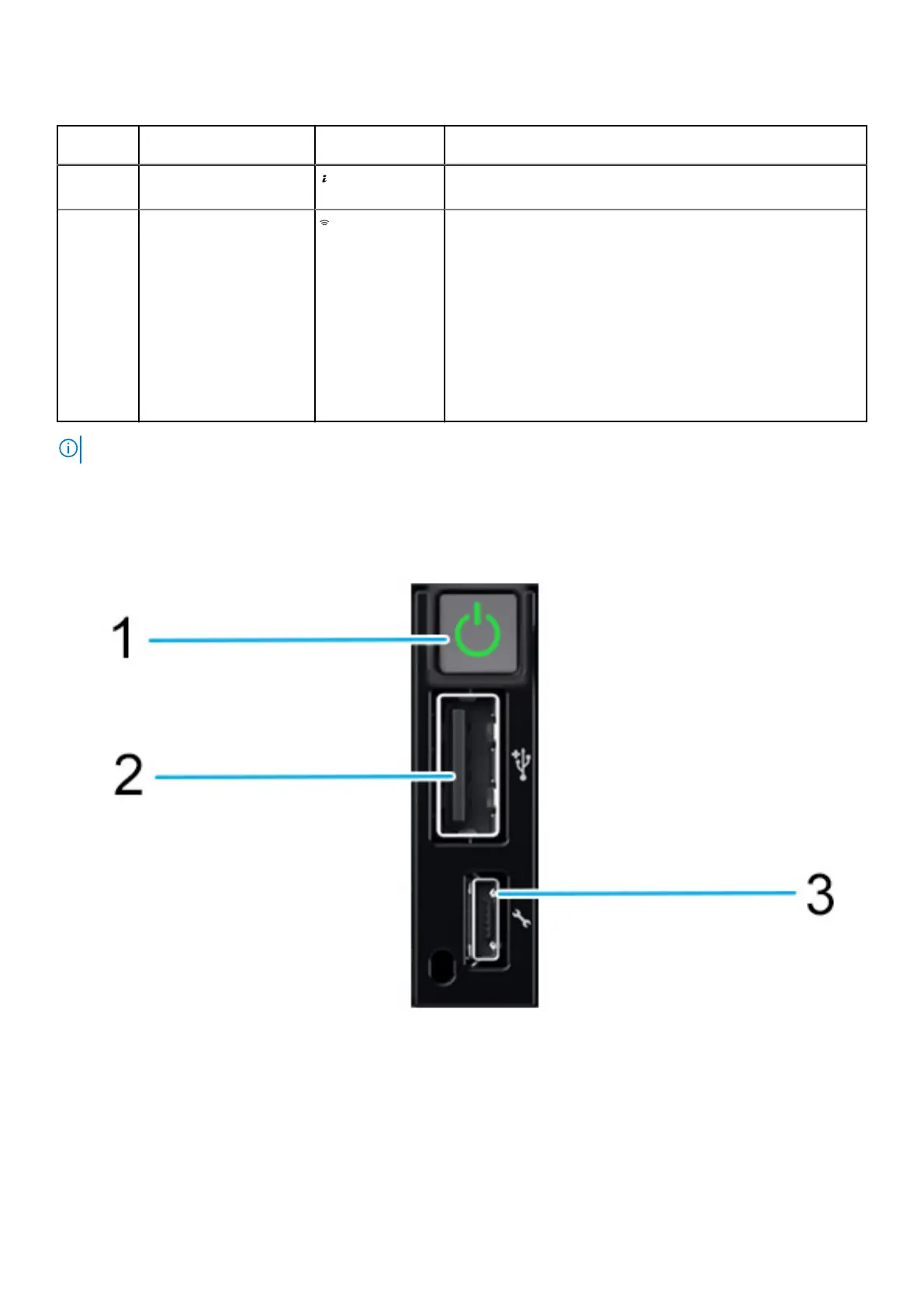

Figure 8. Right control panel
PowerEdge R660 system overview
13
