Next steps
1. Install the expansion card riser .
2. Replace the air shroud.
3. Follow the procedure listed in the After working inside your system.
Expansion cards and expansion card risers
NOTE: When an expansion card is not supported or missing, the iDRAC and Lifecycle Controller logs an event. This does
not prevent your system from booting. However, if a F1/F2 pause occurs with an error message, see Troubleshooting
expansion cards section in the PowerEdge Servers Troubleshooting Guide at www.dell.com/poweredgemanuals.
Expansion card installation guidelines

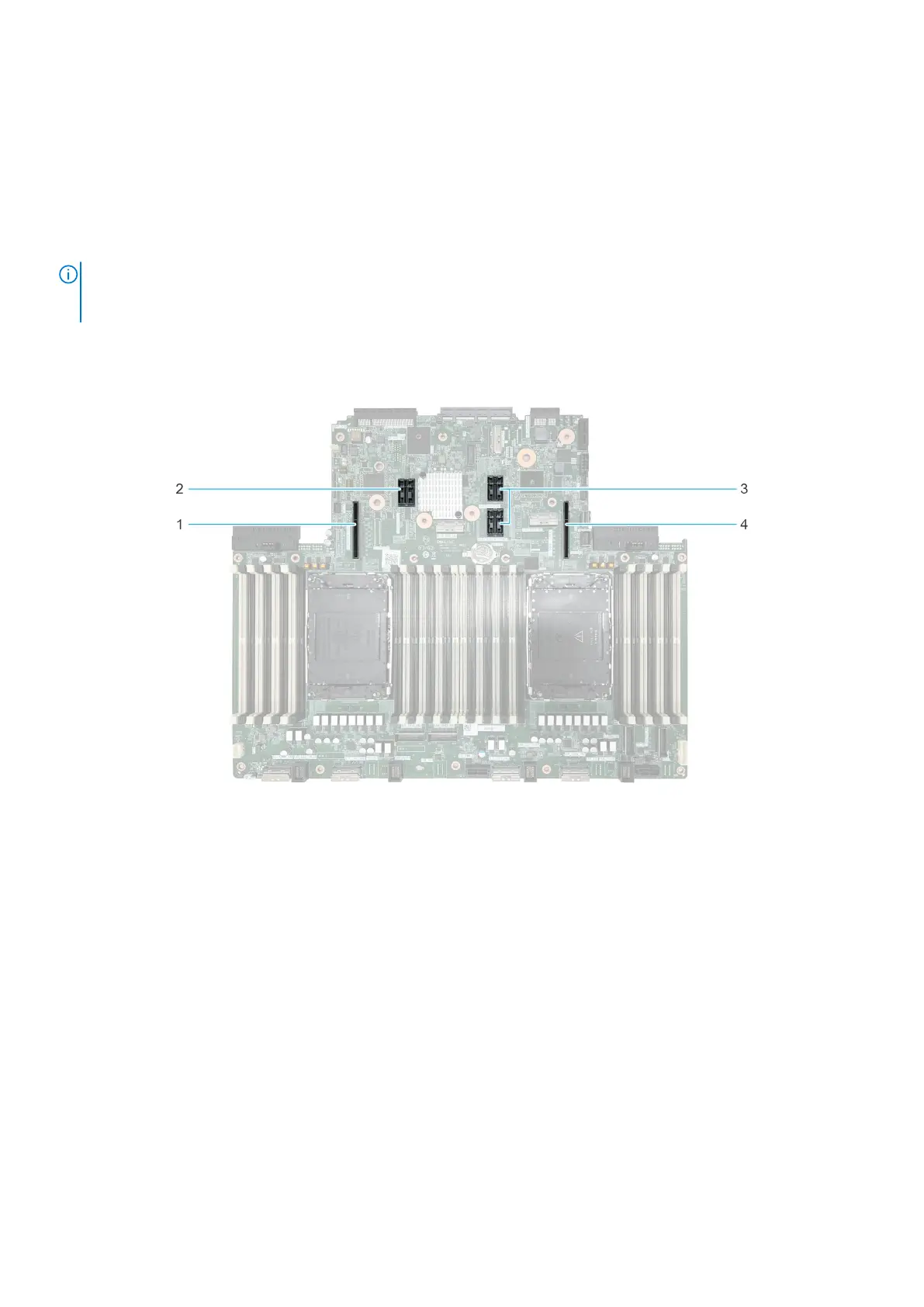

Figure 152. Expansion card slot connectors
1.
Riser 4 slot 2. Riser 3 slot
3. Riser 2 slot 4. Riser 1 slot
Installing and removing system components 177
