Installing the side wall bracket
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If installed, remove the air shroud.
4. Remove the cooling fan.
NOTE: Ensure that you note the routing of the cables as you remove them from the system board. Route the cables
properly when you replace them to prevent the cables from being pinched or crimped.
Steps
1. Route the cables through the side wall cable holder, close the side wall cable holder until the holder clicks into place.
NOTE: There are two different right side brackets available on different configurations - one with foam and one without
foam. The procedure to install is similar.
NOTE: The right bracket may have a foam sealing available. Ensure to replace the foam before routing the cables.
2. Align the side wall bracket on the chassis until it is seated firmly.

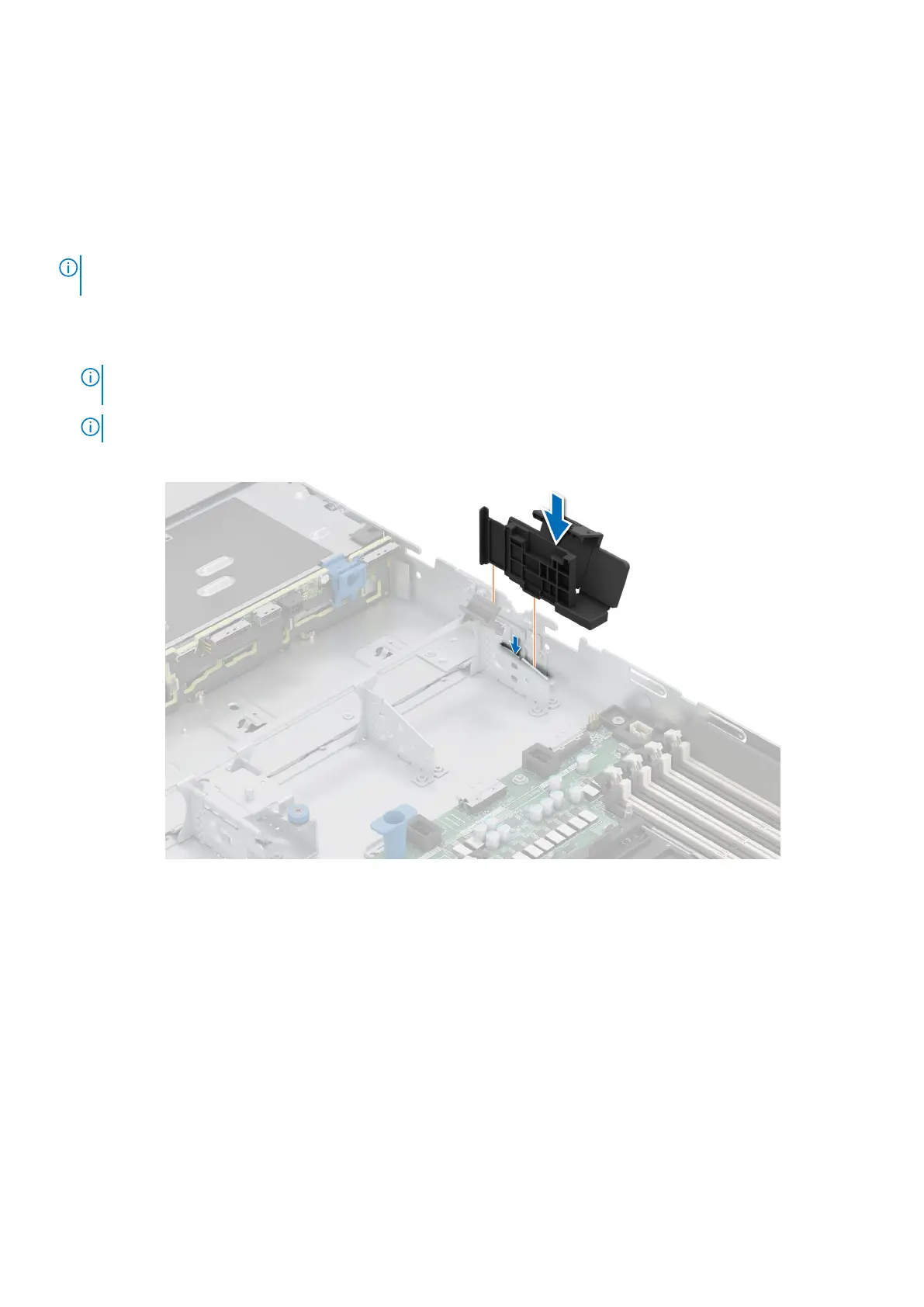

Figure 95. Installing the left side wall bracket
134
Installing and removing system components
