Dell PowerEdge R660 User Manual

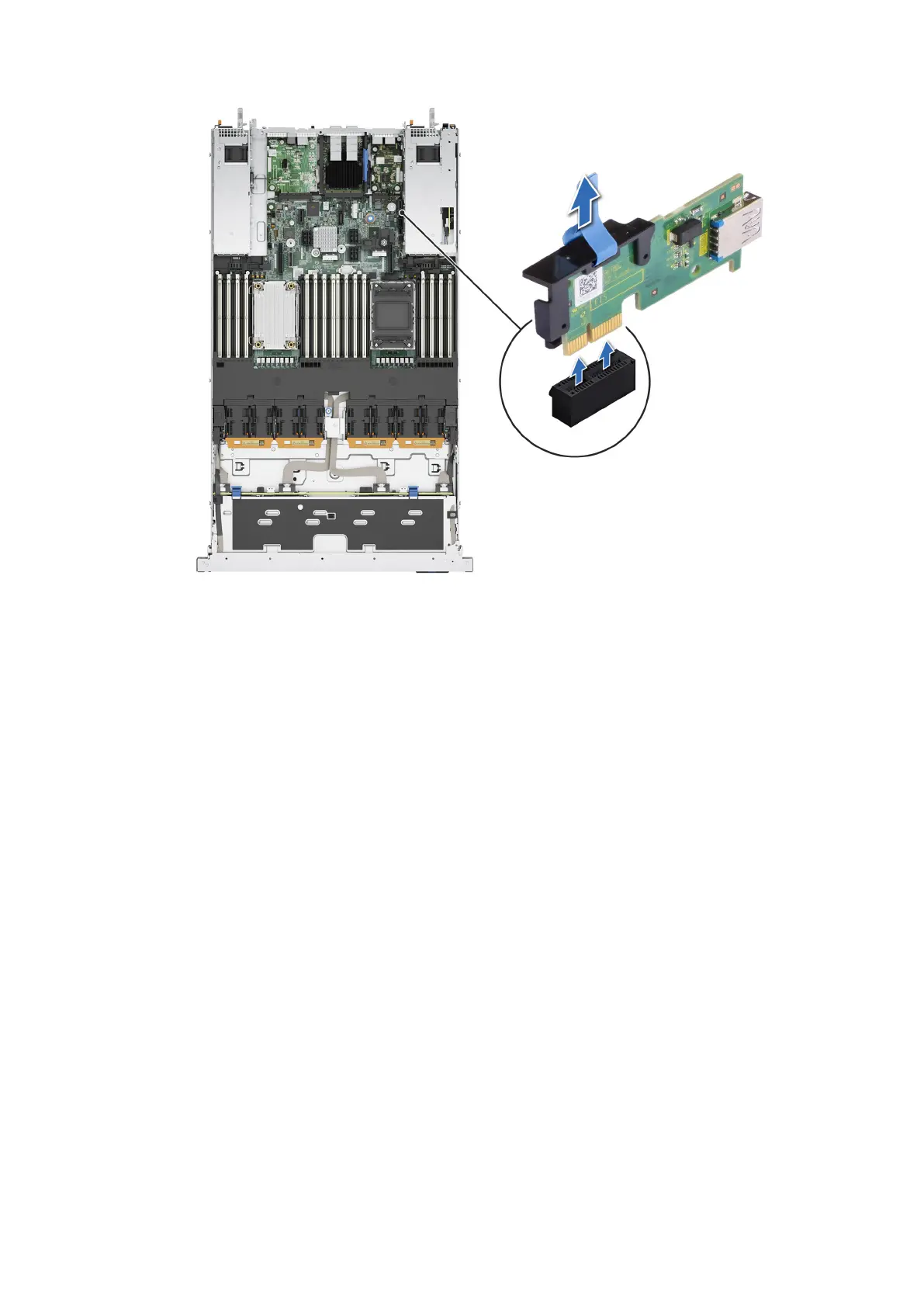

Figure 205. Removing the internal USB card
Next steps
Replace the internal USB card.
Installing the optional internal USB card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Connect the USB key to the internal USB card.
2. Align the internal USB card with the connector on the system board and press firmly until the internal USB card is seated.
Installing and removing system components
223

Dell PowerEdge R660 Specifications

General

Form Factor	1U Rack Server
CPU	Intel Xeon Scalable Processors (up to 2 sockets)
Memory	Up to 2TB DDR5
Memory Slots	32 DDR5 DIMM slots
Storage	Up to 10 x 2.5" or 3.5" drives (SAS/SATA/NVMe)
RAID Support	PERC H755, H755N, H355, HBA355i
Power Supply	800W, 1100W
Network Options	1 x 1 GbE, 1 x 10 GbE, 1 x 25 GbE
Management	iDRAC9
