Installing the intrusion switch module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser.
NOTE: Ensure that you note the routing of the cables as you remove them from the system board. Route the cables
properly when you replace it to prevent the cables from being pinched or crimped.
Steps
1. Align the guides on the intrusion switch module with the standoffs on the system.
2. Slide the intrusion switch module into the slot in the system until firmly seated.
3. Using a Phillips #2 screwdriver, tighten the screw on the intrusion switch module.
4. Connect the intrusion switch cable to the connector on the rear I/O board.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

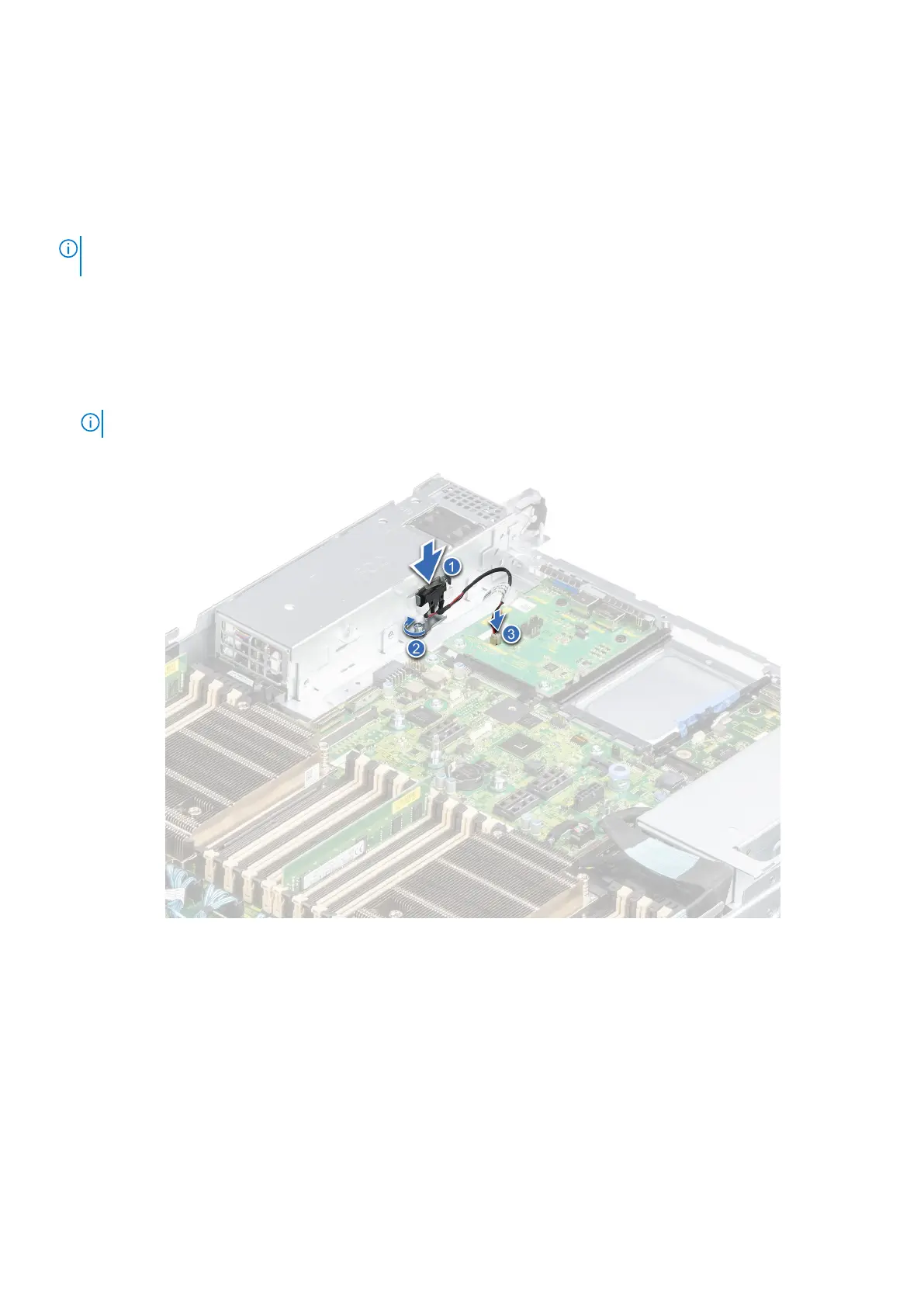

Figure 184. Installing the intrusion switch module
Next steps
1. Install the expansion card riser.
2. Follow the procedure listed in After working inside your system.
208
Installing and removing system components

Dell PowerEdge R660 Specifications

General

Form Factor	1U Rack Server
CPU	Intel Xeon Scalable Processors (up to 2 sockets)
Memory	Up to 2TB DDR5
Memory Slots	32 DDR5 DIMM slots
Storage	Up to 10 x 2.5" or 3.5" drives (SAS/SATA/NVMe)
RAID Support	PERC H755, H755N, H355, HBA355i
Power Supply	800W, 1100W
Network Options	1 x 1 GbE, 1 x 10 GbE, 1 x 25 GbE
Management	iDRAC9
