Setting the Operator Control Panel Access PIN using the Operator Control
Panel:
1. Navigate to Configure → Set Access PIN.
2. Press the SELECT button to highlight the first digit of the 4-digit Access PIN.
3. Use the UP and DOWN buttons to select each digit.
4. Press the SELECT button to move to the next digit.
5. Repeat these steps for repeating the Access PIN.
6. After entering the final digit, press the DOWN button and select one of the
following:
v Save - to apply your settings.
v Cancel - to delete your settings.
Note: In Figure 5-18 on page 5-27, menus with the pound sign (#) are the only
menus accessible when the Access PIN is enabled, but entered incorrectly
or before it is entered. To gain access to all menus, disable the Access
PIN or enter the correct PIN number when requested.

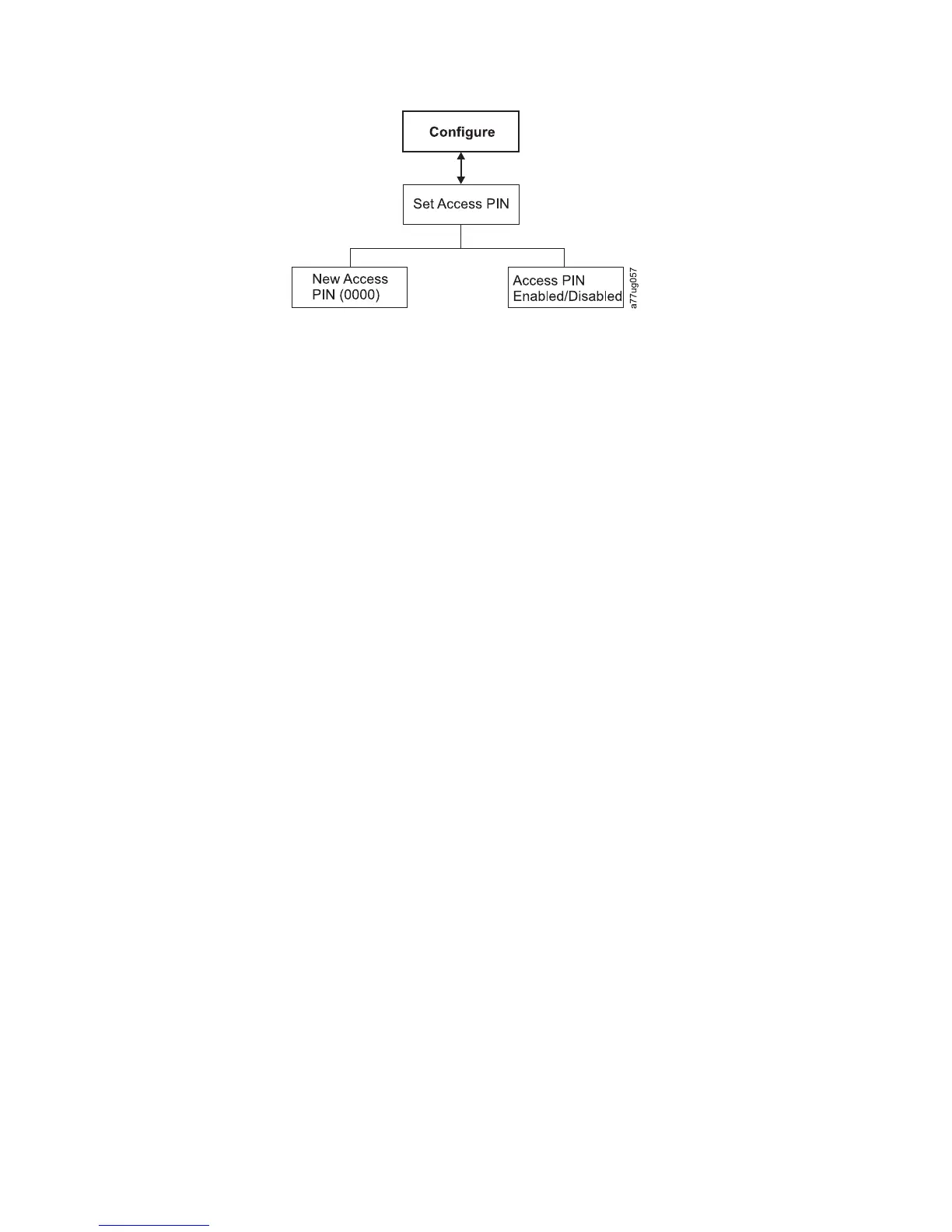

Figure 5-17. Configure: Set Access PIN menu
5-26 Dell PowerVault TL2000 Tape Library and TL4000 Tape Library User's Guide
