Dell PowerVault TL2000 User Manual

Table 1-1. 2U library and 4U library front panel descriptions (continued)
Number Item Description
5 Control keys
v UP (∧) - The upper left button is used to scroll upward through menu items.
v DOWN (∨) - The lower left button is used to scroll downward through menu items.
v CANCEL (X) - The upper right button is used to cancel a user action and return to
the previous menu screen.
v SELECT (') - The lower right button is used to display a sub-menu or force an
accessor action.
7 Operator
Control Panel
display
This component is a 128 X 64 monochrome graphic display.
8 I/O Station The Input/Output (I/O) Station is used to import and export cartridges into and out
of the library.
v The 2U library has an elective 1-slot I/O Station.
v The 4U library has an elective 3-slot I/O Station.
Rear Panel
a77ug007
1
3
42
5
7
8
11
9
1011

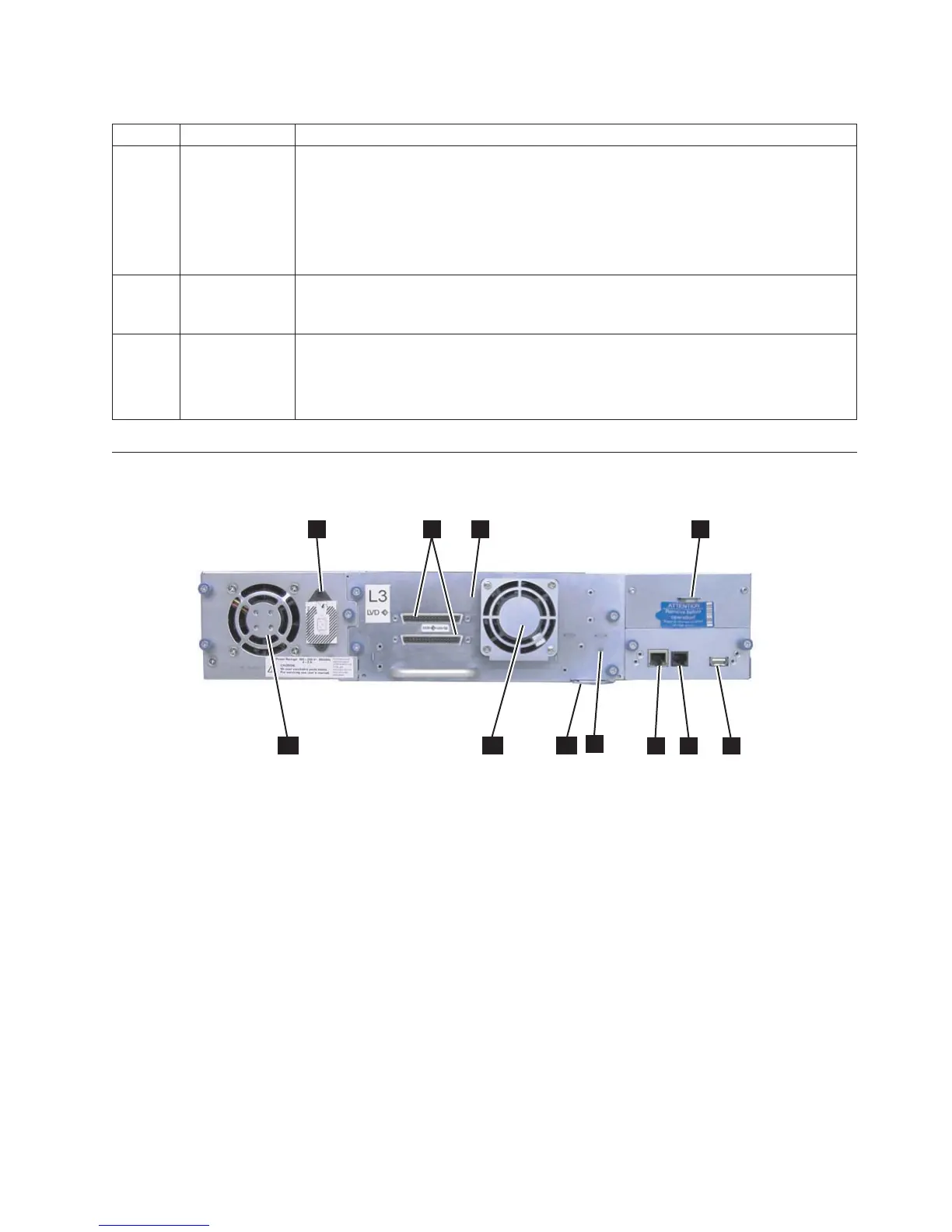

Figure 1-3. Rear panel of a 2U library with a SCSI drive
Chapter 1. Product Description 1-3

Dell PowerVault TL2000 Specifications

General

Number of Drives	1 or 2
Number of Slots	24
Type	Tape Library
Drive Types	LTO-4, LTO-5, LTO-6
Interface	SAS, Fibre Channel
Dimensions	8.68 in (22.05 cm) x 19.0 in (48.26 cm) x 30.0 in (76.2 cm)
Tape Drive Compatibility	LTO-4, LTO-5, LTO-6
Power Supply	Redundant power supplies optional
Operating Temperature	50°F to 95°F (10°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
