Dell PowerVault TL2000 User Manual

Important: Do not click the Submit button until all changes have been made
to the Network page. Once the Submit button has been clicked, no
other changes can be made until after the library has applied the
current changes.
After the Submit button has been clicked, depending on the
changes made, you will either be disconnected and need to login
again or reboot the library.
Clicking the Refresh button will refresh the page and any changes
made will not be retained.
2. Select a Protocol Stack - Choose IPv4 only, IPv6 only,orDual Stack IPv4 &
IPv6.
If you choose Dual Stack IPv4 & IPv6, you must be prepared to enter both
IPv4 and IPv6 IP addresses. The sections below will gray out depending on
the choices made here.
3. Enter the Host Name.
4. Enter the Domain Name.
5. DNS Primary - Enter the IP address of your primary DNS server.
6. DNS Secondary - Enter the IP address of your secondary DNS server.
7. Enable SSL for Web - If you desire to have SSL (Secure Sockets Layer)
enabled, place a check in this box.
a77ug074

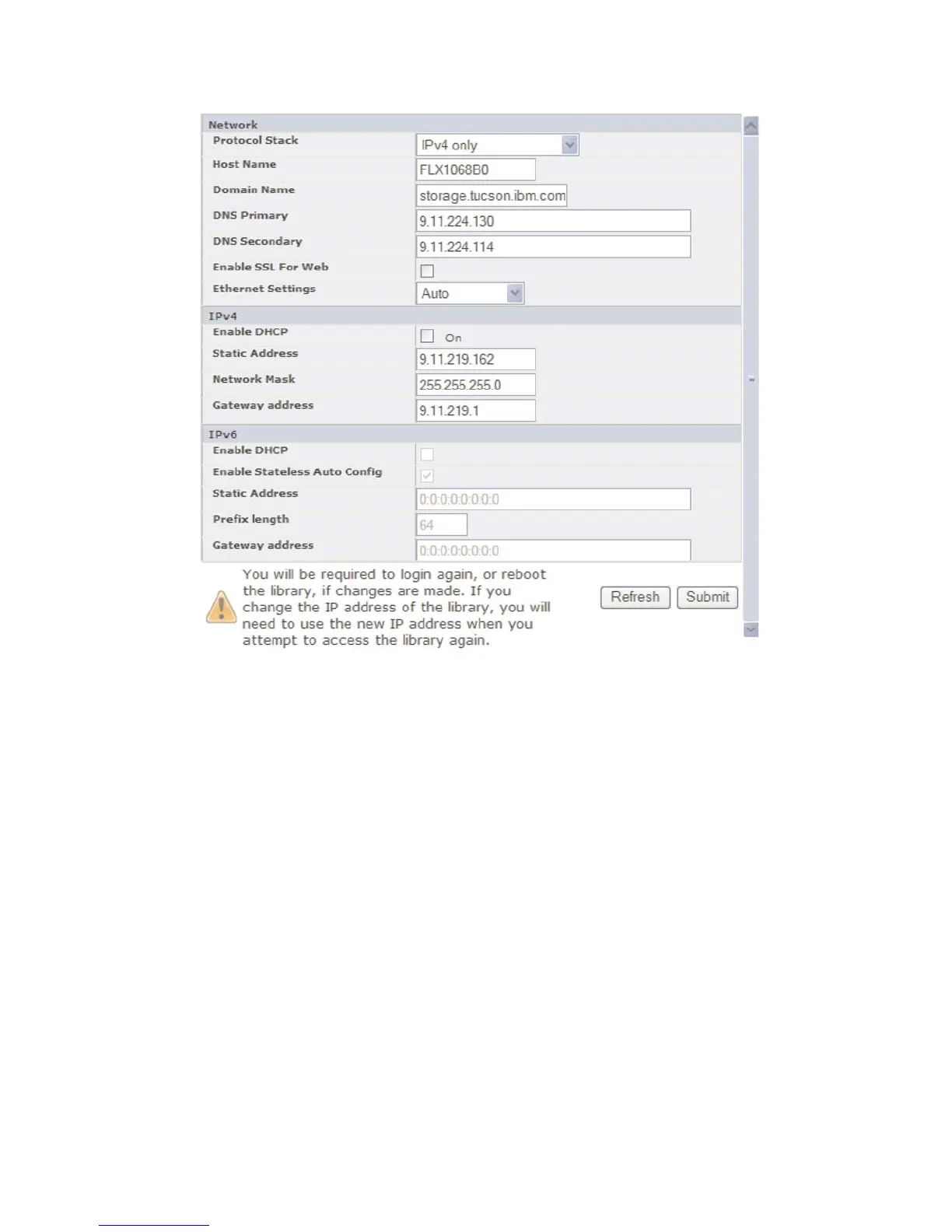

Figure 5-43. Configure Library: Network Page
Chapter 5. Operations 5-51

Dell PowerVault TL2000 Specifications

General

Number of Drives	1 or 2
Number of Slots	24
Type	Tape Library
Drive Types	LTO-4, LTO-5, LTO-6
Interface	SAS, Fibre Channel
Dimensions	8.68 in (22.05 cm) x 19.0 in (48.26 cm) x 30.0 in (76.2 cm)
Tape Drive Compatibility	LTO-4, LTO-5, LTO-6
Power Supply	Redundant power supplies optional
Operating Temperature	50°F to 95°F (10°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
