Dell PowerVault TL2000 - Pushing the Drive Sled into the Library (Drive Sled Without ESD Springs Shown)

5. Tighten the captive thumbscrews (7 in Figure 10-6 on page 10-5) until the
drive sled is secure.
6. If you are installing a drive sled without ESD springs (see Figure 10-4 on page
10-3), apply conductive tape to the sled as shown in Figure 10-9 on page 10-8.
a77ug028

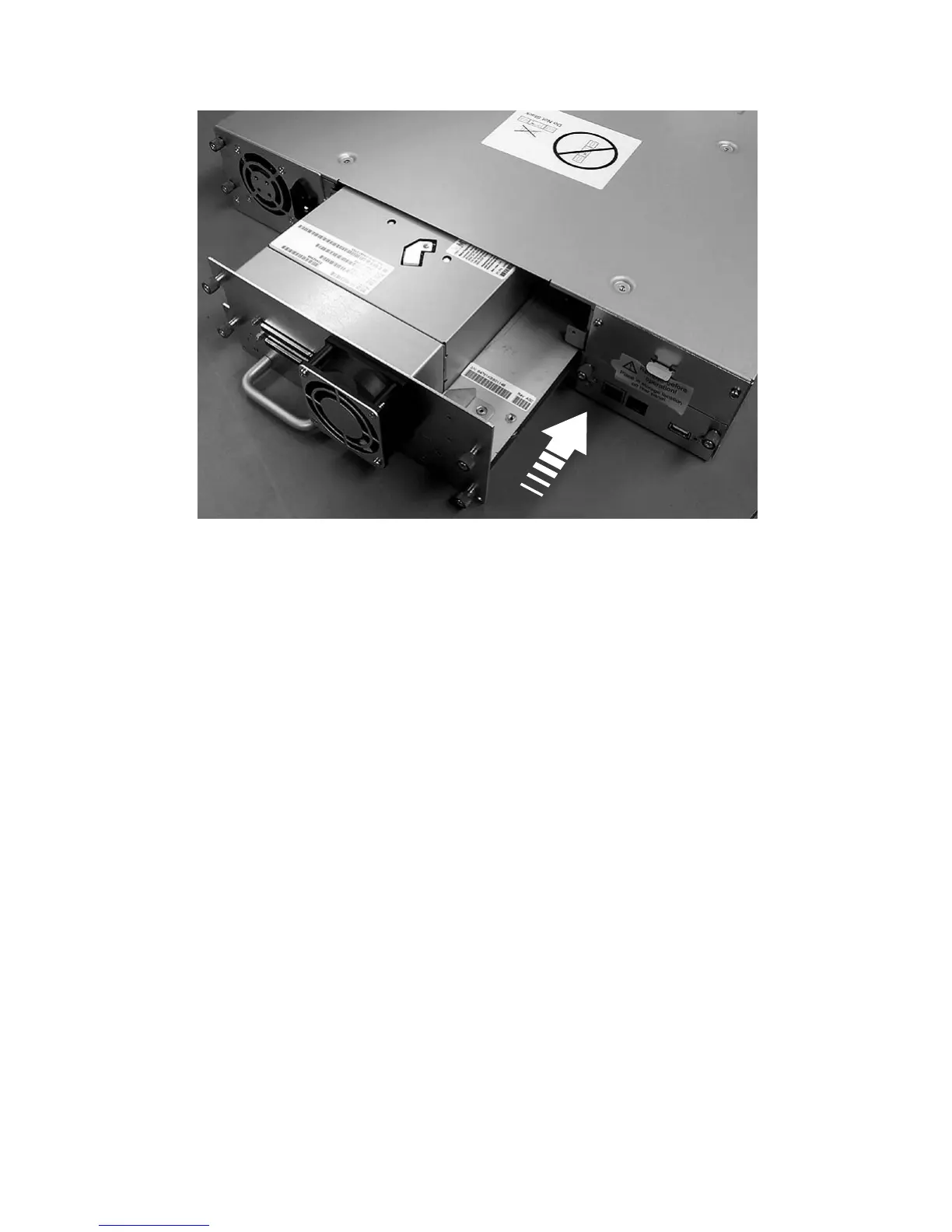

Figure 10-8. Pushing the drive sled into the library (drive sled without ESD springs shown)
Chapter 10. Check, Adjust, Remove, and Replace 10-7
