Dell PowerVault TL2000 - Attaching Host Interface Cables to the 4 U

connector. Unused SAS connectors do not need to be terminated.
3. Attach the other end of the host interface cable as follows:
v For a SCSI library, connect the host interface cable to the connector on the
SCSI host bus adapter or to the connector on the previous device on the SCSI
bus. Attach the terminator (
3
in Figure 4-13) to the remaining SCSI
connector on the back panel of the library, if the library is the last or only
a77ug017
1
3
4
2

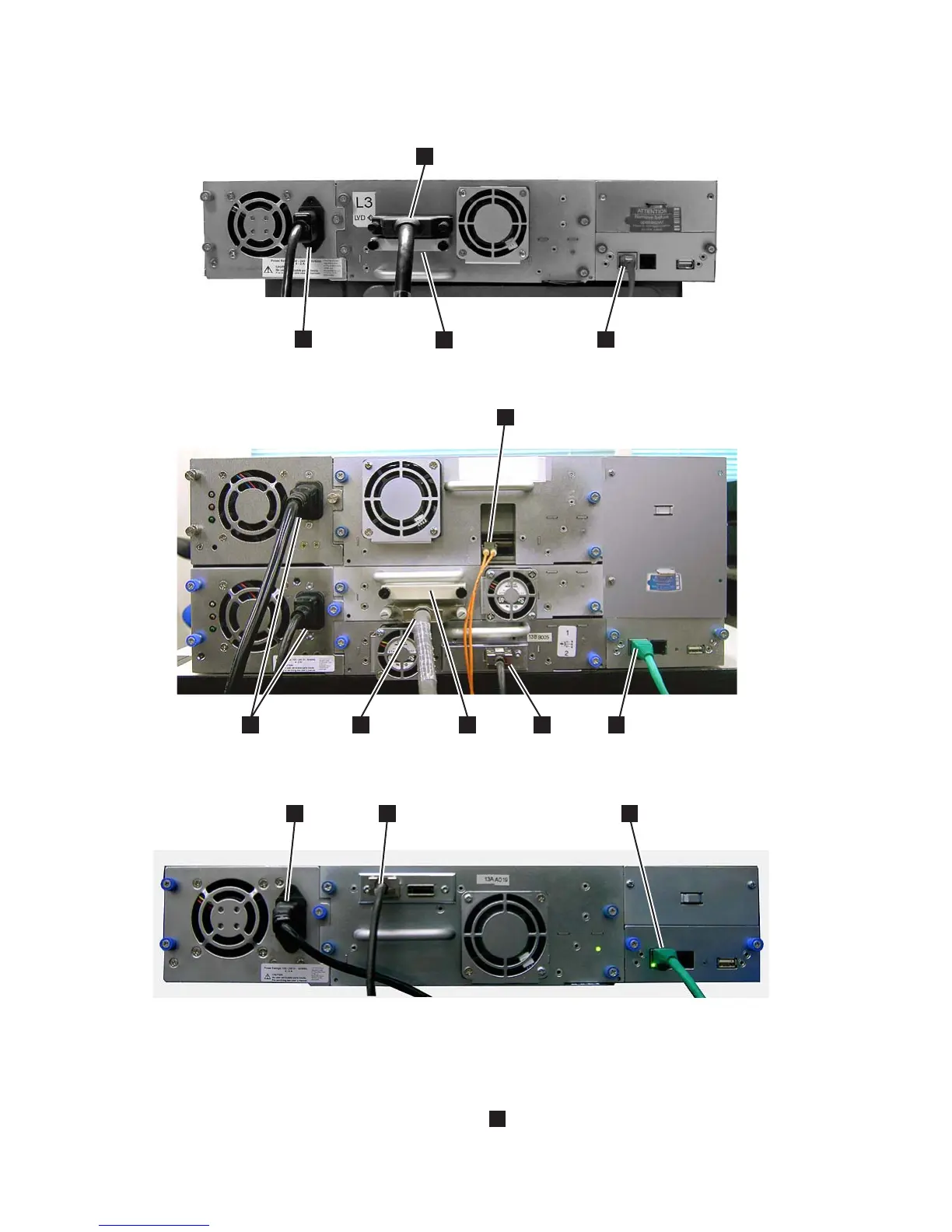

Figure 4-13. Attaching a SCSI host interface cable to the 2U library
a77ug101
1
3
4
2
5
6
Figure 4-14. Attaching host interface cables to the 4U library. THE CONFIGURATION SHOWN IN THIS FIGURE IS
USED FOR EXAMPLE ONLY. THIS CONFIGURATION IS NOT SUPPORTED.
a77ug13
4
1
3
2
Figure 4-15. Attaching a SAS interface cable to the 2U library
4-12 Dell PowerVault TL2000 Tape Library and TL4000 Tape Library User's Guide
