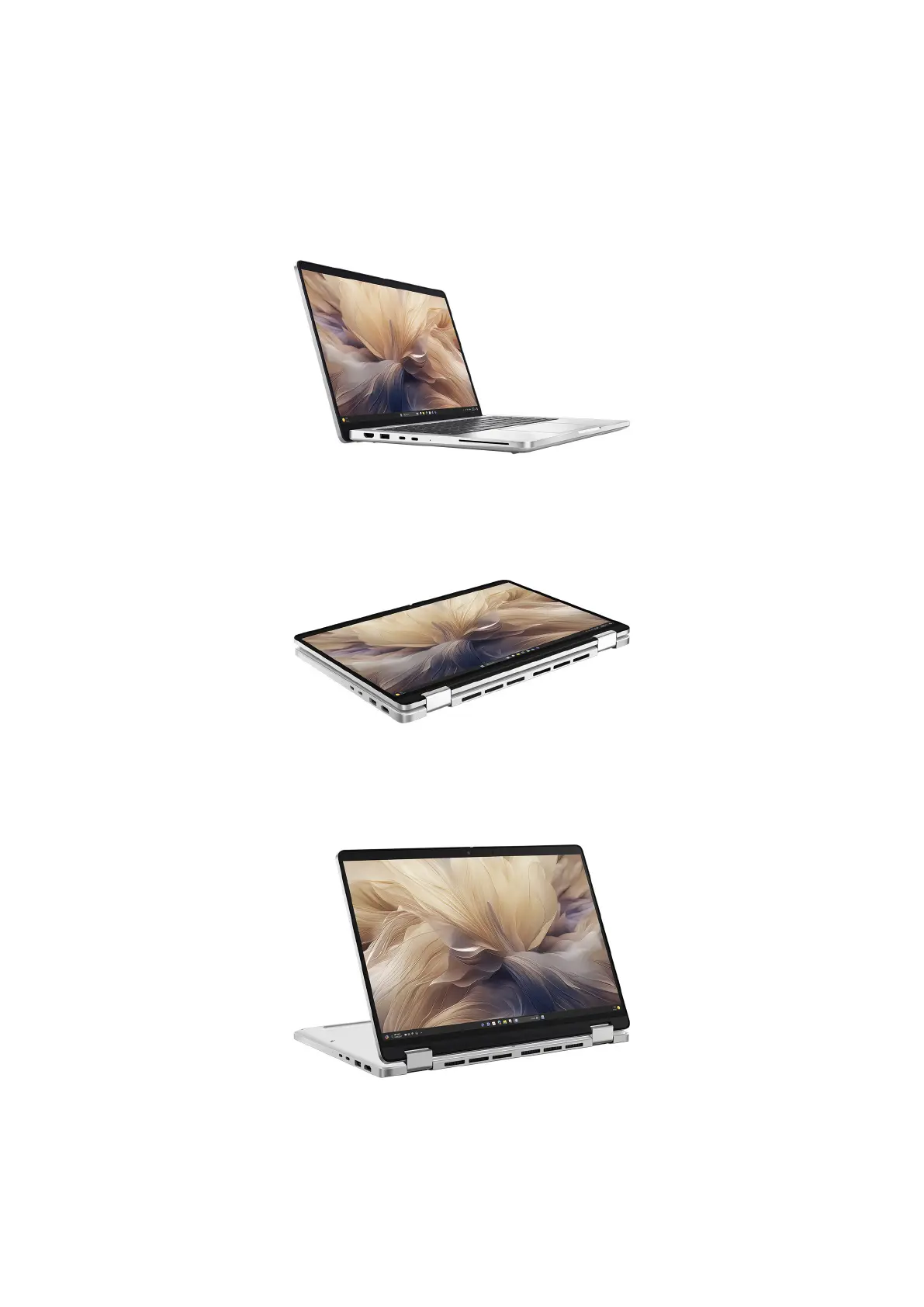

Modes

The following modes are supported only on Dell Pro Plus 14 2-in-1 configuration.

Notebook

Figure 6. Notebook mode

Tablet

Figure 7. Tablet Mode

Stand

Figure 8. Stand mode
