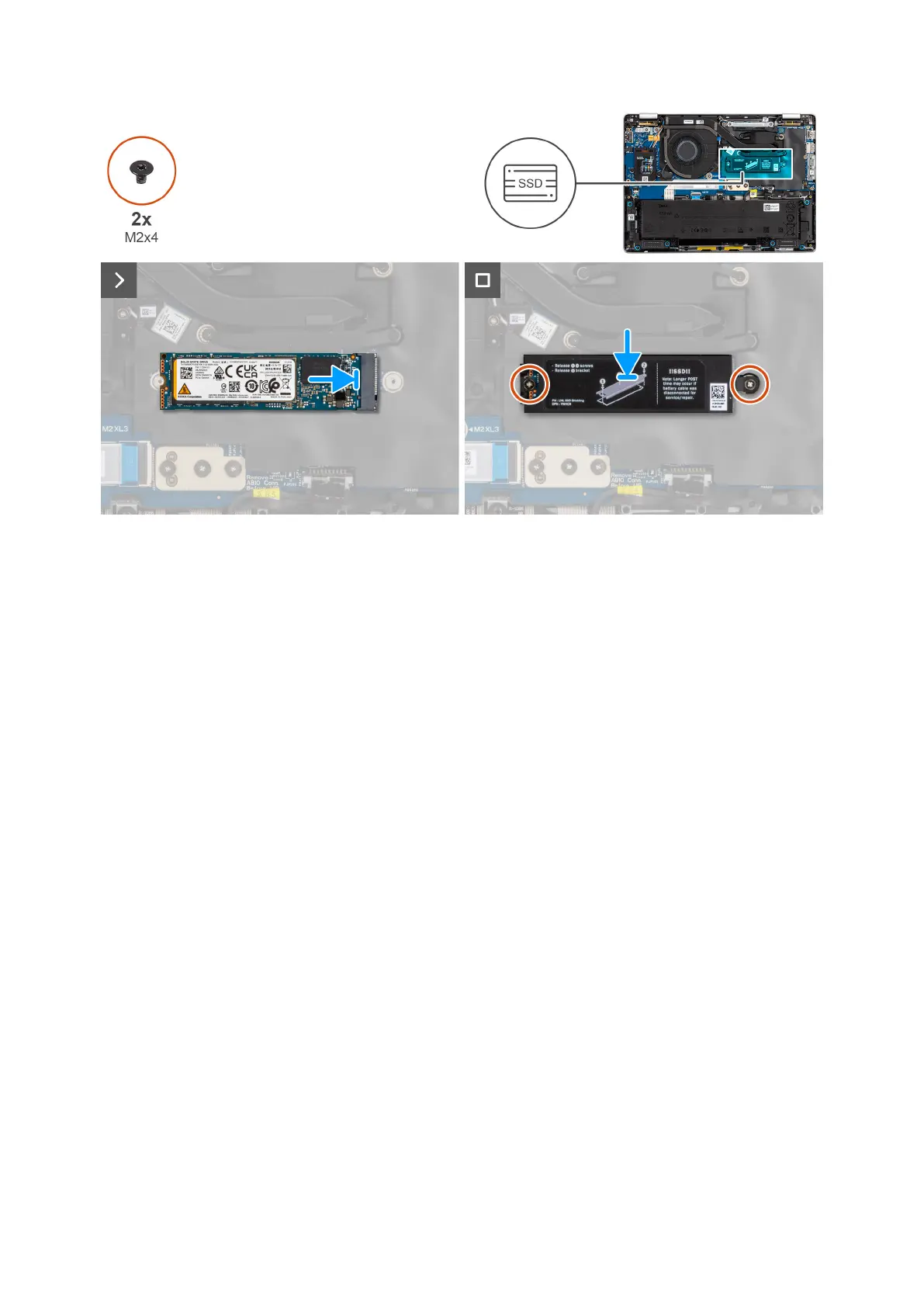

Figure 33. Installing the M.2 2280 SSD
Steps
1. Align the notch on the M.2 2280 SSD with the tab on the M.2 2280 SSD slot.
2. Place the SSD shielding cover over the M.2 2280 SSD and replace the two screws (M2x3) to secure it in place.
Next steps
1. Install the base cover.
2. Install the SIM card tray, if applicable.
3. Follow the procedure in after working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the sim-card tray, if applicable.
3. Remove the base cover.
About this task
The following image indicates the location of the main speakers and provides a visual representation of the removal procedure.
58
Removing and installing Customer Replaceable Units (CRUs)
