Dell Pro 14 Plus - Installing the SIM-Card Tray

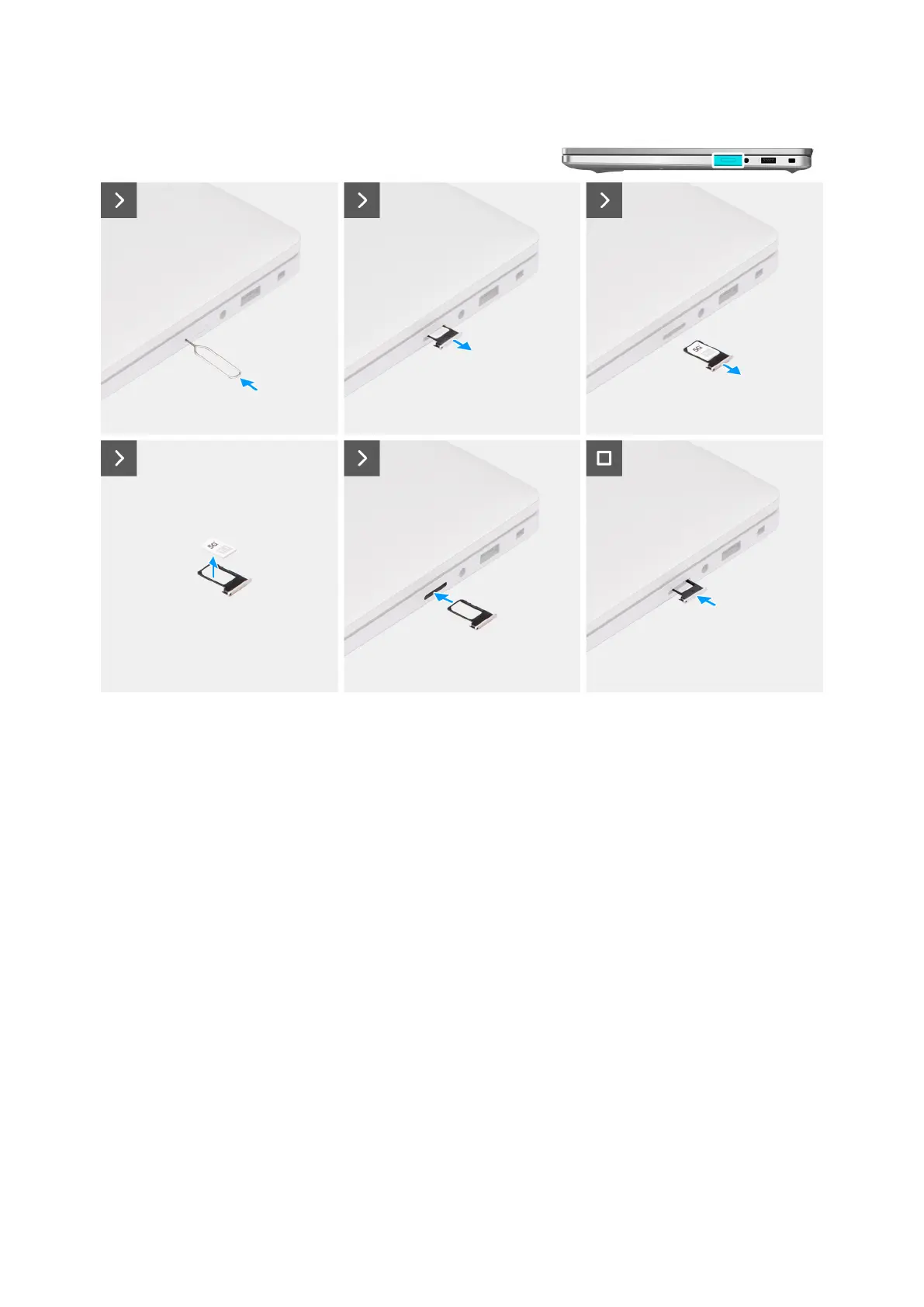

Figure 17. Removing the SIM-card tray
Steps
1. Insert a pin into the release hole to release the SIM-card tray.
2. Push the pin to disengage the lock, and eject the SIM-card tray.
3. Slide the SIM-card tray out of the slot on the computer.
4. Remove the SIM card from the SIM-card tray.
5. Slide and push the SIM-card tray back into the slot.
Installing the SIM-card tray
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the SIM-card tray and provides a visual representation of the installation
procedure.
