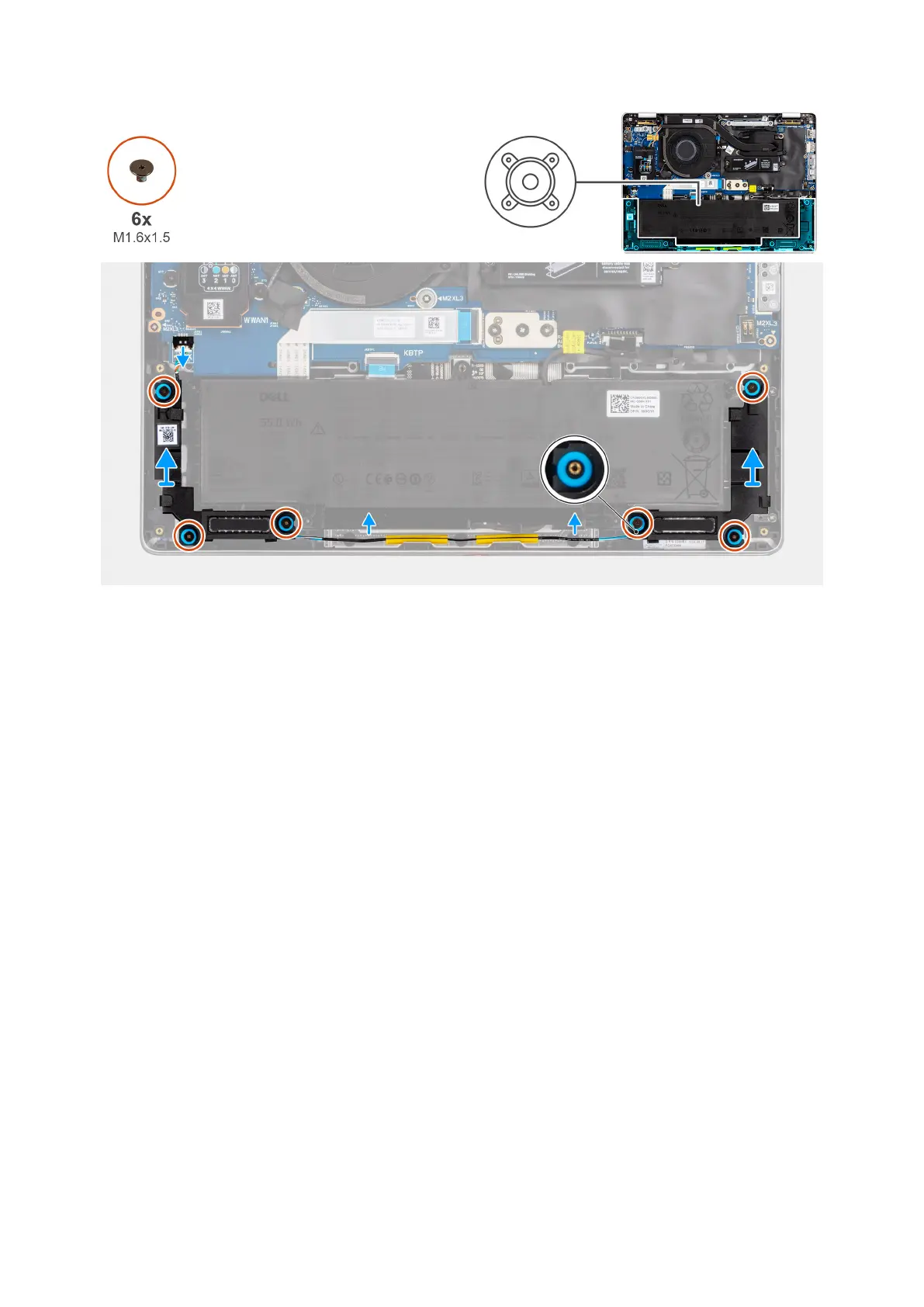

Figure 34. Removing the speakers
Steps
1. Disconnect the speaker cable from the I/O board.
2. Unroute the speaker cables from the routing guides on the bottom side of the palm-rest.
3. Remove the six screws (M1.6x1.5) that secure the speakers in place.
4. Release the speakers from the rubber grommets and lift the speakers off the computer.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the speakers and provides a visual representation of the installation procedure.
Removing and installing Customer Replaceable Units (CRUs)
59
