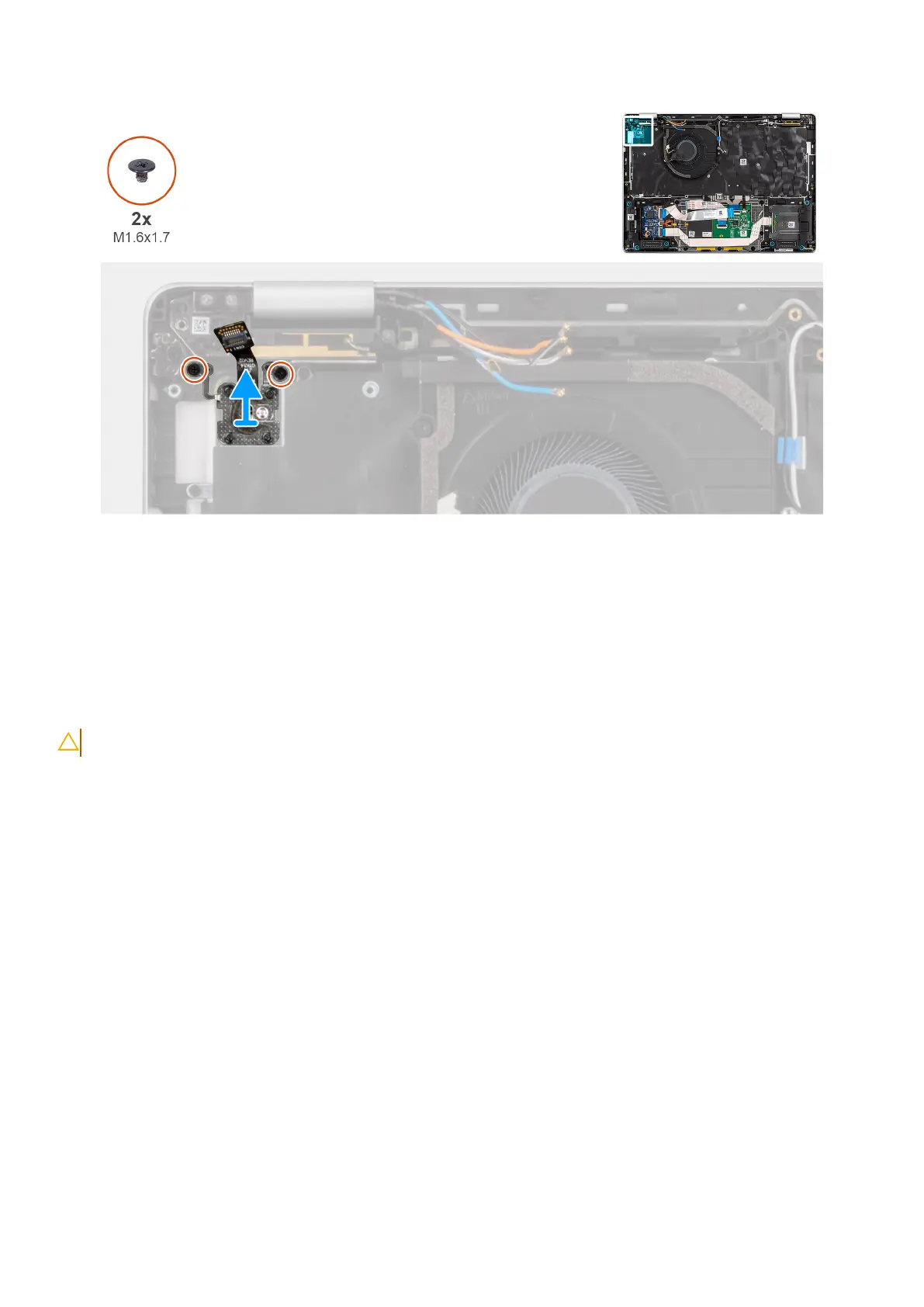

Figure 77. Remove the power button with fingerprint reader
Steps
1. Remove the two screws (M1.6x1.7) that secure the power button bracket in place.
2. Lift the power button bracket off the computer.
3. Disconnect the power button cable from the connector on the chassis.
Installing the power button with fingerprint reader
CAUTION: The information in this installation section is intended for authorized service technicians only.
About this task
The following image indicates the location of the power button with fingerprint reader and provides a visual representation of
the installation procedure.
110
Removing and installing Field Replaceable Units (FRUs)
