● Phillips screwdriver #0
● Phillips screwdriver #1
● Flat head slotted screwdriver (<4mm)
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type and the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary depending on the configuration ordered.

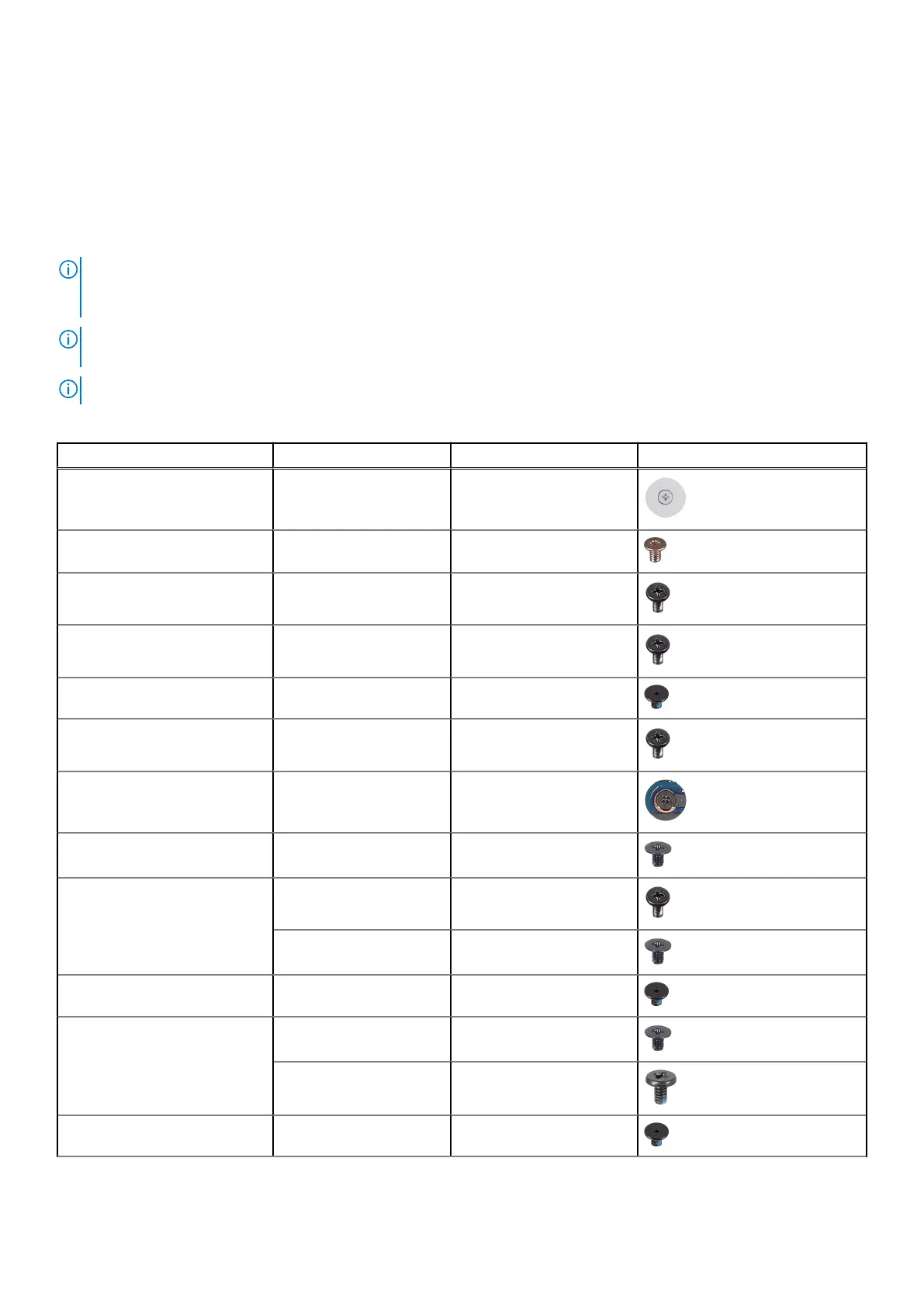

Table 27. Screw list
Component Screw type Quantity Screw image
Base cover Captive 8
Battery Captive 4
WWAN shielding cover M2x4
3
Solid state drive shielding cover M2x4
2
Speakers M1.6x1.5
6
Fan M2x4
2
Heatsink Captive
4
Display cable bracket M2x3
2
Display assembly
M2.5x4 4
M2x3
1
Display panel M1.6x1.4 4
Display hinge cap and hinge
assembly
M2x3
2
M2.5x3.5
4
MIPI camera M1.6x1.4 2
36 Working inside your computer
