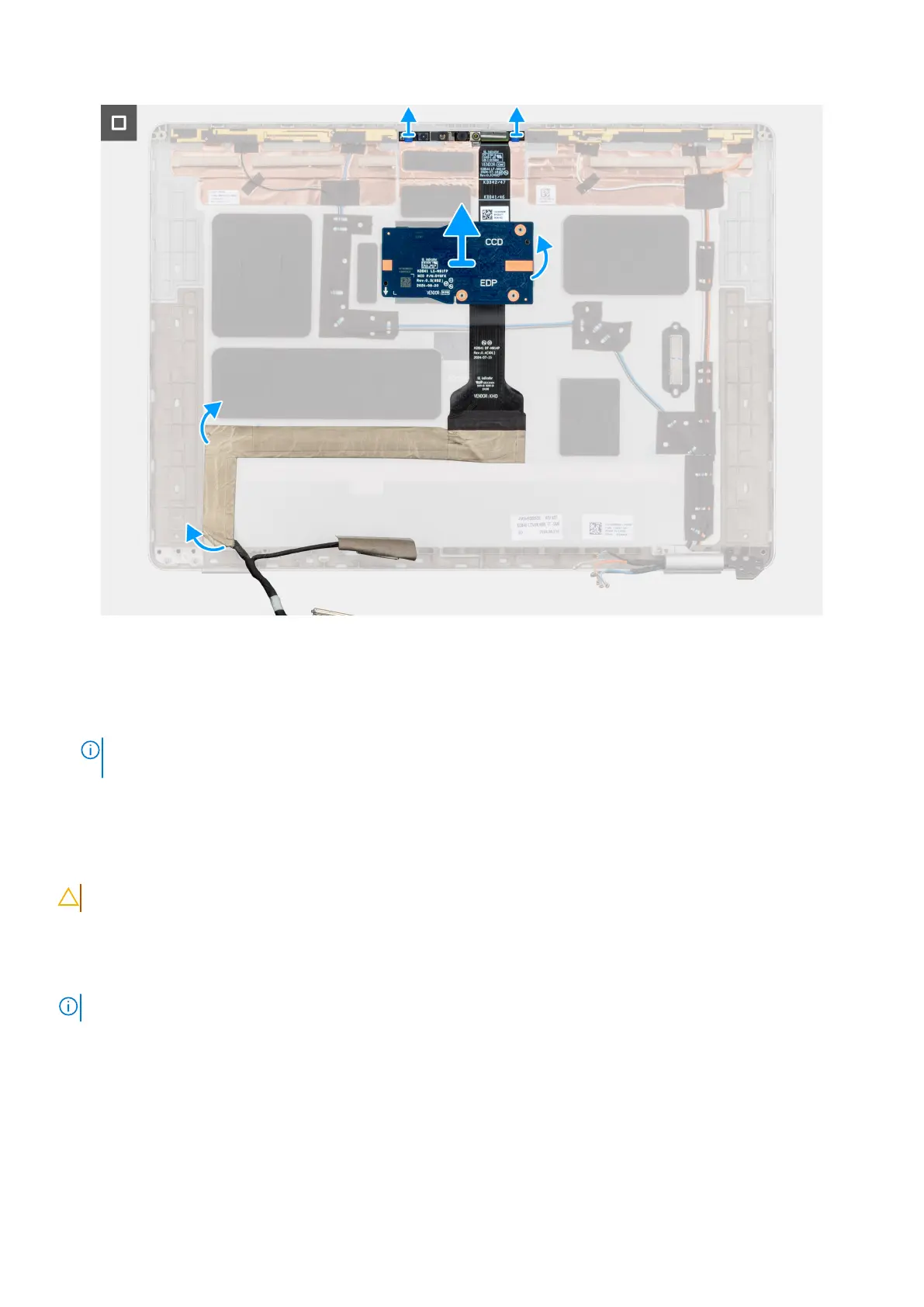

Figure 60. Removing the camera and display cable
Steps
1. Disconnect the display cable from the camera.
2. Pry the camera starting from the prying point at the bottom edge of the camera module.
NOTE:
While removing the IR/RGB camera module, pry up the module from the recess at its bottom side indicated by
an arrow and then slide along the bottom side to detach it from the display back cover.
3. Peel the display cable at the bottom and remove the camera and display cable from the display back cover.
Installing the camera and display cable
CAUTION: The information in this installation section is intended for authorized service technicians only.
About this task
The following images indicate the location of the camera and display cable and provide a visual representation of the installation
procedure.
NOTE: This procedure applies for only models that are shipped with an RGB or IR camera.
