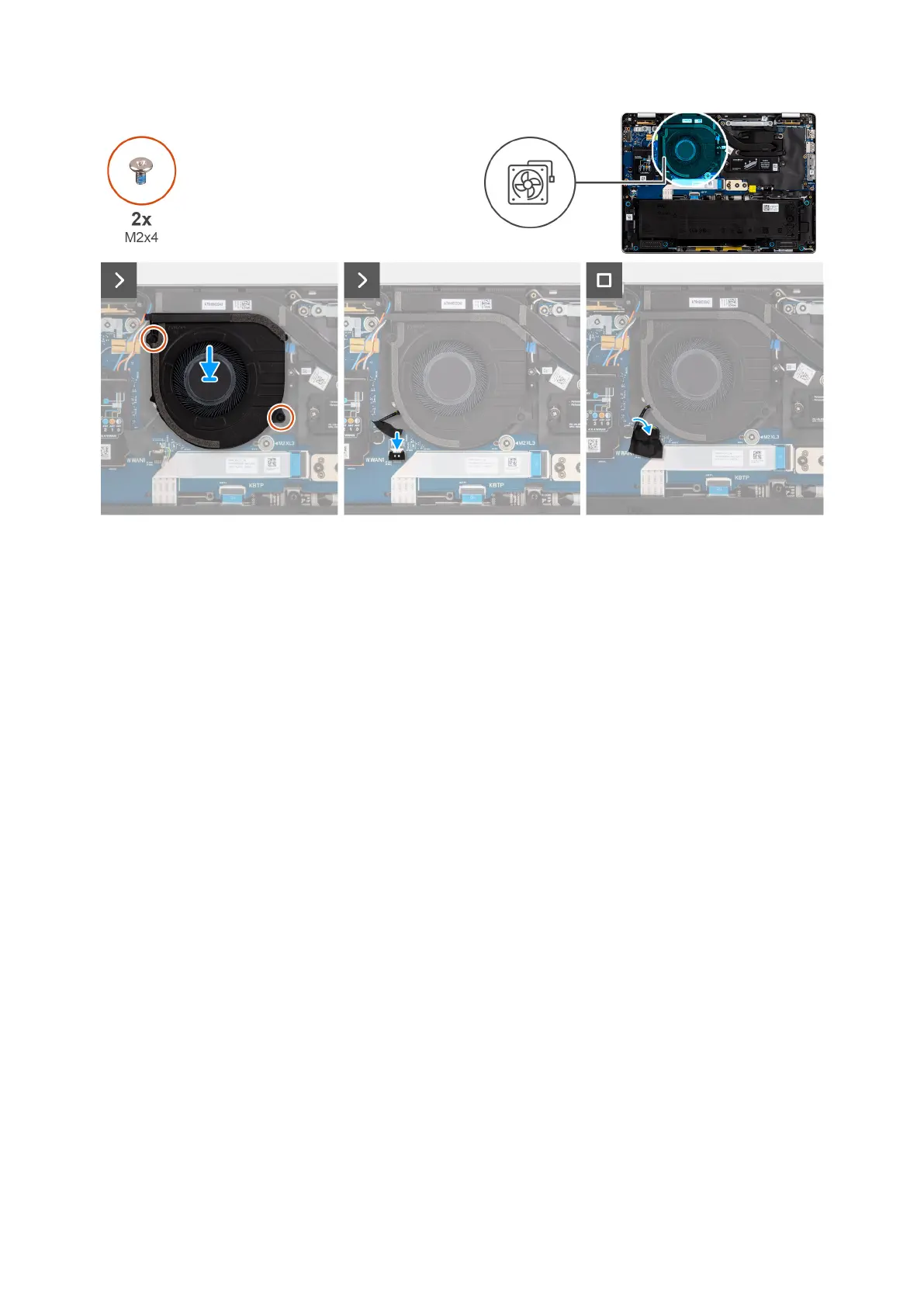

Figure 37. Intsalling the fan
Steps
1. Place the fan on the palm-rest assembly.
2. Align the screw holes on the fan to the screw holes on the palm-rest assembly.
3. Replace the two screws (M2x3) that secure the fan to the palm-rest assembly.
4. Connect the fan cable to the fan-cable connector on the I/O board.
Next steps
1. Install the base cover.
2. Install the SIM card tray, if applicable.
3. Follow the procedure in after working inside your computer.
62
Removing and installing Customer Replaceable Units (CRUs)
