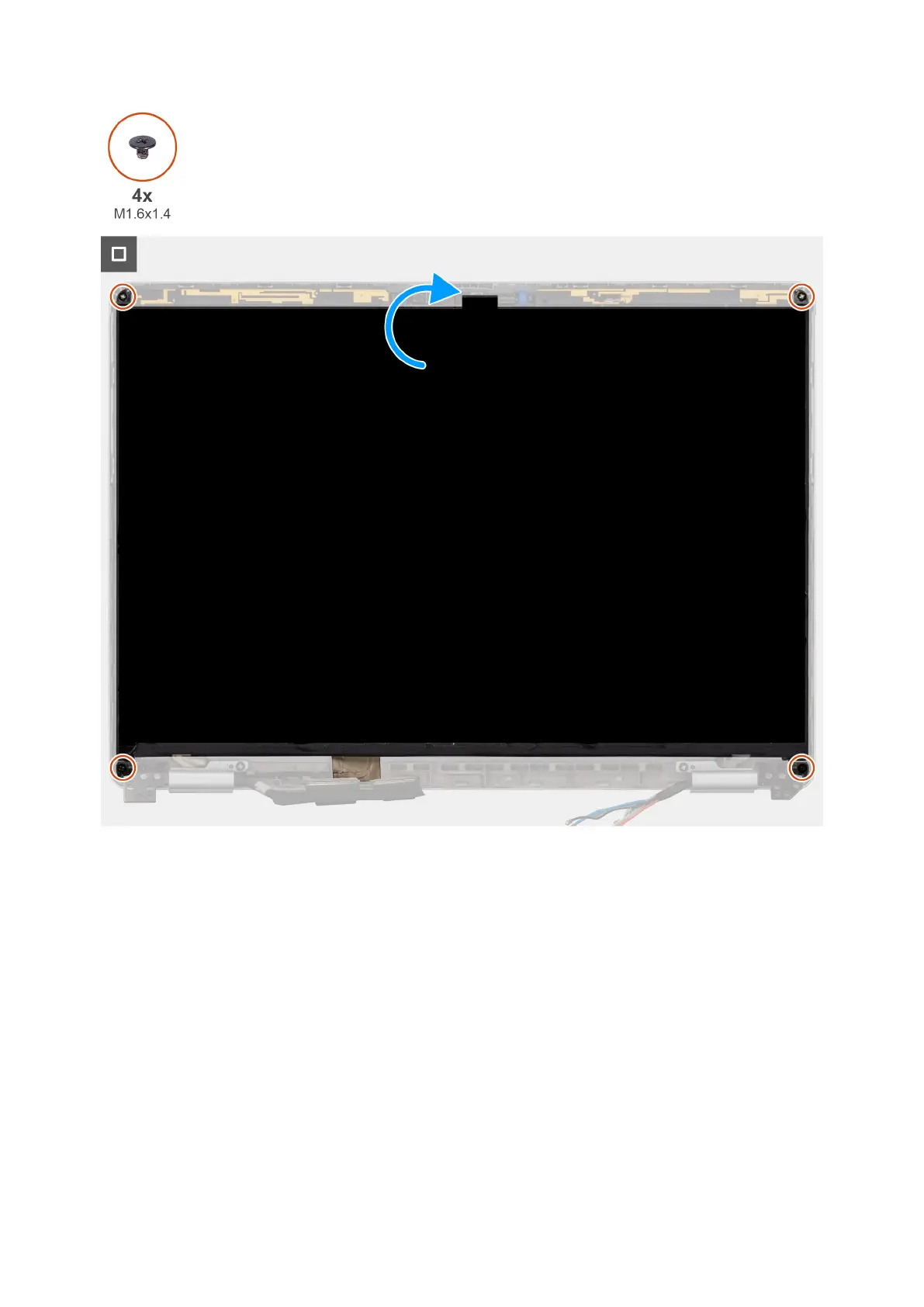

Figure 53. Installing the display panel
Steps
1. Connect the display cable to the connector on the back cover of the display assembly.
2. Peel back the tape over the display cable to secure it to the back cover.
3. Flip over the display panel and replace the four screws (M1.6x1.4) to secure it in place.
Next steps
1. Install the display bezel.
2. Install the display assembly.
3. Install the base cover.
4. Install the SIM card tray, if required.
5. Follow the procedure in after working inside your computer.
