The following images indicate the location of the smart card reader and provide a visual representation of the installation
procedure.

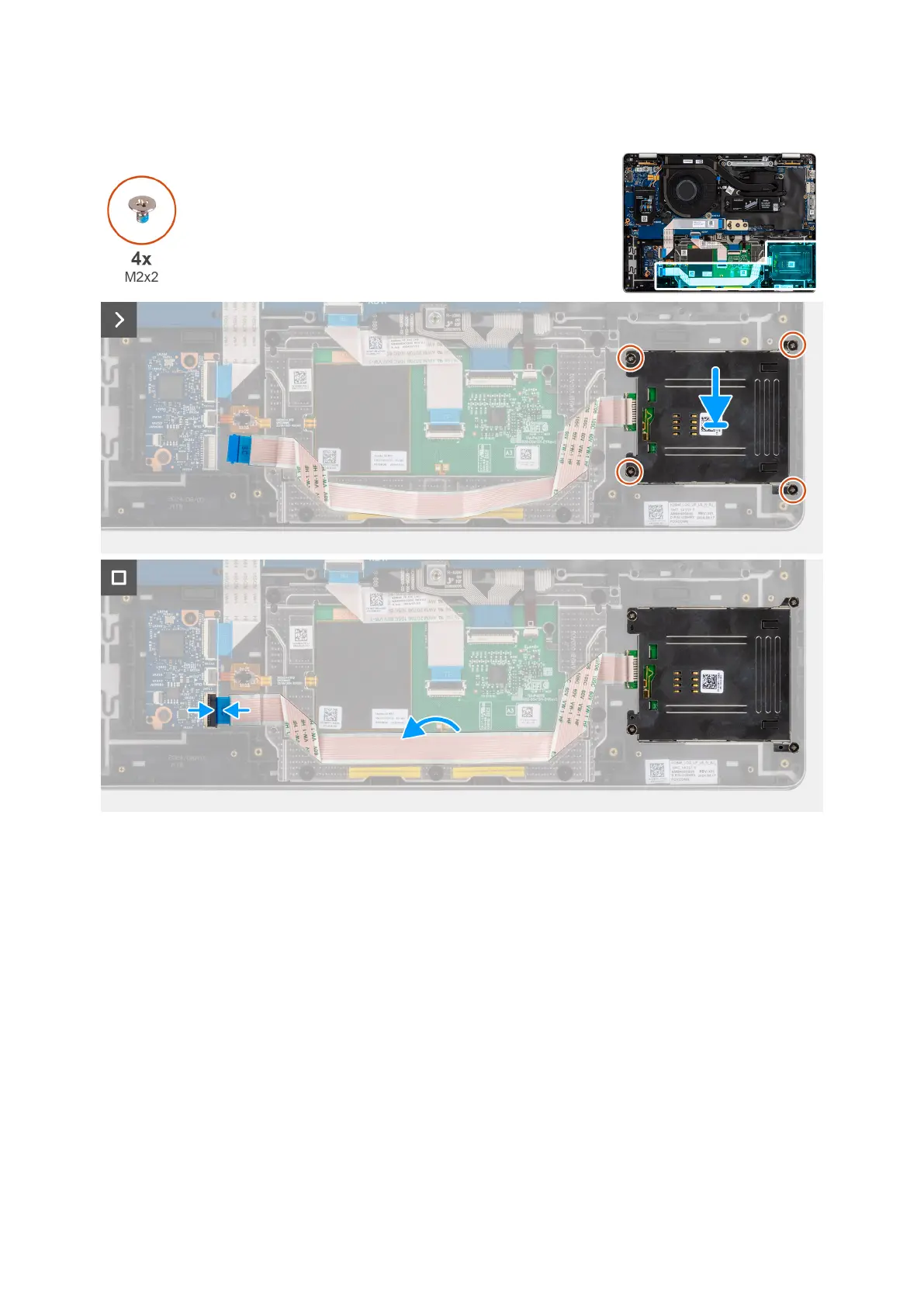

Figure 64. Installing the smartcard reader
Steps
1. Align and place the smart card reader on the palm-rest assembly.
2. Replace the four screws (M2x2) that secure the smart card reader to the palm-rest and keyboard assembly.
3. Connect the smartcard reader flexible flat cable to the system board.
Next steps
1. Install the speakers.
2. Install the battery.
3. Install the base cover.
4. Install the SIM card tray, if applicable.
5. Follow the procedure in after working inside your computer.
Removing and installing Field Replaceable Units (FRUs)
95
