BHT-1500B series
[7] Communication test
Use the following procedure to perform a communication test.
1. Select “7: COMMUNICATION” at the TEST menu and then press the
ENT key.
The TEST COMMUNICATION screen shown on the right is displayed.
“1: COM1”: Performs an infrared communication test.
Refer to the following section for details of the above items.
Press and hold the BS/C key to return to the TEST menu.
 Infrared Communication Test

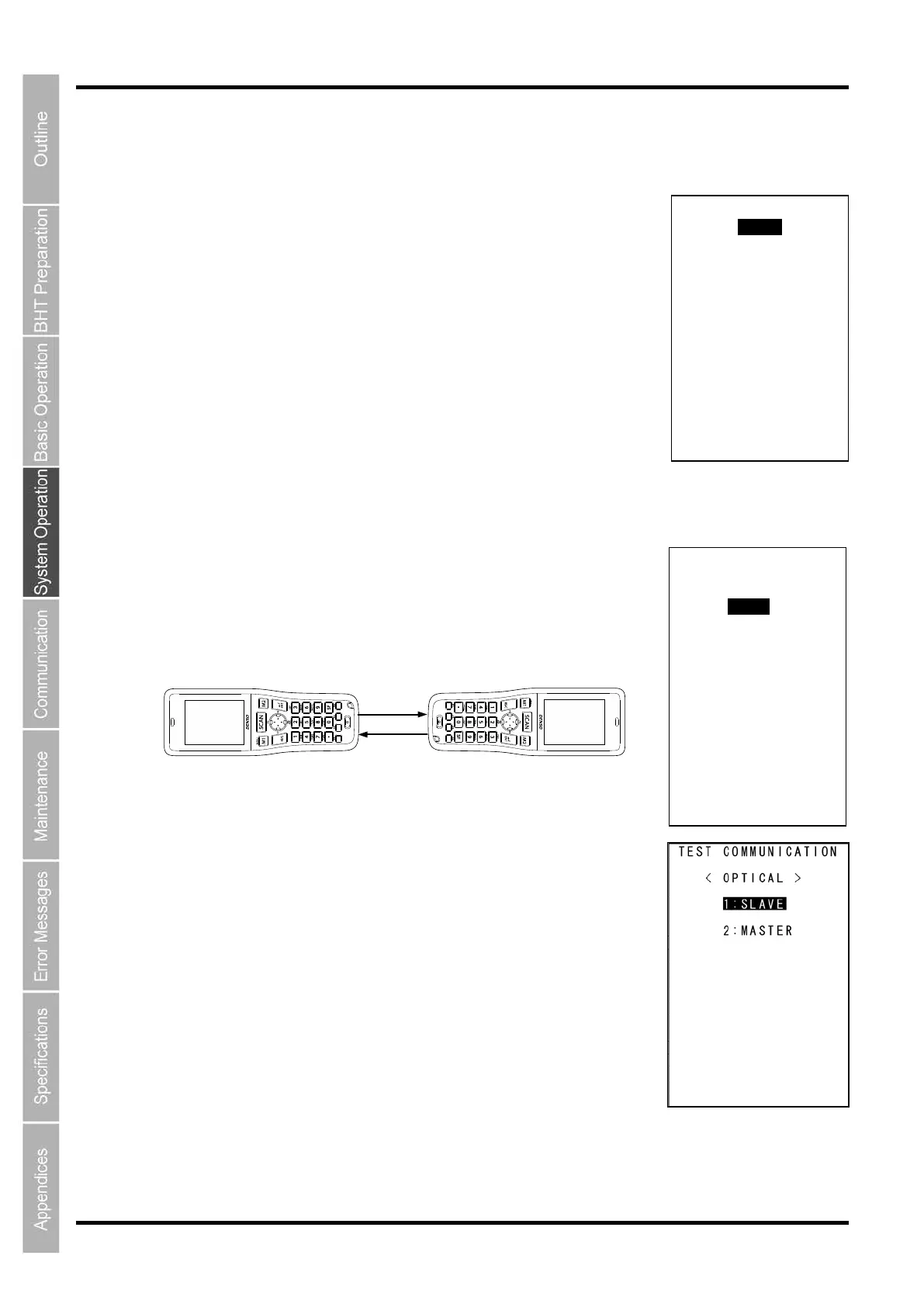

1. Arrange two BHTs, one as a master station and the other as a slave
station (to be tested) with their IrDA interface ports facing each other
as illustrated below.
This test involves transmitting data from the test BHT and the master BHT
returning the data to the test BHT.
2. Select “1: COM1” at the TEST menu, and select ”1:IrDA” at the
TEST COMMUNICATION menu.
The TEST COMMUNICATION screen on the right is displayed.
TEST COMMUNICATION
1：COM1
TEST COMMUNICATION
< COM1 >
1：IrDA
2：Cradle
Master BHT
Data
Slave BHT
(to be tested)
Max. 15 cm
