1.1 System Configuration
This section describes the hardware and software required for the code data collection system using the BHT.
Hardware Configuration 1.1.1
In addition to the BHT, the following hardware and software are required for the code data collection
system using the BHT.
Please note that certain components of the required hardware will differ depending on the type of
communication used.
 Host computer
 CU-A*1-15 Series (option): Optical communication unit
 Connection cable (option): Used to connect the CU and host computer.

Bluetooth
®
compatible device (option)

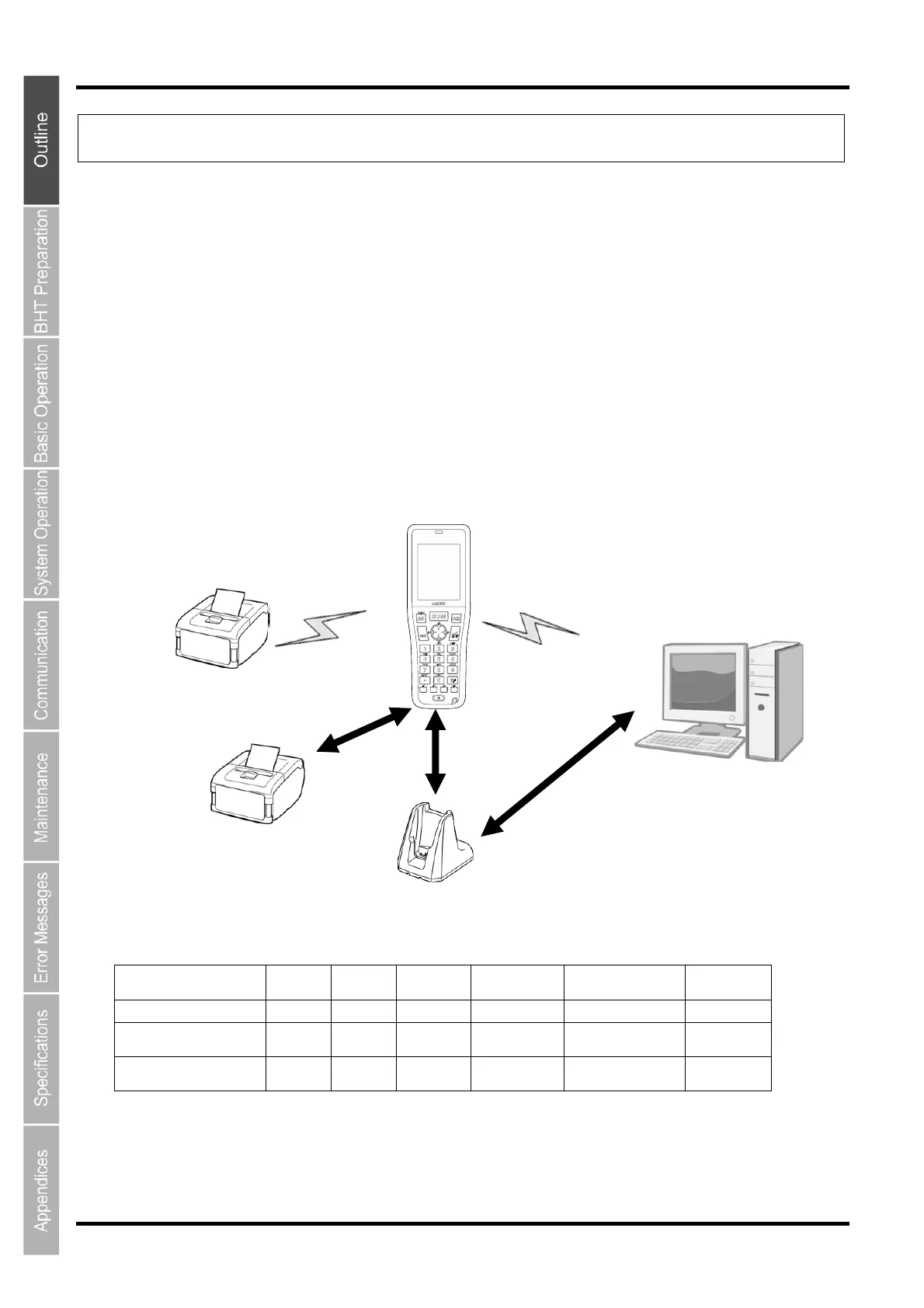

● Devices required for system configuration
Host
computer
BHT CU
Wireless LAN
access point
Bluetooth® / /Irda
compatible device
Ref. Page
(1) Infrared communication
–  – –

Page 33
(2) Cradle
communication
  – –
–
Page 34
(3) Bluetooth
®
wireless
communication
 * 
– –

Page 35
* When the host computer is equipped with the Bluetooth
®
wireless communication device.
CU (Option)
(2) Cradle
communication
BHT
Connection cable
(Option)
Host computer
(Option)
(1) Infrared communication
(3) Bluetooth
®
wireless
communication
(3) Bluetooth
®
wireless
conmunication
Bluetooth
®
printer (Option)
IrDA printer (Option)
