User Manual DEV 1951
54 Copyright DEV Systemtechnik GmbH 2004-2017
In this application, the drop down list "Signal Type" permits the selection of
"RF Level" only.

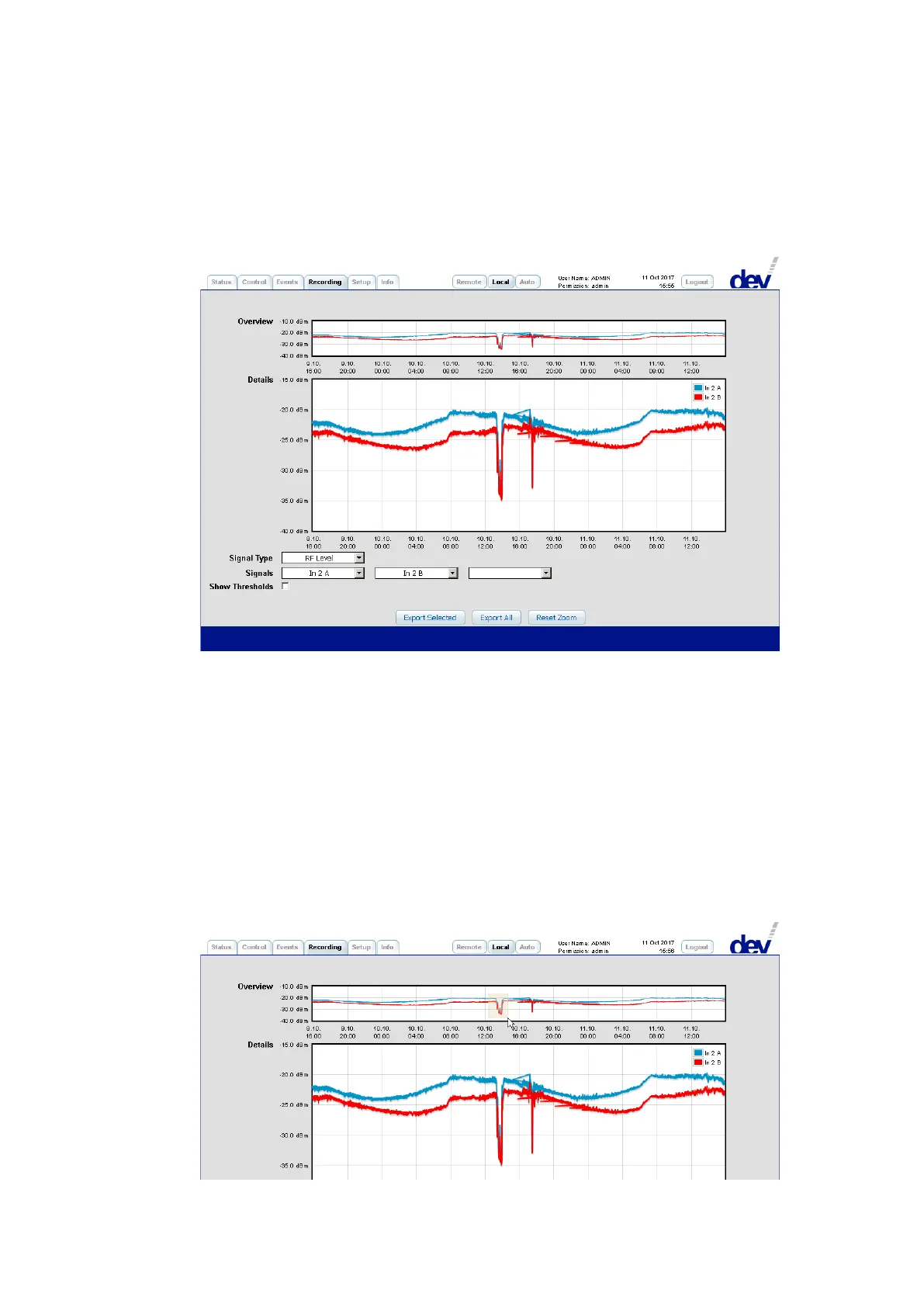

After selecting one to three "Signals" via the three drop down lists, the recorded
data shows up in both diagrams:
Note:
The recording interval and thus the recording duration can be altered, please
refer to chapter 5.5.7.3.1. The data representation initially always comprises
the recorded data for the selected items, i.e. it is stretched if the full recording
duration is not reached yet, and the graphs indicate via gaps if the device was
turned off for a span of time.
The checkbox labeled "Show Thresholds" enables the display of the related
present threshold for the selected signals. If checked, each threshold is shown
as a separate horizontal line with an individual label.
It is possible to magnify the data by drawing a zoom window in either (!) diagram,
i.e. by clicking and holding the left mouse button while pulling the mouse over the
interesting area:
