Virtual Private Networks (VPN) Generic Routing Encapsulation (GRE)

Digi Connect IT® 16/48 User Guide

311

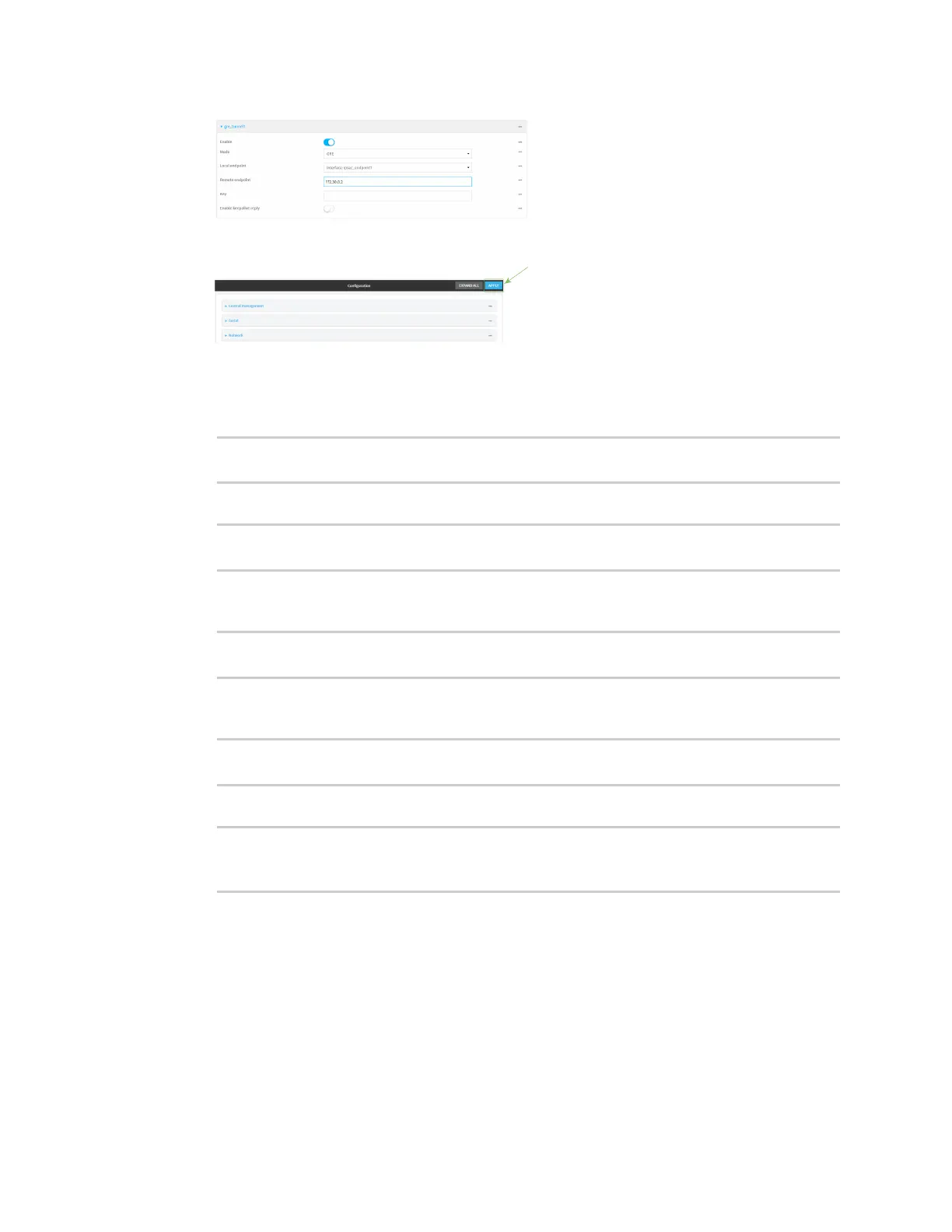

5. Click Apply to save the configuration and apply the change.

Command line

1. At the command line, type config to enter configuration mode:

> config

(config)>

2. Add a GRE tunnel named gre_tunnel1:

(config)> add vpn iptunnel gre_tunnel1

(config vpn iptunnel gre_tunnel1)>

3. Set the local endpoint to the IPsec endpoint interface created in Task two

(/network/interface/ipsec_endpoint1):

(config vpn iptunnel gre_tunnel1)> local /network/interface/ipsec_endpoint1

(config vpn iptunnel gre_tunnel1)>

4. Set the remote endpoint to the IP address of the GRE tunnel on Connect IT 16/48-2,

172.30.0.2:

(config vpn iptunnel gre_tunnel1)> remote 172.30.0.2

(config vpn iptunnel gre_tunnel1)>

5. Save the configuration and apply the change:

(config vpn iptunnel gre_tunnel1)> save

Configuration saved.
