Virtual Private Networks (VPN) Generic Routing Encapsulation (GRE)
Digi Connect IT® 16/48 User Guide
318
Command line
1. At the command line, type config to enter configuration mode:
> config
(config)>
2. Add a GRE tunnel named gre_tunnel2:
(config)> add vpn iptunnel gre_tunnel2
(config vpn iptunnel gre_tunnel2)>
3. Set the local endpoint to the IPsec endpoint interface created in Task two
(/network/interface/ipsec_endpoint2):
(config vpn iptunnel gre_tunnel2)> local /network/interface/ipsec_endpoint2
(config vpn iptunnel gre_tunnel2)>
4. Set the remote endpoint to the IP address of the GRE tunnel on Connect IT 16/48-1,
172.30.0.1:
(config vpn iptunnel gre_tunnel2)> remote 172.30.0.1
(config vpn iptunnel gre_tunnel2)>
5. Save the configuration and apply the change:
(config vpn iptunnel gre_tunnel2)> save
Configuration saved.
>
Task four: Create an interface for the GRE tunnel device

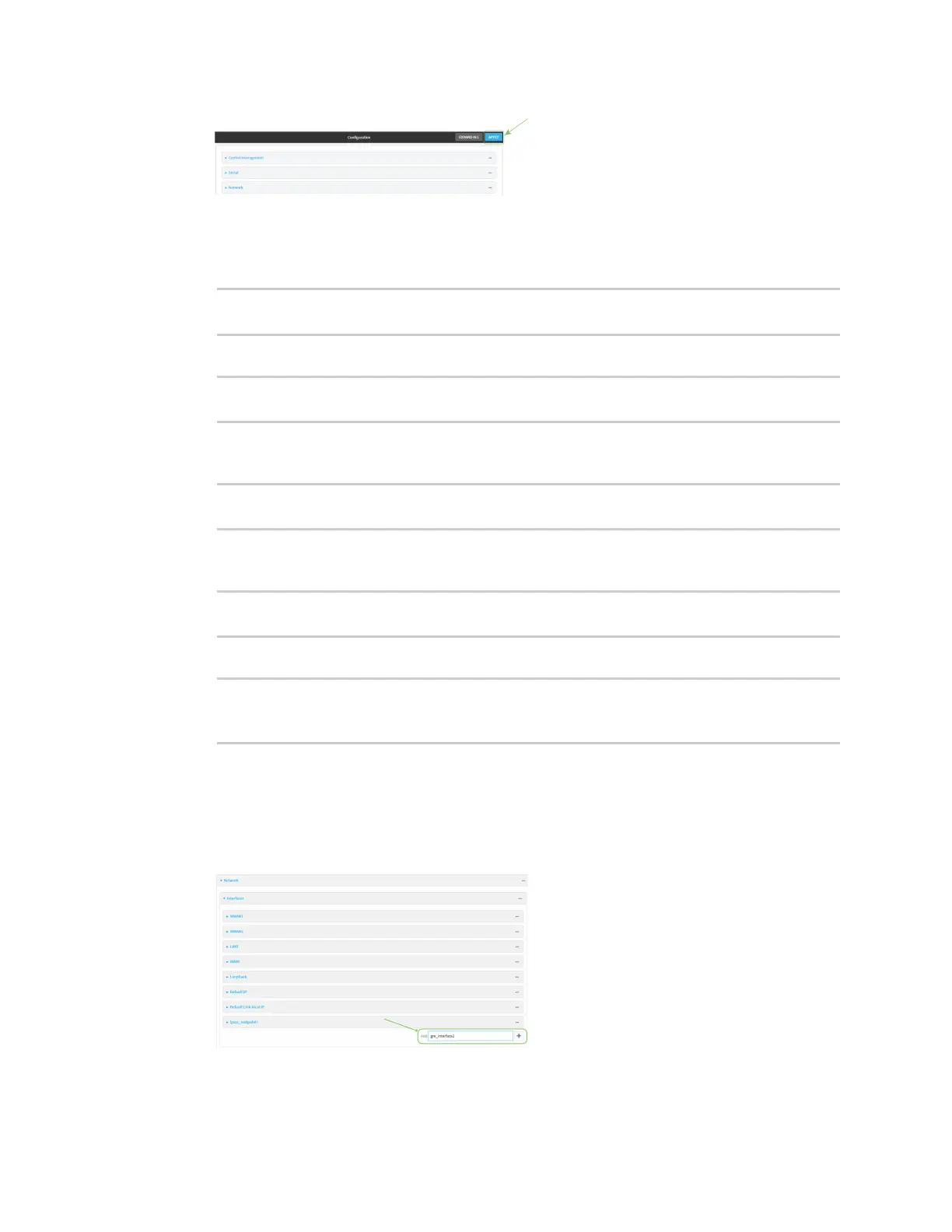

WebUI
1. Click Network > Interfaces.
2. For Add Interface, type gre_interface2 and click .
3. For Zone, select Internal.
