Virtual Private Networks (VPN) Generic Routing Encapsulation (GRE)

Digi Connect IT® 16/48 User Guide

319

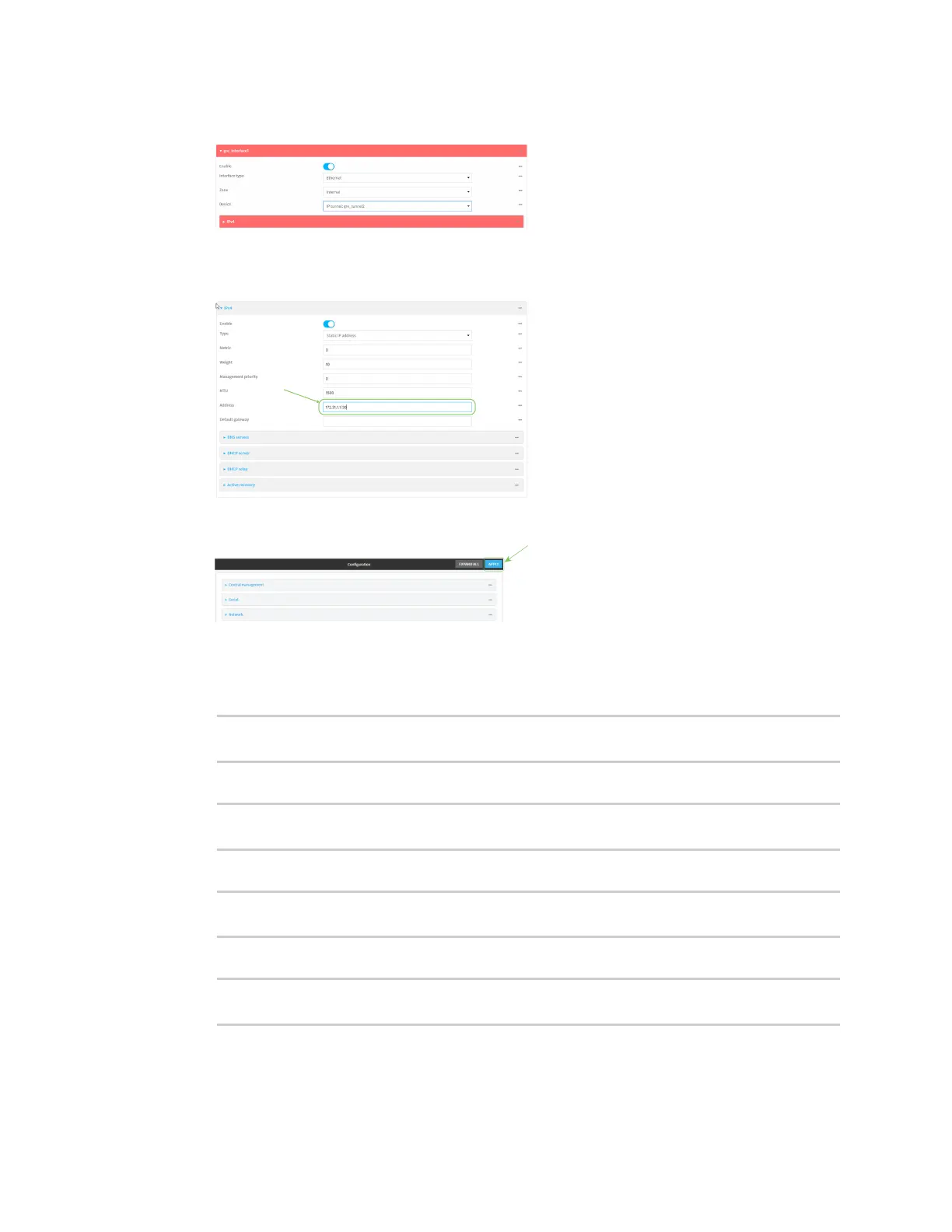

4. For Device, select the GRE tunnel created in Task three (IP tunnel: gre_tunnel2).

5. Click to expand IPv4.

6. For Address, type 172.31.1.1/30 for a virtual IP address on the GRE tunnel.

7. Click Apply to save the configuration and apply the change.

Command line

1. At the command line, type config to enter configuration mode:

> config

(config)>

2. Add an interface named gre_interface2:

(config)> add network interface gre_interface2

(config network interface gre_interface2)>

3. Set the zone to internal:

(config network interface gre_interface2)> zone internal

(config network interface gre_interface2)>

4. Set the device to the GRE tunnel created in Task three (/vpn/iptunnel/gre_tunnel2):

(config network interface gre_interface2)> device /vpn/iptunnel/gre_tunnel2

(config network interface gre_interface2)>
