Interfaces Virtual LANs (VLANs)
IX30 User Guide
198
Create a VLAN using switchport mode
Required configuration items
n
Device to be assigned to the VLAN.
n
The VLANID. The TCP header uses the VLAN ID to identify the destination VLAN for the packet.
To create a VLAN using switchport mode:
Web
1. Log into Digi Remote Manager, or log into the local Web UI as a user with full Admin access
rights.
2. Access the device configuration:
Remote Manager:
a. Locate your device as described in Use Digi Remote Manager to view and manage your
device.
b. Click the Device ID.
c. Click Settings.
d. Click to expand Config.
Local Web UI:

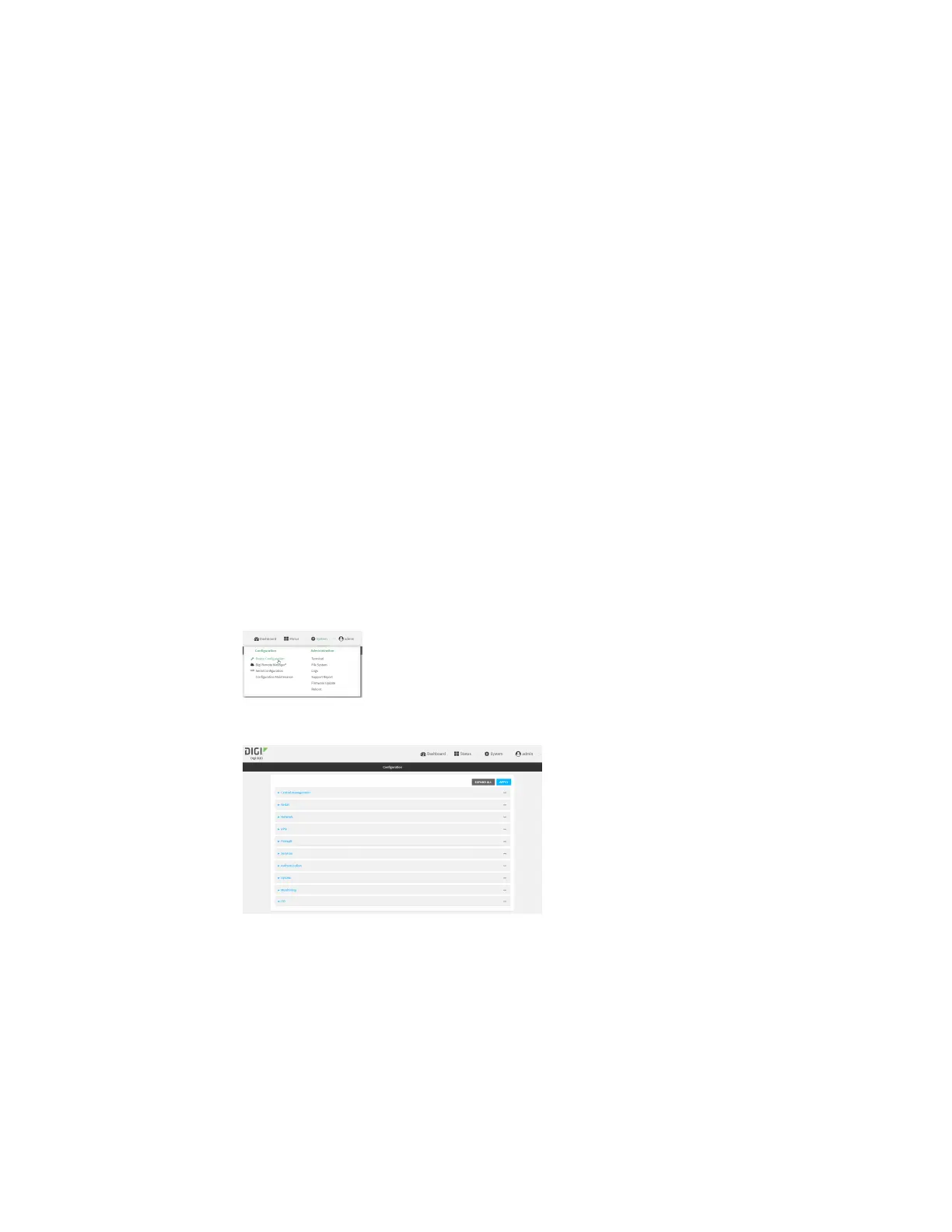

a. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
3. Click Network > Bridges.
4. For Add Bridge, type a name for the bridge and click .
5. Bridges are enabled by default. To disable, toggle off Enable.
6. For Bridge type, select Switchport.
7. (Optional) Enable Spanning Tree Protocol (STP).
STP is used when using multiple LANs on the same device, to prevent bridge loops and other
routing conflicts.
