Digi IX30 User Manual

Digital Input/Output and Analog Input Digital input/output and analog input connections
IX30 User Guide
823
Digital input/output and analog input connections
The IX30 has an input/output connector with four digital input/output connections, and four analog
input connections.
I/O connector pin assignments

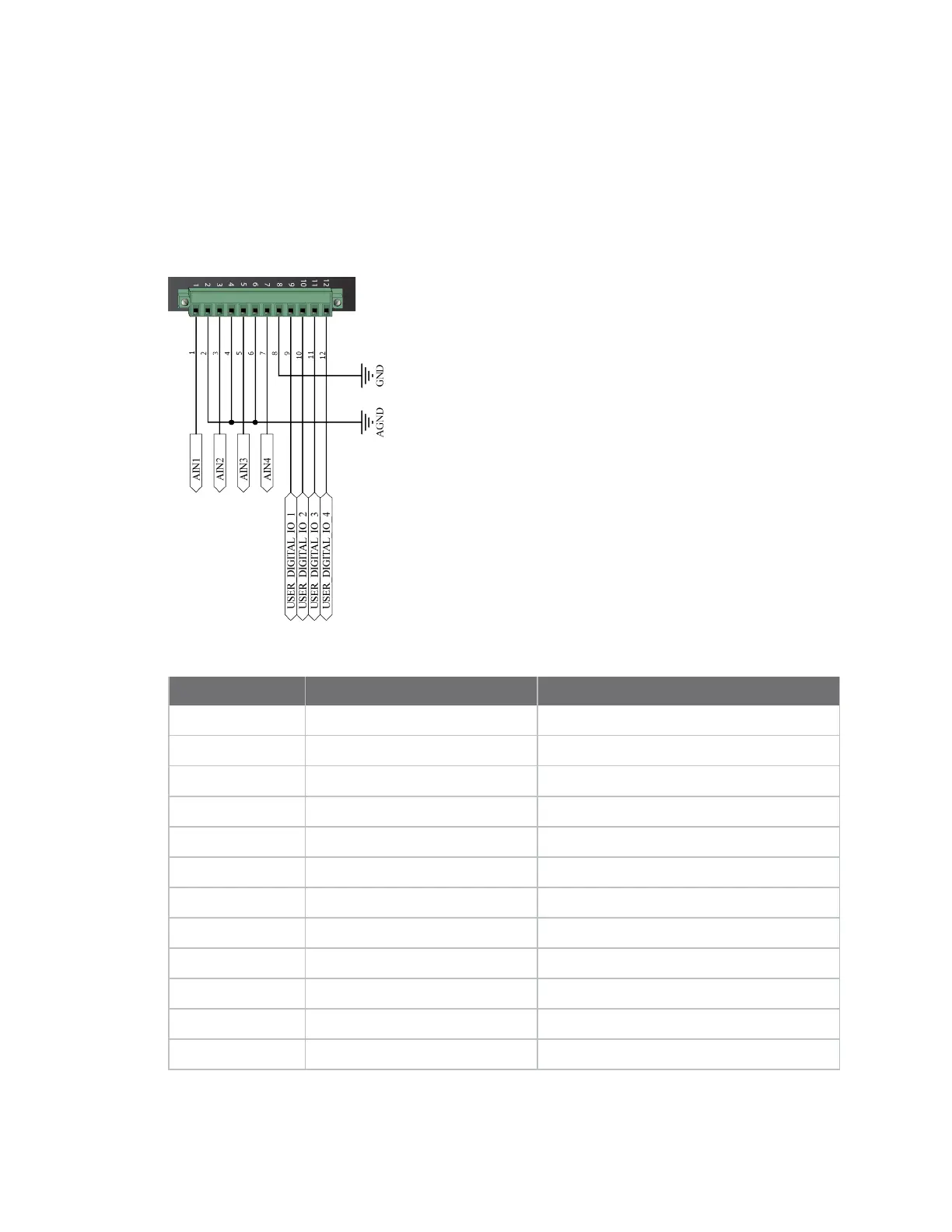

The figure and table show the I/O connector, pin assignments, and the signals for each pin.
Pin# Symbol Description
1 AIN1 Analog Input 1
2 AGND Analog Return
3 AIN2 Analog Input 2
4 AGND Analog Return
5 AIN3 Analog Input 3
6
AGND Analog Return
7
AIN4 Analog Input 4
8 GND Digital Ground
9
DIO1 Digital I/O 1
10
DIO2 Digital I/O 2
11
DIO3 Digital I/O 3
12
DIO4 Digital I/O 4

Digi IX30 Specifications

General

Category	Network Router
Model	IX30
Serial Ports	1 x RS-232
Operating Temperature	-40° C to 70° C
Connectivity	Ethernet
USB Ports	1 x USB 2.0
Cellular Interface	4G LTE Cat 4
Wi-Fi	802.11 a/b/g/n/ac
SIM Slots	1
Processor	ARM Cortex-A9
Memory	1 GB RAM
