3. Set the signalling mode:
(config)> serial port1 signal_mode value
(config)>
where value is one of:
n
rs-232
n
rs-422
n
rs-485
If this is the end device along a cabled RS-485 daisy chain and termination resistors are
recommended, enable an internal electrical termination:
(config)> serial port1 termination true
(config)>
4. Save the configuration and apply the change:
(config)> save
Configuration saved.
>
5. Type exit to exit the Admin CLI.
Depending on your device configuration, you may be presented with an Access selection
menu. Type quit to disconnect from the device.

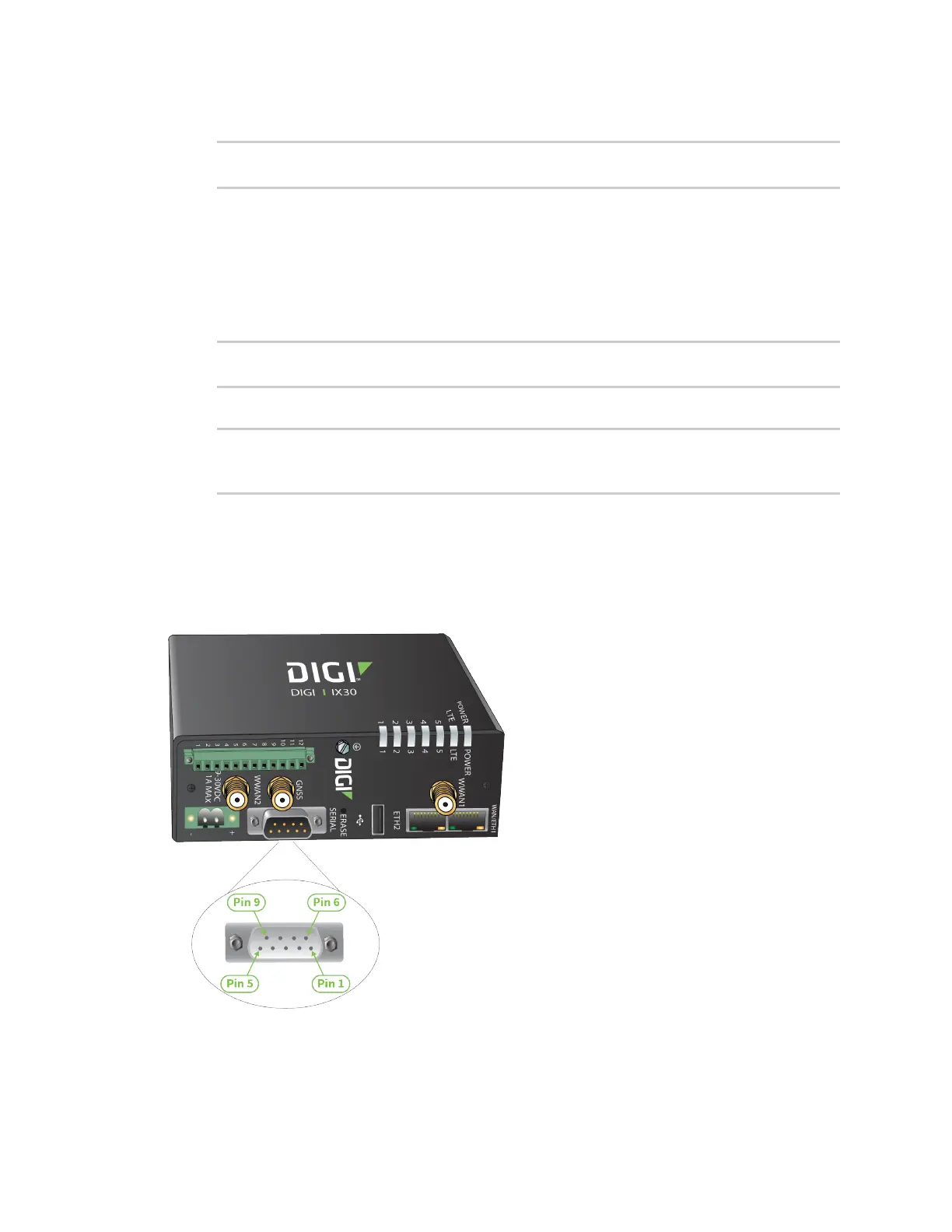

IX30 serial pinouts

Digi IX30 Specifications

General

Category	Network Router
Model	IX30
Serial Ports	1 x RS-232
Operating Temperature	-40° C to 70° C
Connectivity	Ethernet
USB Ports	1 x USB 2.0
Cellular Interface	4G LTE Cat 4
Wi-Fi	802.11 a/b/g/n/ac
SIM Slots	1
Processor	ARM Cortex-A9
Memory	1 GB RAM
