Digi IX30 User Manual

Monitoring intelliFlow
IX30 User Guide
897

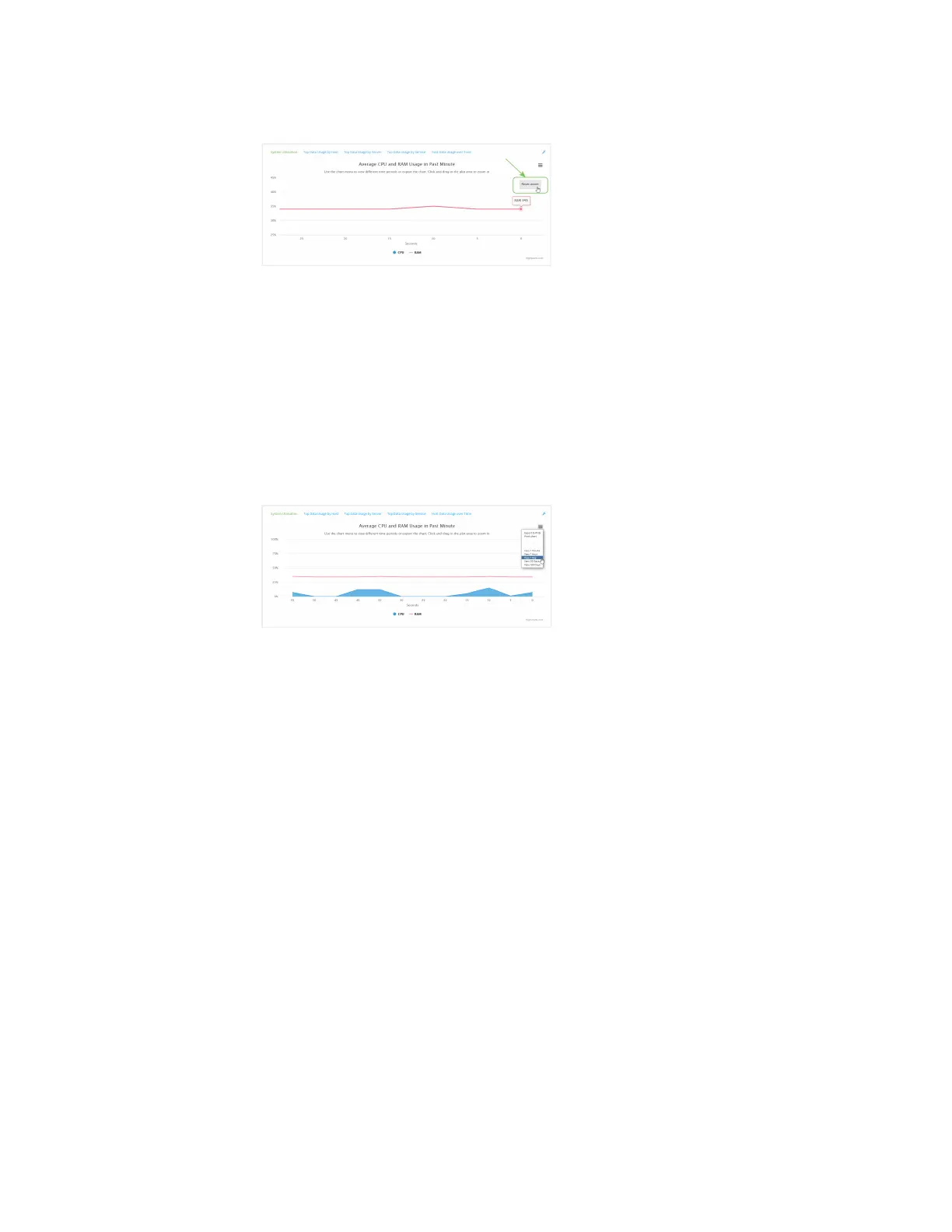

3. Click Reset zoom to return to the original display:
n
Change the time period displayed by the chart.
By default, the System utilisation chart displays the average CPUand RAM usage over the last
minute. You can change this to display the average CPUand RAM usage:
l
Over the last hour.
l
Over the last day.
l
Over the last 30 days.
l
Over the last 180 days.
1. Click the menu icon ().
2. Select the time period to be displayed.
n
Save or print the chart.
1. Click the menu icon ().
2. To save the chart to your local filesystem, select Export to PNG.
3. To print the chart, select Print chart.
Use intelliFlow to display top data usage information
With intelliFlow, you can display top data usage information based on the following:
n
Top data usage by host
n
Top data usage by server
n
Top data usage by service
To generate a top data usage chart:
Web
1. Log into the IX30 WebUI as a user with Admin access.
2. If you have not already done so, enable intelliFlow. See Enable intelliFlow.
3. From the menu, click Status > intelliFlow.

Digi IX30 Specifications

General

Category	Network Router
Model	IX30
Serial Ports	1 x RS-232
Operating Temperature	-40° C to 70° C
Connectivity	Ethernet
USB Ports	1 x USB 2.0
Cellular Interface	4G LTE Cat 4
Wi-Fi	802.11 a/b/g/n/ac
SIM Slots	1
Processor	ARM Cortex-A9
Memory	1 GB RAM
