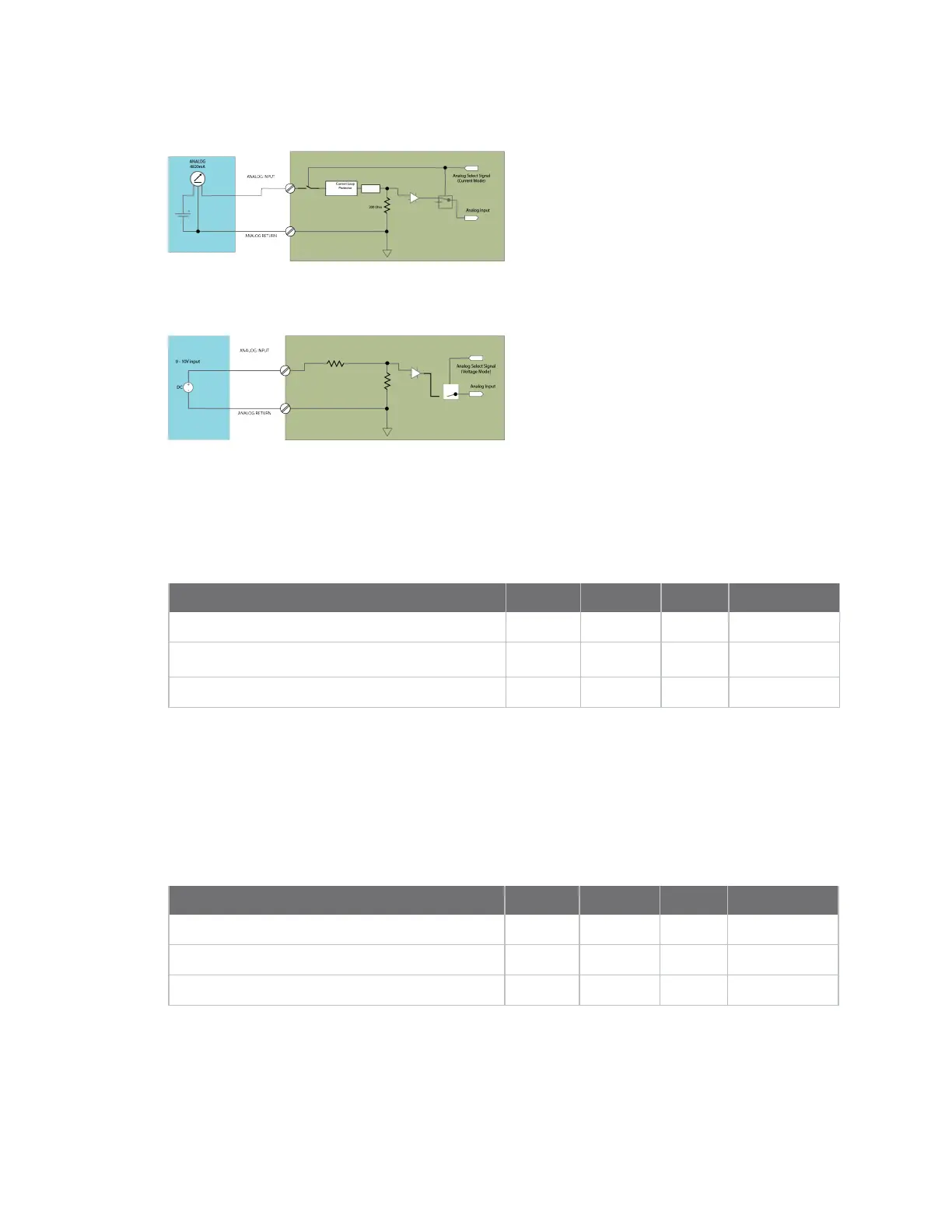

Digital Input/Output and Analog Input Digital and analog I/O specifications
IX30 User Guide
826
Analog input, 4-20mA input mode
Analog input, 0-10V input mode
Digital and analog I/O specifications
Digital I/O specifications
Specification Min Nom Max Units
Rated Input Voltage -1.5 18.5 V
Rated Input Current -1.0 100
1
mA
Pull-Up Resistance 10 k Ohms
1
The current limiter is limiting over 30mA.
Digital input specifications
n
This input is a non-inverting Schmitt-trigger input.
n
The default state at power-up with no voltage applied is LOW.
Specification Min Nom Max Units
+ Threshold .. 2 .. V
- Threshold .. 1.1 .. V
Input impedance .. 4.7M .. Ohms
