Serial port Advanced RealPort configuration without using the Digi Navigator
IX30 User Guide
268
10. Click Apply.
11. Click OKto close the Advanced Properties dialog.
12. Click OK to close the Properties window.
Configure the serial port for RealPort mode
RealPort mode allows you to use Realport.
To change the configuration to match the serial configuration of the device to which you want to
connect:
Web
1. Log into the IX30 WebUI as a user with Admin access.

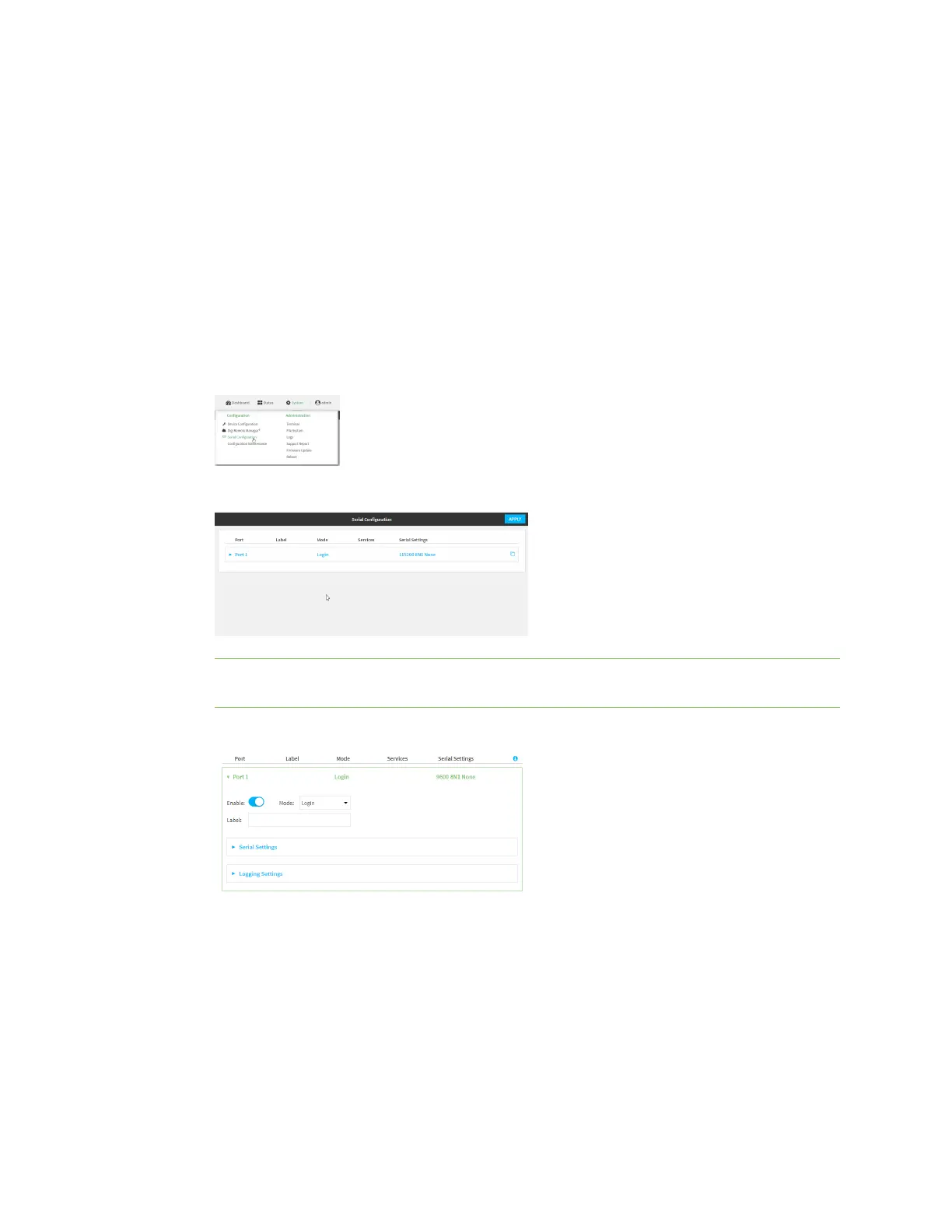

2. On the menu, click System. Under Configuration, click Serial Configuration.
The Serial Configuration page is displayed.
Note You can also configure the serial port by using Device Configuration > Serial. Changes
made by using either Device Configuration or Serial Configuration will be reflected in both.
3. Click the name of the port that you want to configure.
The serial port is enabled by default. To disable, toggle off Enable.
4. For Mode, select RealPort.
5. Leave Sharing Mode at the default, None.
6. (Optional) For Label, enter a label that will be used when referring to this port.
7. For Signalling, select the electrical signaling interface type used on this serial port:
n
RS-232
n
RS-422
l
Enable Termination if you want to enable electrical termination on this serial port.
