Digital Input/Output and Analog Input Example digital and analog I/O wiring
IX30 User Guide
825

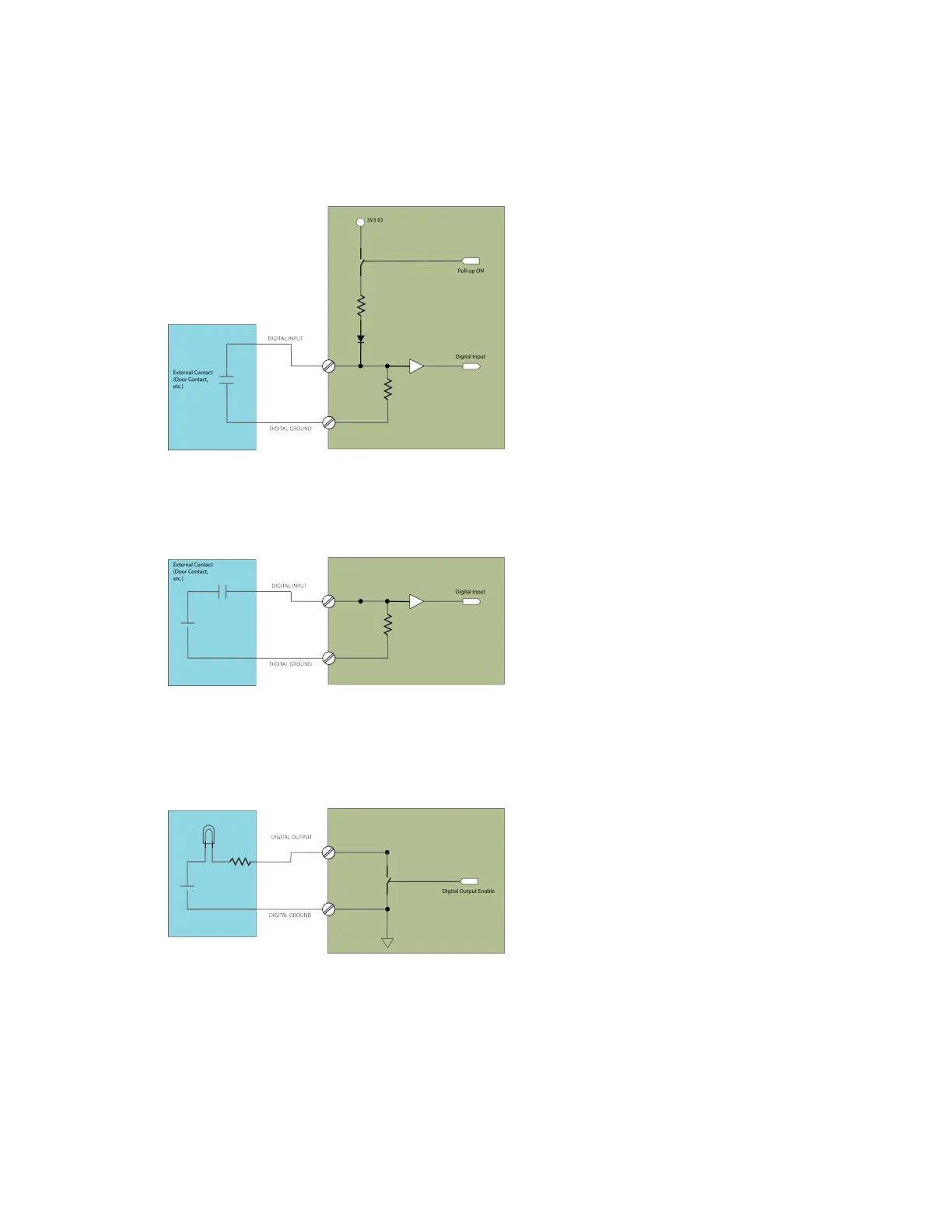

Example digital and analog I/O wiring
Digital input with pullup
Digital input without pullup
Note that input is HIGH when the contact is CLOSED.
Digital output
The wiring diagram assumes a current-limiting resistor provided by installation or connected device is
in use.
