Digi IX30 hardware reference IX30 LEDs
IX30 User Guide
26

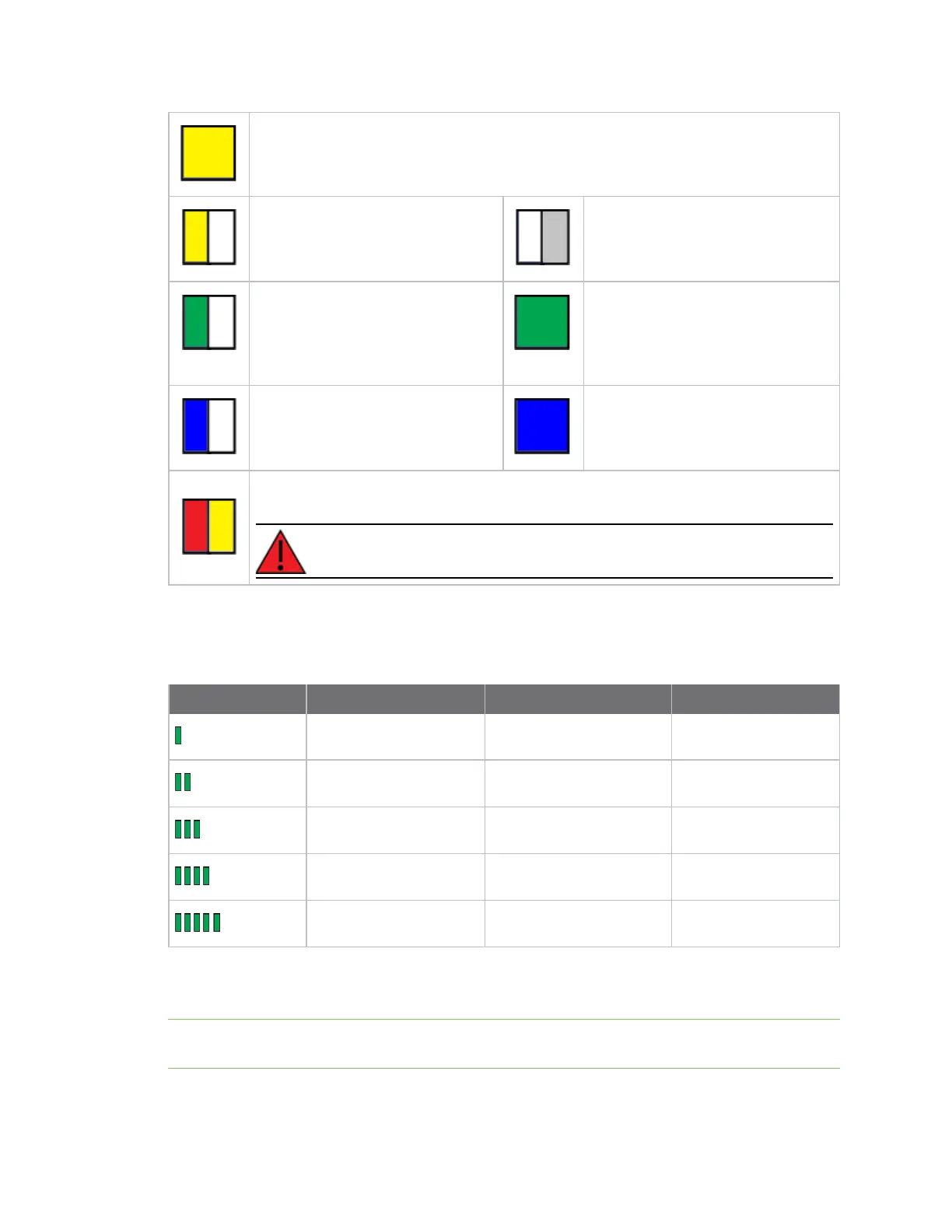

Solid yellow (or orange)
Initializing or starting up.
Flashing yellow (or orange)
In the process of connecting to the
cellular network and to a device on
its ETH2 port.
Flashing white
ETH2 port connection established
and in the process of connecting to
the cellular network.
Flashing green
Connected to 2G or 3G and is in the
process of connecting to any device
on its ETH2 port, or nothing is
connected to the port.
Solid green
Connected to 2G or 3G and also has
a device linked to its ETH2 port.
Flashing blue
Connected to 4G LTE and in the
process of connecting to a device on
its ETH2 port.
Solid blue
Connected to the 4G LTE and also
has a device link to its ETH2 port.
Alternating Red/yellow (or orange)
Upgrading firmware.
WARNING! DO NOT POWER OFF DURING FIRMWARE UPGRADE.
Signal quality indicators
LEDs labeled 1 through 5 Indicate the cellular service quality level.
Signal bars Weighted dBm Signal strength % Quality
-113 to -99 0% to 23% Bad
-98 to -87 24% to 42%
Marginal
-86 to -76 43% to 61% OK
-75 to -64 62% to 80% Good
-63 to -51 81% to 100% Excellent
The weighted dBm measurements are negative numbers, meaning values closer to zero denote a
larger number. For example, a -85 is a better signal than -90.
Note See Signal quality bars explained for more information regarding how signal strength is
calculated and subsequently displayed via the LED indicators.
