Serial port Configure UDP serial mode
IX30 User Guide
240

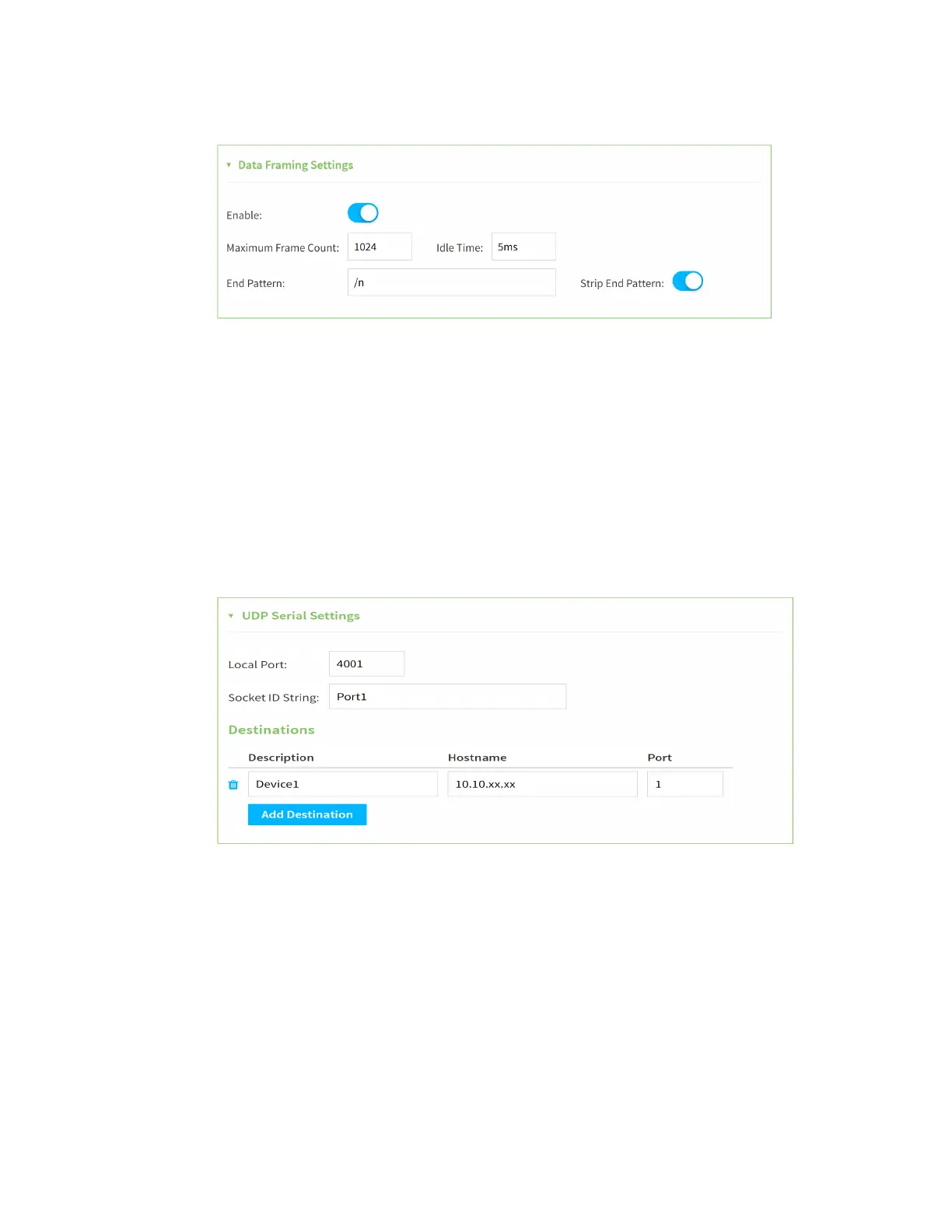

8. Expand Data Framing Settings.
a. Click to expand Data Framing.
i. Click Enable to enable the data framing feature.
ii. For Maximum Frame Count, enter the maximum size of the packet. The default is
1024.
iii. For Idle Time, enter the length of time the device should wait before sending the
packet.
iv. For End Pattern, enter the end pattern. The packet is sent when this pattern is
received from the serial port.
v. Click Strip End Pattern if you want to remove the end pattern from the packet before
it is sent.
9. Expand UDPSerial Settings.
a. For Local port, enter the UDPport. The default is 4001 or serial port 1, 4002 for serial port
2, etc.
b. (Optional) For Socket String ID, enter a string that should be added at the beginning of
each packet.
c. For Destinations, you can configure the remote sites to which you want to send data. If
you do not specify any destinations, the IX30 sends new data from the last IP address and
port from which data was received. To add a destination:
i. Click Add Destination. A destination row is added.
ii. (Optional) For Description, enter a description of the destination.
