Digi IX30 User Manual

User authentication Remote Authentication Dial-In User Service (RADIUS)
IX30 User Guide
733

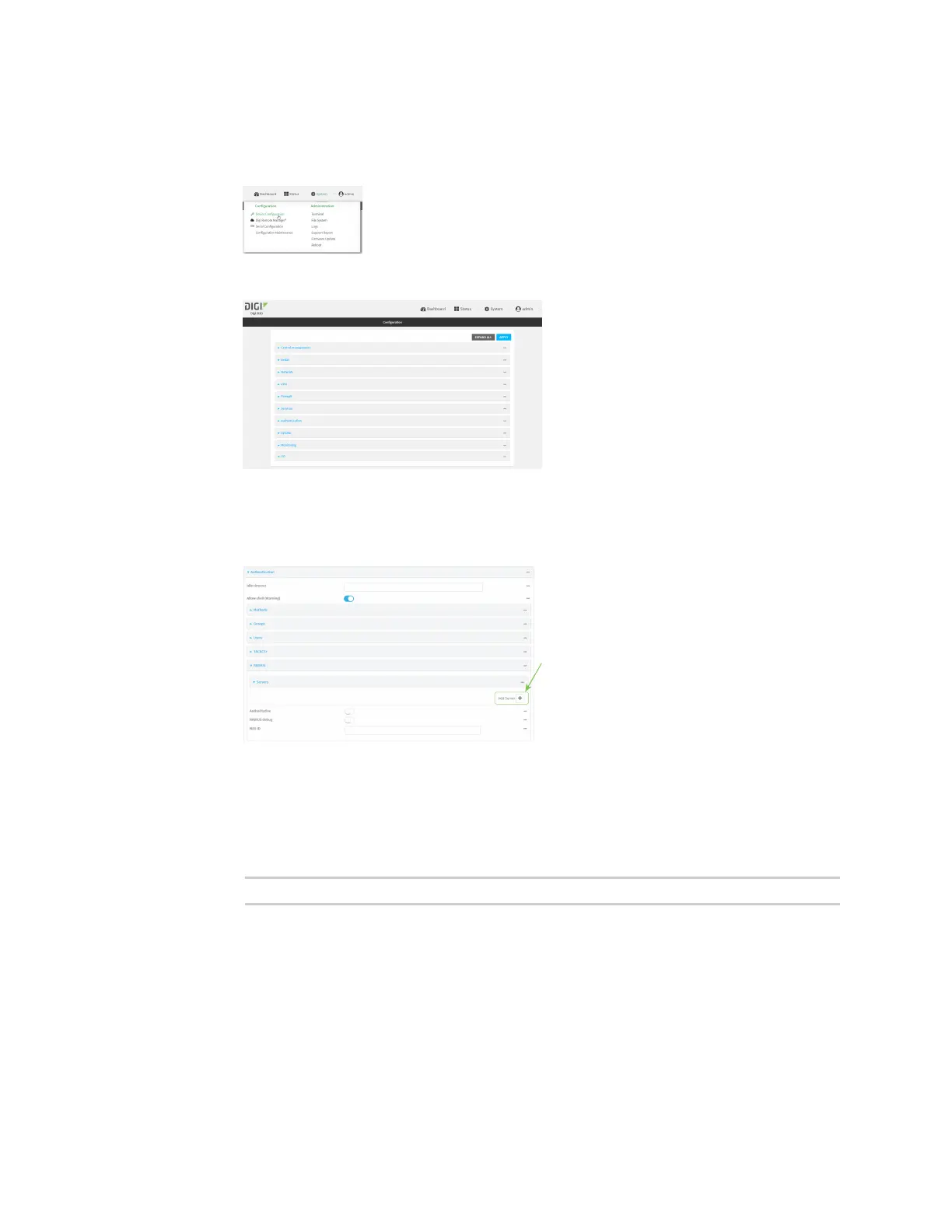

Local Web UI:
a. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
3. Click Authentication > RADIUS > Servers.
4. Add RADIUS servers:
a. For Add server, click .
b. For Hostname, type the hostname or IP address of the RADIUS server.
c. (Optional) Change the default Port setting to the appropriate port. Normally this should
be left at the default setting of port 1812.
d. For Secret, type the RADIUS server's shared secret. This is configured in the secret
parameter of the RADIUS server's client.conf file, for example:
secret=testing123
e. For Timeout, type or select the amount of time in seconds to wait for the RADIUS server to
respond. Allowed value is any integer from 3 to 60. The default value is 3.
f. (Optional) Click  again to add additional RADIUS servers.
5. (Optional) Enable Authoritative to prevent other authentication methods from being
attempted if RADIUS login fails.
6. (Optional) Click RADIUS debug to enable additional debug messages from the RADIUS client.

Digi IX30 Specifications

General

Category	Network Router
Model	IX30
Serial Ports	1 x RS-232
Operating Temperature	-40° C to 70° C
Connectivity	Ethernet
USB Ports	1 x USB 2.0
Cellular Interface	4G LTE Cat 4
Wi-Fi	802.11 a/b/g/n/ac
SIM Slots	1
Processor	ARM Cortex-A9
Memory	1 GB RAM
