Digital Input/Output and Analog Input Configure analog input ports
IX30 User Guide
832
Web
1. Log into Digi Remote Manager, or log into the local Web UI as a user with full Admin access
rights.
2. Access the device configuration:
Remote Manager:
a. Locate your device as described in Use Digi Remote Manager to view and manage your
device.
b. Click the Device ID.
c. Click Settings.
d. Click to expand Config.
Local Web UI:

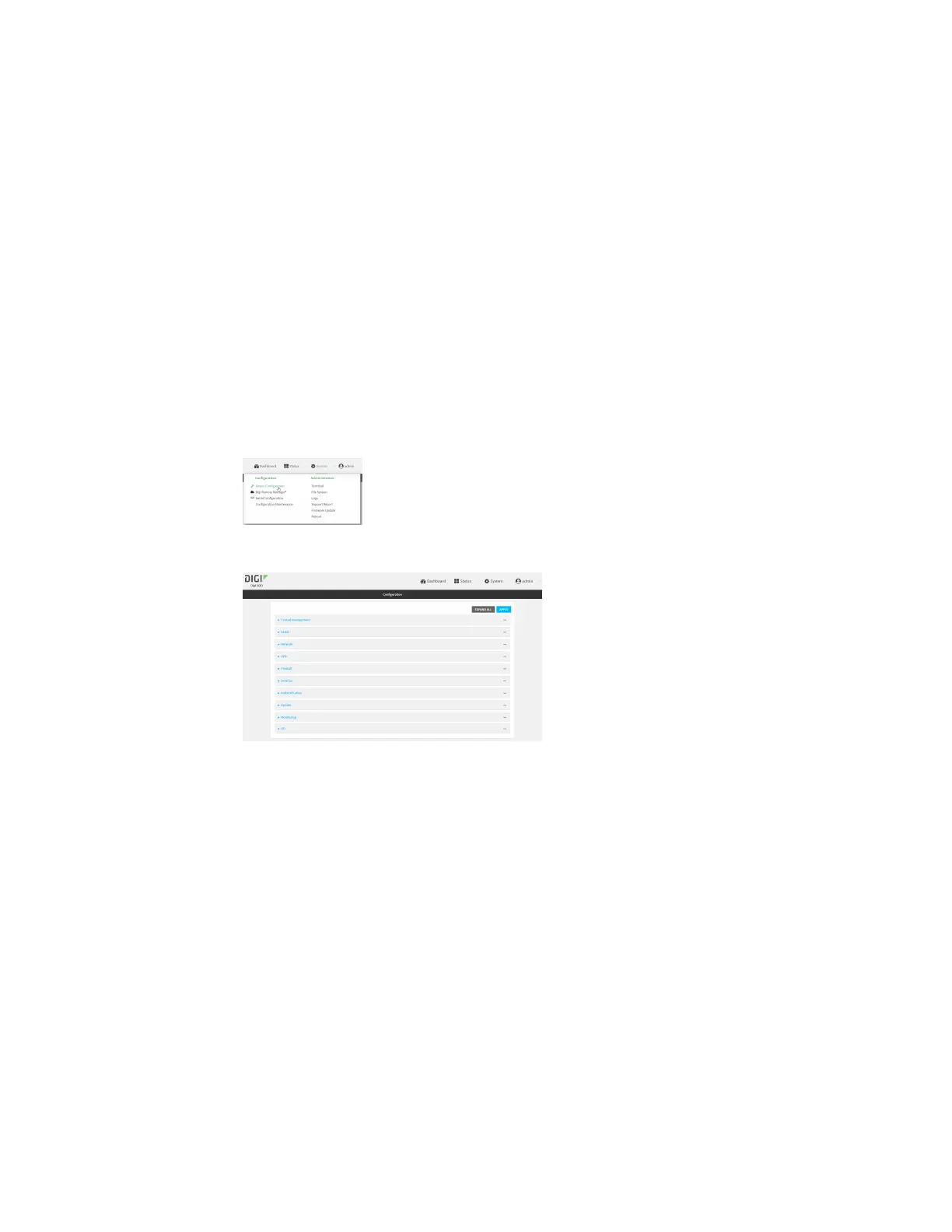

a. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
3. Click I/O > Analog inputs.
4. Click to expand Analog input 1.
5. (Optional) For Label, enter a label for the I/O pin.
6. By default, the pin is configured to use voltage measurement mode. Click to enable Current
mode to use current measurement mode instead.
7. Repeat for additional analog input pins.
8. Click Apply to save the configuration and apply the change.
Command line
1. Select the device in Remote Manager and click Actions > Open Console, or log into the IX30
local command line as a user with full Admin access rights.
Depending on your device configuration, you may be presented with an Access selection
menu. Type admin to access the Admin CLI.
