3.3.1 Routing of the Air Lines
NOTE: This section shows the route from the incoming air till the air switch on the Coating
Head. The following sections show the routing of the air lines needed with the
several options.

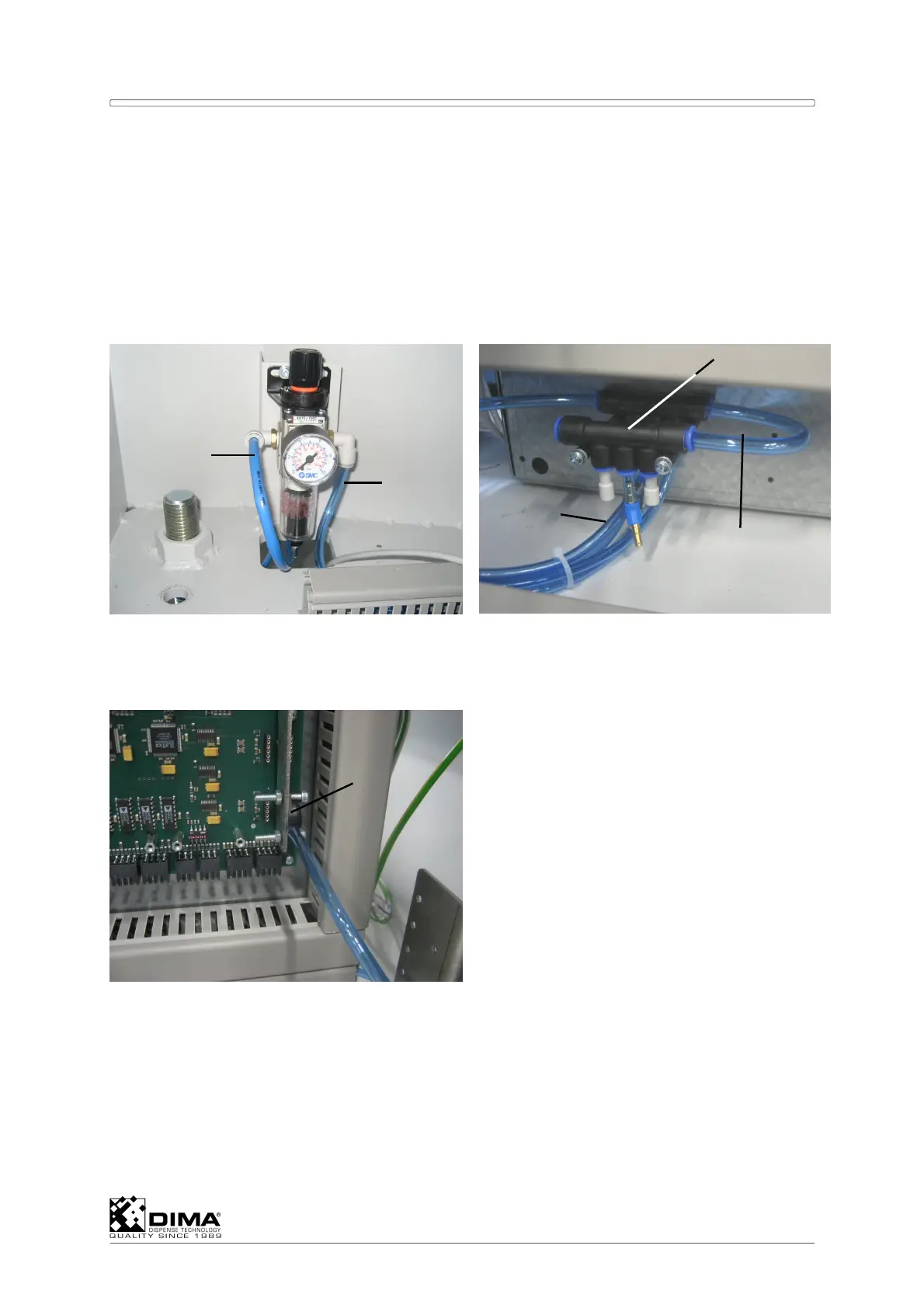

A The pressurized air enters the machine at the left of the front bottom and from there one
air line runs to the distribution block (#1) at the left in the bottom compartment. The
distribution block consists of two blocks connected together. The connection hose (#2)
makes the air connection.
B From there (#1) the air is distributed via one line straight to the pressure sensor on the
large PCB in the bottom rear of the machine. This is always the first pressure sensor (#3)
at the bottom right hand side bracket of the large PCB.
In
Out
to
coating
head
2
1
3
