HYBRID Coater Service Manual ver1.1 Chapter 8
61
LED Used for State
Input is not used at this moment.
D72 NPN input for product sensor 2 On = Product sensor 2 detects a product.
Off = Product sensor 2 doesn’t detect a product.
Input is not used at this moment.
D73 Output Stop pin On = Stop pin is activated (up).
Off = Stop pin is not activated (lowered).
Output is only used when conveyor is present.
D74 Output Product Clamping On = Product clamping activated (up).
Off = Product clamping not activated (lowered).
Output is only used when conveyor with product
clamping is present.
D75 Spare output Output is not used at this moment.
D76 Spare output Output is not used at this moment.

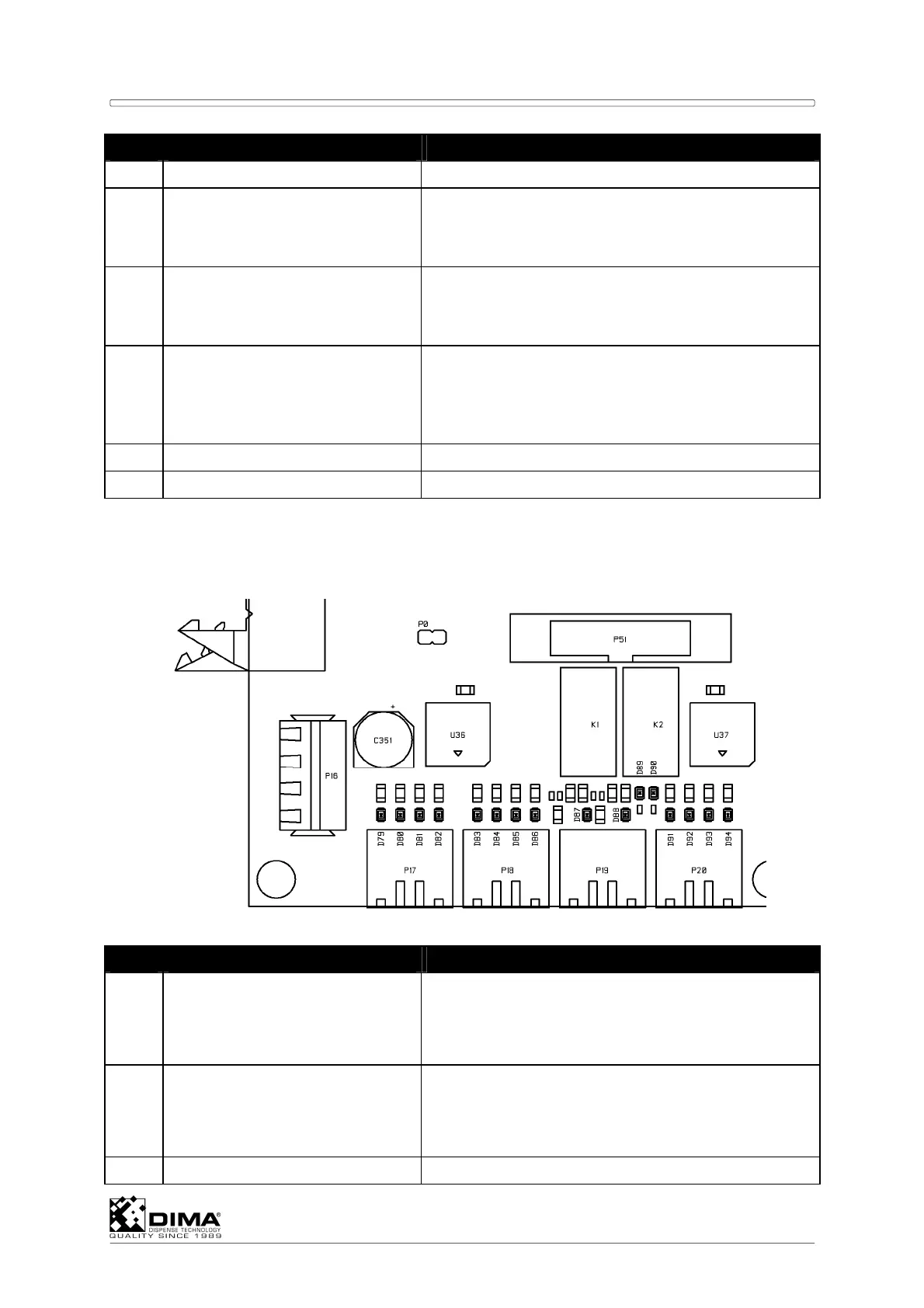

8.2.5 LED’s on Bottom Left Side of the EL-04873
LED Used for State
D79
till
D82
Output for ‘Medium Pressure 1’
till ‘Medium Pressure 4’
On = Output for valve ‘Medium Pressure’
belonging to unit 1-4 is active (open).
Off = Output for valve ‘Medium Pressure’
belonging to unit 1-4 is not active (closed).
D83
till
D86
Output for ‘(Atomizing) Air 1’ till
‘(Atomizing) Air 4’
On = Output for valve ‘(Atomizing) Air’ belonging to
unit 1-4 is active (open).
Off = Output for valve ‘(Atomizing) Air’ belonging to
unit 1-4 is not active (closed).
D87 Output SMEMA IN On = Not busy (output contact closed).
