HYBRID Coater Service Manual ver1.1 Appendix H
165
H. EL-04879 Dispense Head PCB Overview
This appendix shows more detailed information about the connectors on the EL-04879
Dispense Head PCB. This PCB is only used in the HC-100.
CONNECTOR PINNING

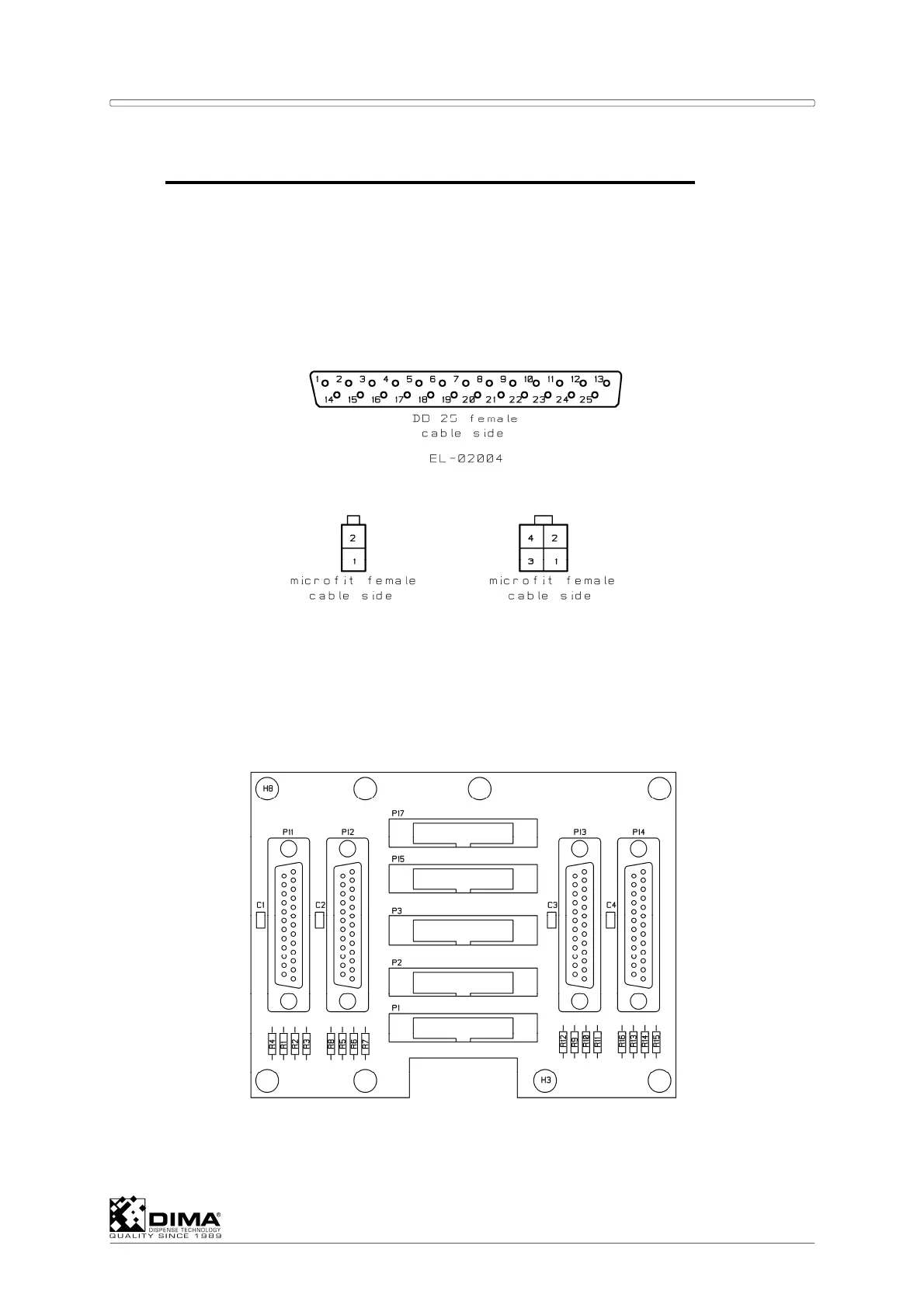

Below figure shows the pinning of the connectors which are the counterparts of the
connectors present on the PCB.
CONNECTOR NUMBERING
Below figures show the position of the connectors on the PCB.
Connectors on the PCB at the backside of the machine.
Connectors on the PCB at the front side of the machine.
