Chapter 8 HYBRID Coater Service Manual ver1.1
62
LED Used for State
Off = Busy (output contact open).
D88 Output SMEMA OUT On = Board available (output contact closed).
Off = No board available (output contact open).
D89 Input SMEMA IN On = Board available (input sees closed contact).
Off = No board available (input sees open contact).
D90 Input SMEMA OUT On = Not busy (input sees closed contact).
Off = Busy (input sees open contact).
D91
till
D94
Spare outputs Outputs are not used at this moment.

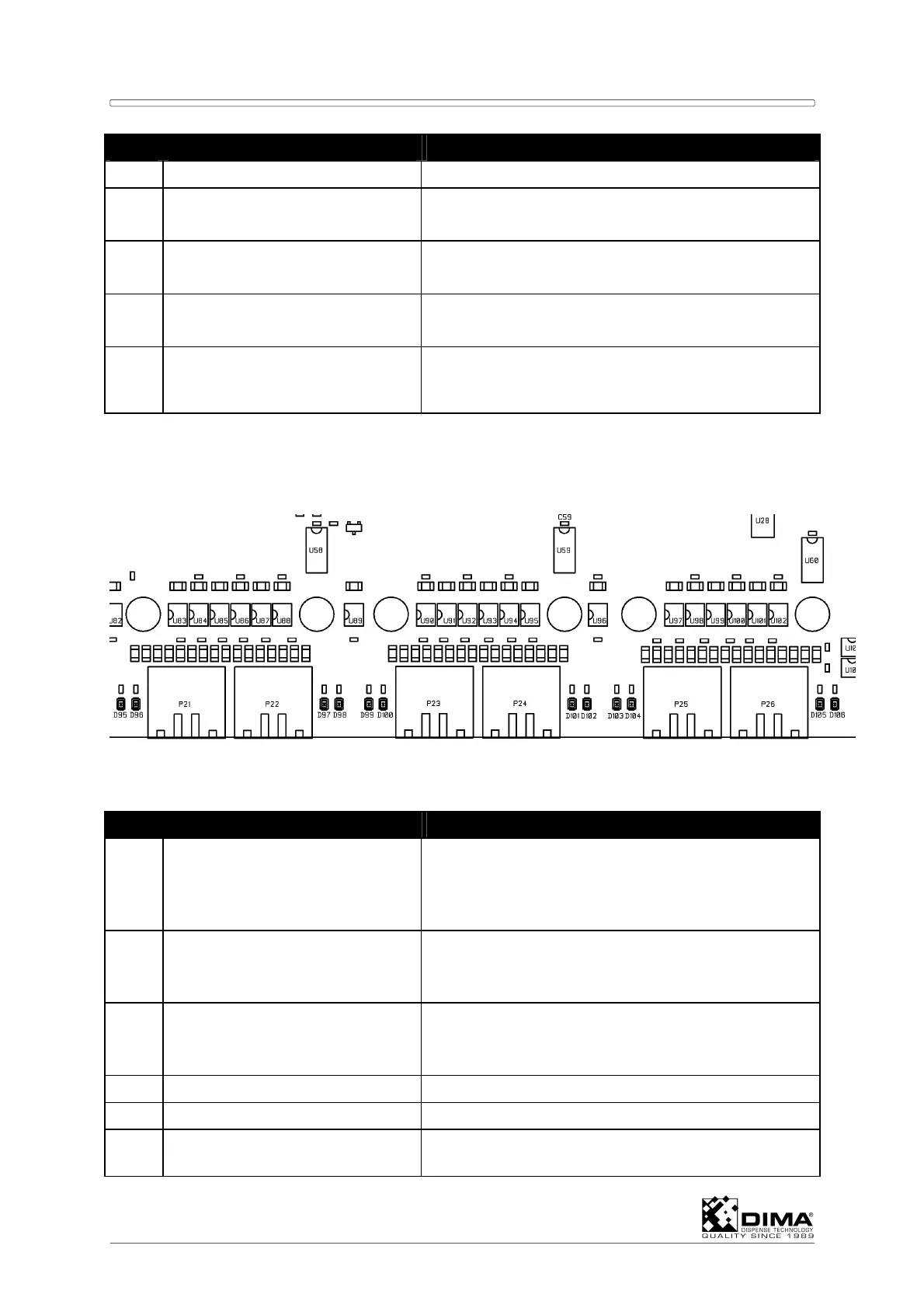

8.2.6 LED’s near Connectors P21 till P26 on the EL-04873
LED Used for State
D95
till
D98
Input for Container Empty
indication 1 till 4
On = Sensor Container Empty 1-4 is active (not
empty).
Off = Sensor Container Empty 1-4 is not active
(empty).
D99 PNP input for Flow detection
switch
On = Flow detection switch detects enough flow.
Off = Flow detection switch detects not enough
flow (not safe to start production).
D100 NPN input for Flow detection
switch
On = Flow detection switch detects not enough
flow (not safe to start production).
Off = Flow detection switch detects enough flow.
D101 Spare input Input is not used at this moment.
D102 Spare input Input is not used at this moment.
D103
till
Input for Flow (Counting)
indication 1 till 4
Inputs are not used at this moment.
