E. EL-04873 Control PCB Overview
This appendix shows more detailed information about the connectors on the outside of the
EL-04873 Control PCB.
CONNECTOR PINNING

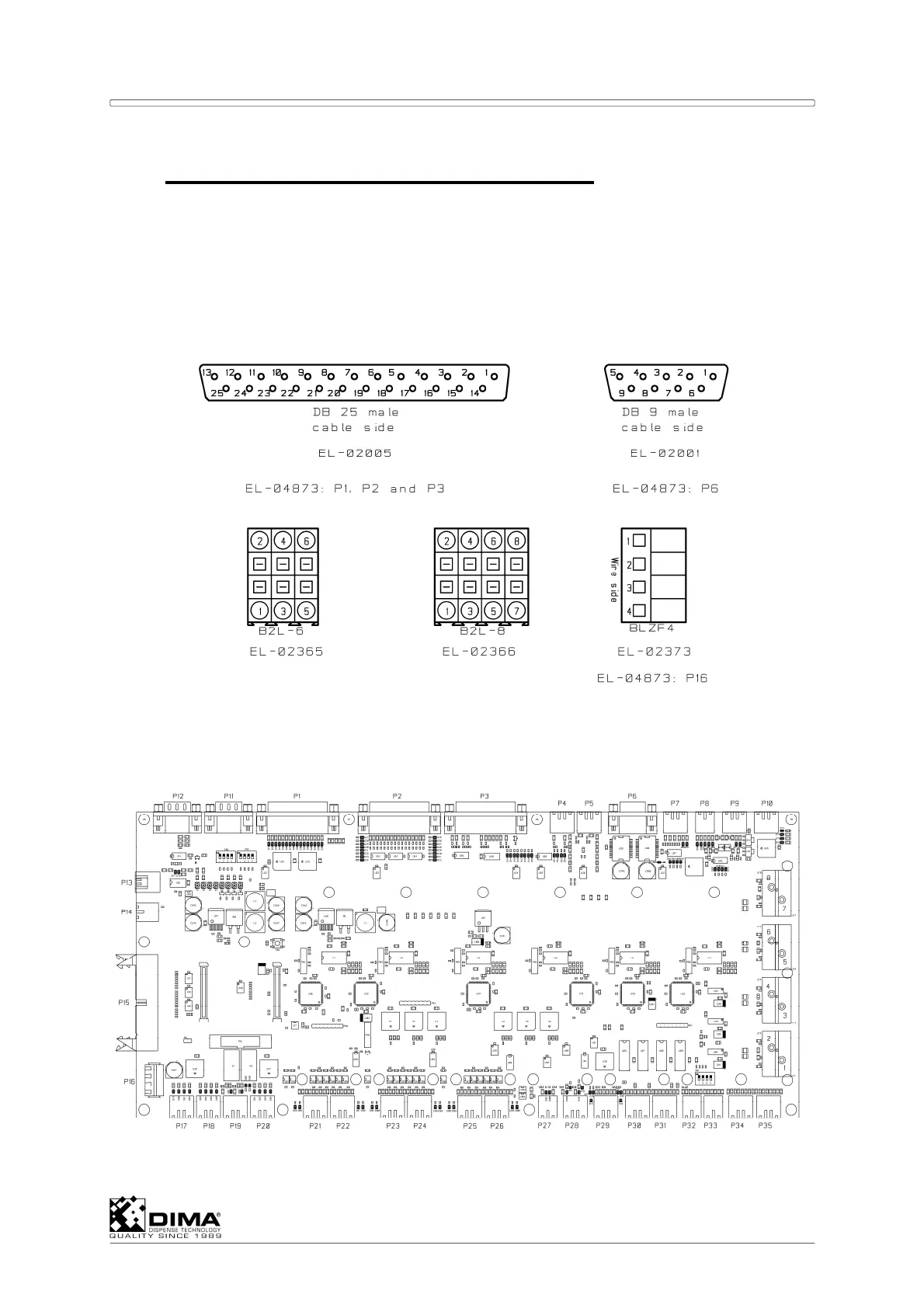

Below figure shows the pinning of the connectors which are the counterparts of the
connectors present on the PCB.
CONNECTOR NUMBERING
Below figure shows the position of the connectors on the PCB.
