DIMA HC-200 - Leds Near Connector P3 and P4 on the EL-04873

Chapter 8 HYBRID Coater Service Manual ver1.1
58
LED Used for State
D27
till
D30
Input for ‘Up 1’ till ‘Up 4’ On = Sensor for upper limit detection of the extend
of unit 1-4 is active (up).
Off = Sensor for upper limit detection of the extend
of unit 1-4 is not active.
D31
till
D34
Input for ‘Down 1’ till ‘Down 4’ On = Sensor for bottom limit detection of the
extend of unit 1-4 is active (down).
Off = Sensor for bottom limit detection of the
extend of unit 1-4 is not active.
D35
till
D38
Input for ‘Tilt 1’ till ‘Tilt 4’ On = Sensor for tilt limit detection of the tilt function
of unit 1-4 is active (tilt).
Off = Sensor for tilt limit detection of the tilt function
of unit 1-4 is not active.
D39
till
D42
Input for ‘Normal 1’ till ‘Normal 4’ On = Sensor for normal or straight limit detection of
the tilt function of unit 1-4 is active (normal or
straight).
Off = Sensor for normal or straight limit detection of
the tilt function of unit 1-4 is not active.

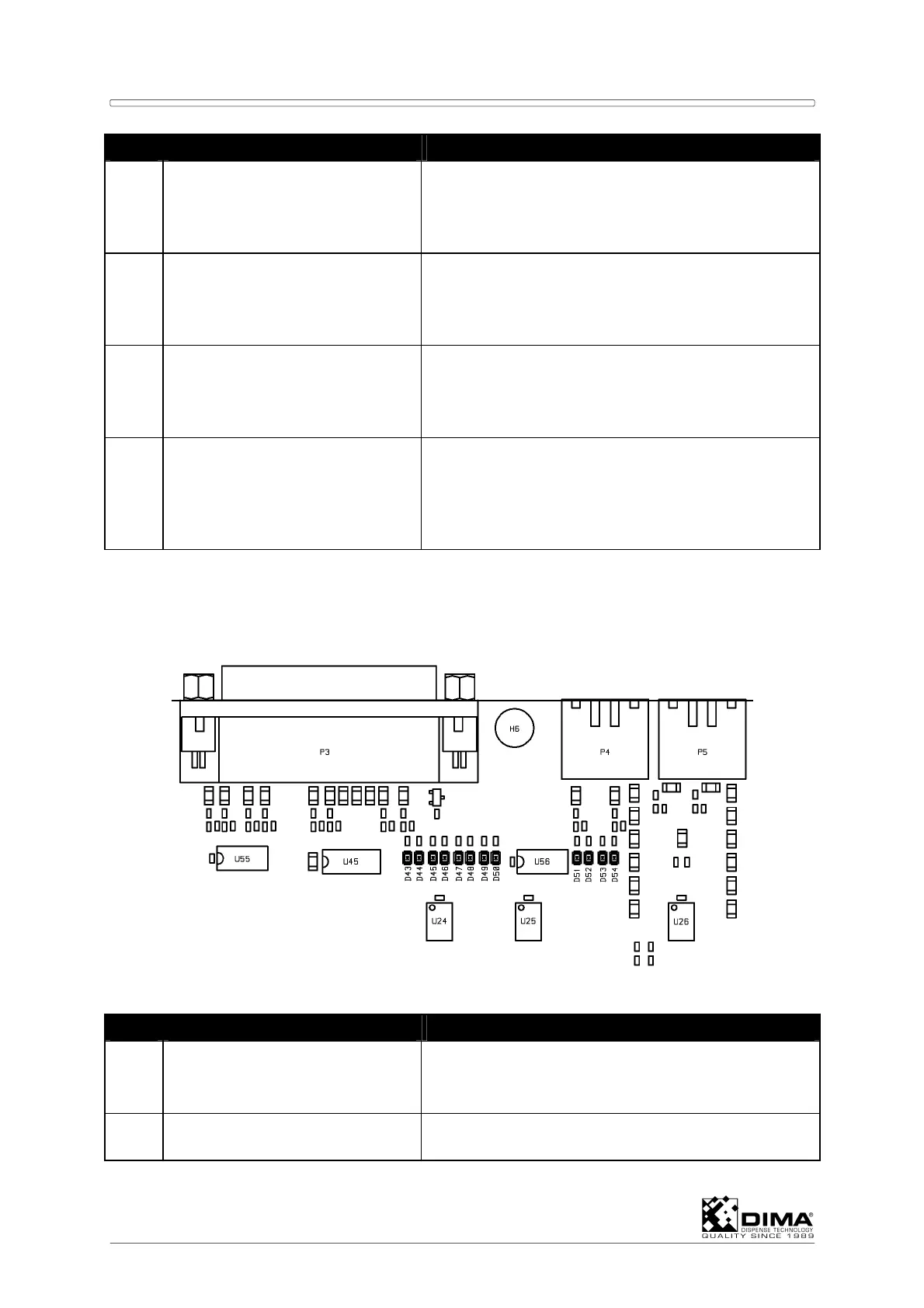

8.2.3 LED’s near Connector P3 and P4 on the EL-04873
LED Used for State
D43 Input for left limit of X movement On = Vane is not interrupted (head not in left X
limit).
Off = Vane is interrupted (head in left X limit).
D44 Input for tight limit of X
movement
On = Vane is not interrupted (head not in right X
limit).
