Chapter 3 HYBRID Coater Service Manual ver1.1
14
3.4 With Options HC-1160/1170
The HC-1160 consists of a chain conveyor with two stepper motors, two stopper pin
cylinders and one product sensor. The HC-1170 has additionally two clamping rails which

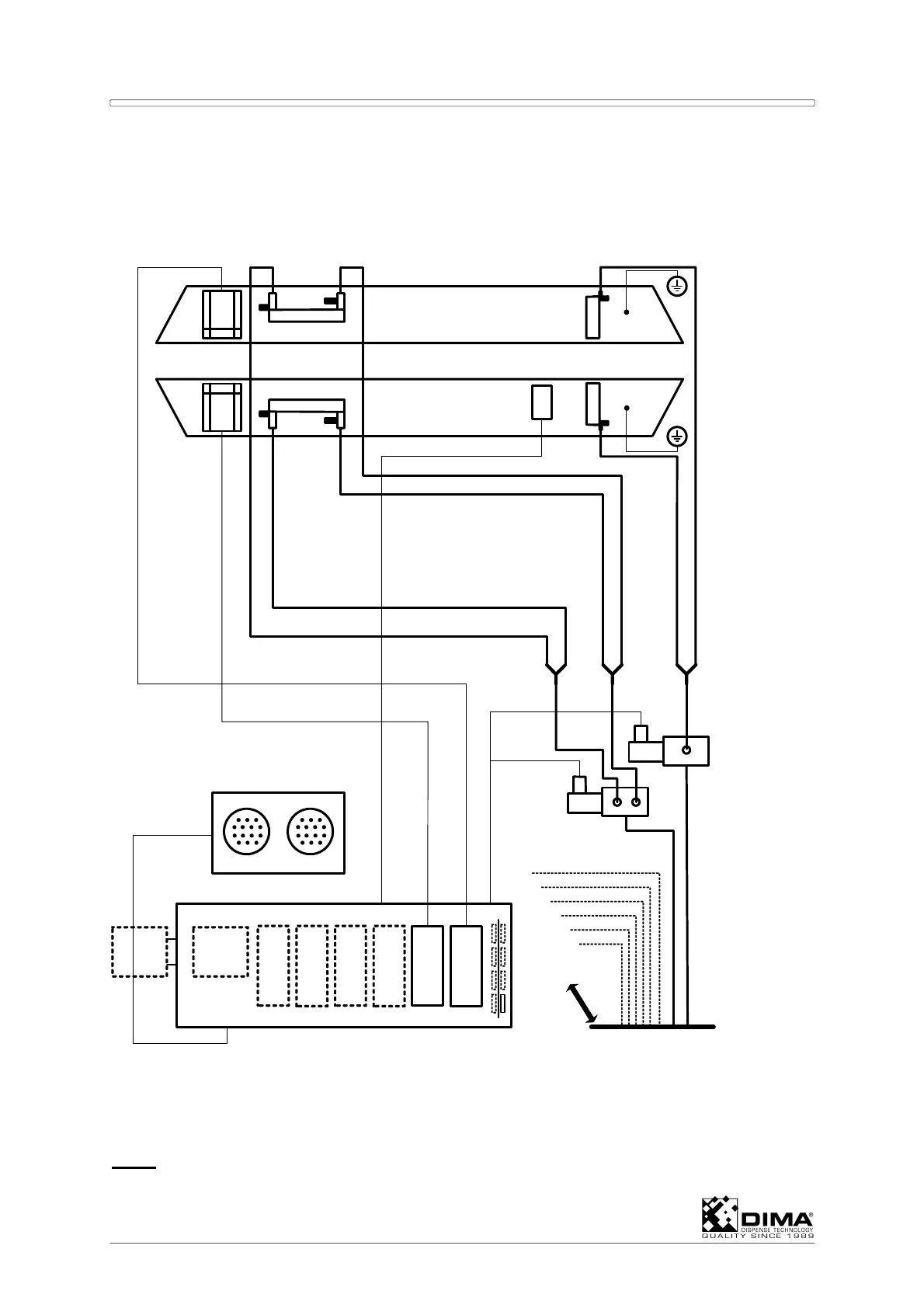

are actuated by two air cylinders. The next block diagram shows the lay-out of the
connections.
Air
Distribution
Block
PCB of Stepper
Motor Front Rail
PCB Of Stepper
Motor Rear Rail
EL-04548
Processor
Module
EL-04873 Control PCB
EL-04872
Power LED
Control
See Section 1.2 for relation to complete Electrical Block Diagram and Section 1.3 for relation to Block Diagram of Air
Front Conveyor Rail
Rear Conveyor Rail
3
P10
SMEMA Connectors
P19
P9
2
2
1
1
4
4
5
5
IN OUT
1. Stepper Motors for Chain Drive
2. Clamping Cylinders (HC-1170 only)
3. Product Sensor
4. Stopper Pin Cylinders
5. 3/2 Way Valves
= Air Lines
To Next Page
