HYBRID Coater Service Manual ver1.1 Chapter 3
13

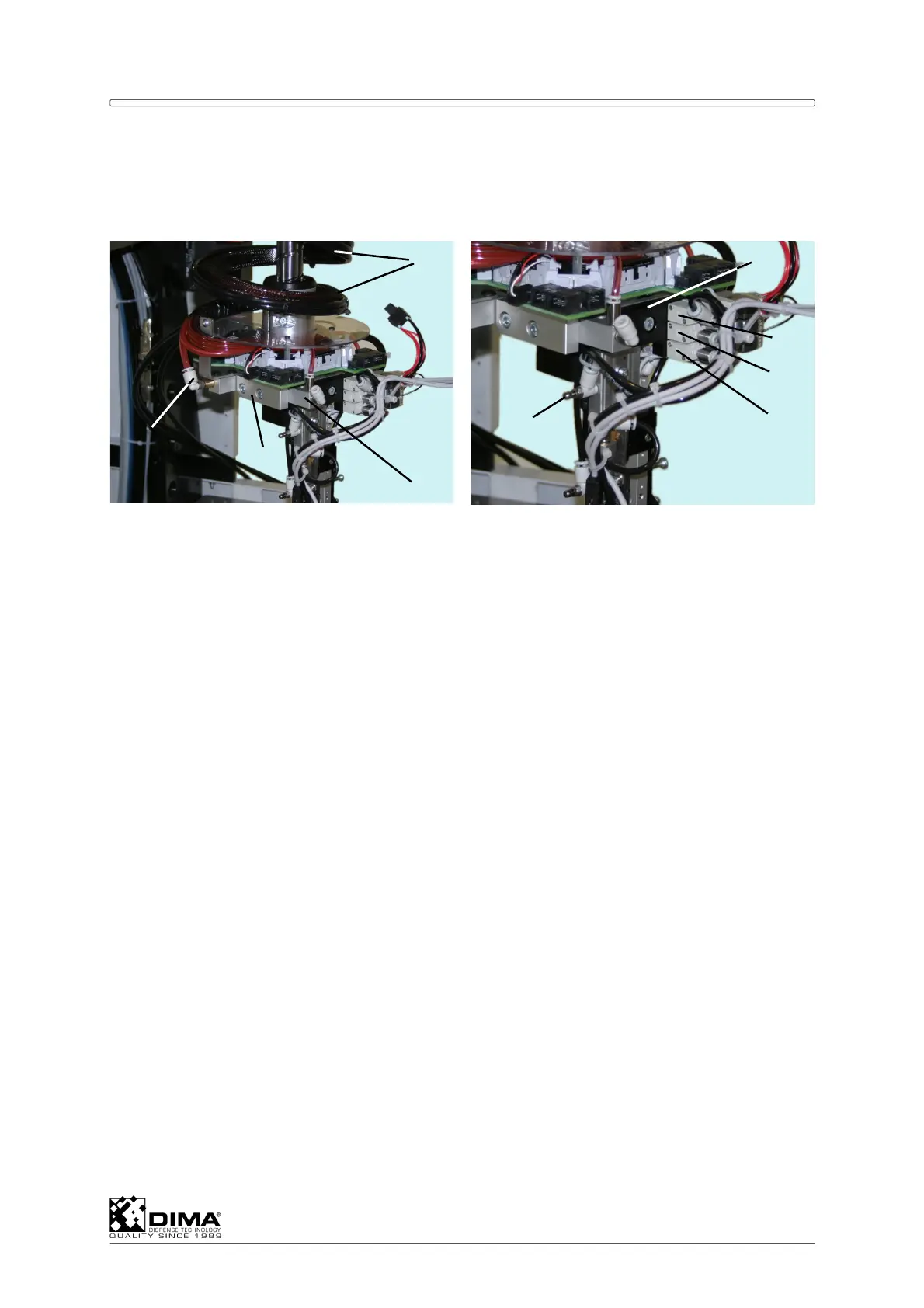

B At the HC-200 the pressure of the main air is from the air switch #5 through a line into the
flexible duct #18 around the Coating Head to the distributing cross #19 under the clear
plastic disc. Here the main pressure (#21) enters the cross (#19) of the rotating head and
is distributed inside this cross to sides behind the cover #20 where it can exit into the
corresponding tool. This cover (#20) must be removed and the tool can be mounted here.
C From behind the cover (#20) the air is distributed directly into the back plate (#22) of the
tool. There it runs inside to up to three solenoid valves. The upper one (#23) is used for
the slide In and Out, the middle one (#24) can be used to actuate the needle. The lower
one (#25) can be used for the tilt action. Again on the tools you can find the knobs (#26)
for fine adjustment of the movement.
