DIMA HC-200 - EL-04806 Dispense Head PCB Overview

HYBRID Coater Service Manual ver1.1 Appendix D
139
D. EL-04806 Dispense Head PCB Overview
This appendix shows more detailed information about the connectors on the outside of the
EL-04806 Dispense Head PCB. This PCB is only used in the HC-200.
CONNECTOR PINNING

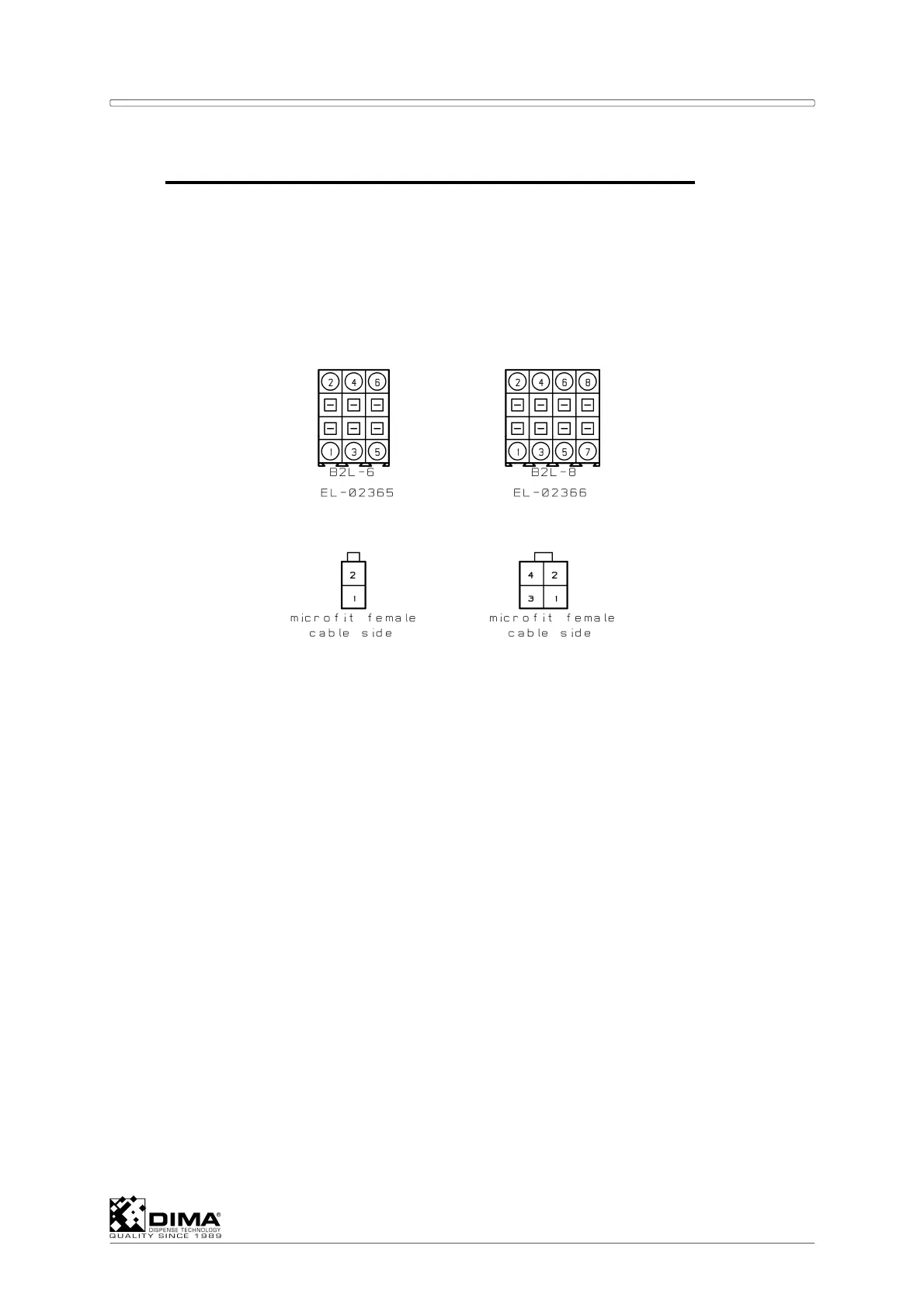

Below figure shows the pinning of the connectors which are the counterparts of the
connectors present on the PCB.
