Chapter 8 HYBRID Coater Service Manual ver1.1
64
LED Used for State
D116 Input LOCKED of door lock 3 On = Door lock 3 locked.
Off = Door lock 3 not locked.
Input is not used at this moment.
D117 Input CLOSED of door lock 4 On = Door lock 4 closed.
Off = Door lock 4 not closed.
Input is not used at this moment.
D118 Input LOCKED of door lock 4 On = Door lock 4 locked.
Off = Door lock 4 not locked.
Input is not used at this moment.

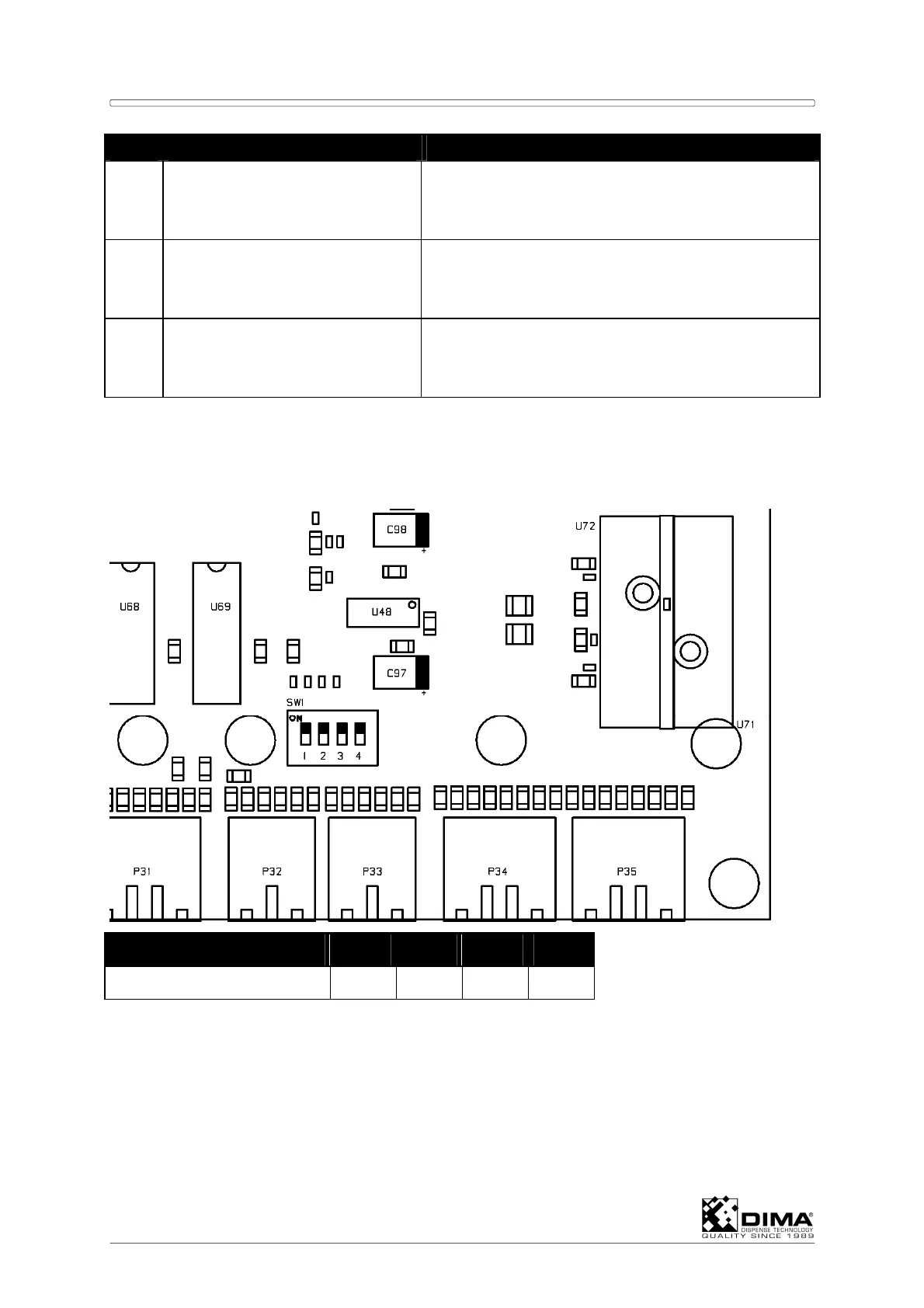

8.2.8 Explanation of DIP-switches on EL-04873
Set the DIP switches of SW1, SW2 and SW3 on EL-04873 according to the following tables.
SW1
DIP-switches on SW1 # 1 #2 #3 #4
Analog Inputs 0-10 Volts Off Off Off Off
