HYBRID Coater Service Manual ver1.1 Chapter 4
25
4. Machine Installation
4.1 Pre-installation Checks
Some time before installation of the machine, the customer will have received the Installation
Protocol. This protocol describes the requirements of the installation site. To make sure that
the site is well prepared, the following items should be checked before installation:
Foundation flatness: 5mm.
Floor strong enough to support the weight of the machine (refer to the User Manual).
Air system according to specifications (refer to the User Manual).
Power supply according to specification (refer to the User Manual).
4.2 Unpacking the Machine and Removing Transport Locks
If the machine is being transported on a pallet or in a crate;
To secure the head during transport, a transport lock is used. This must be removed before
use.
Remove the wrapping around the machine.
Open the doors

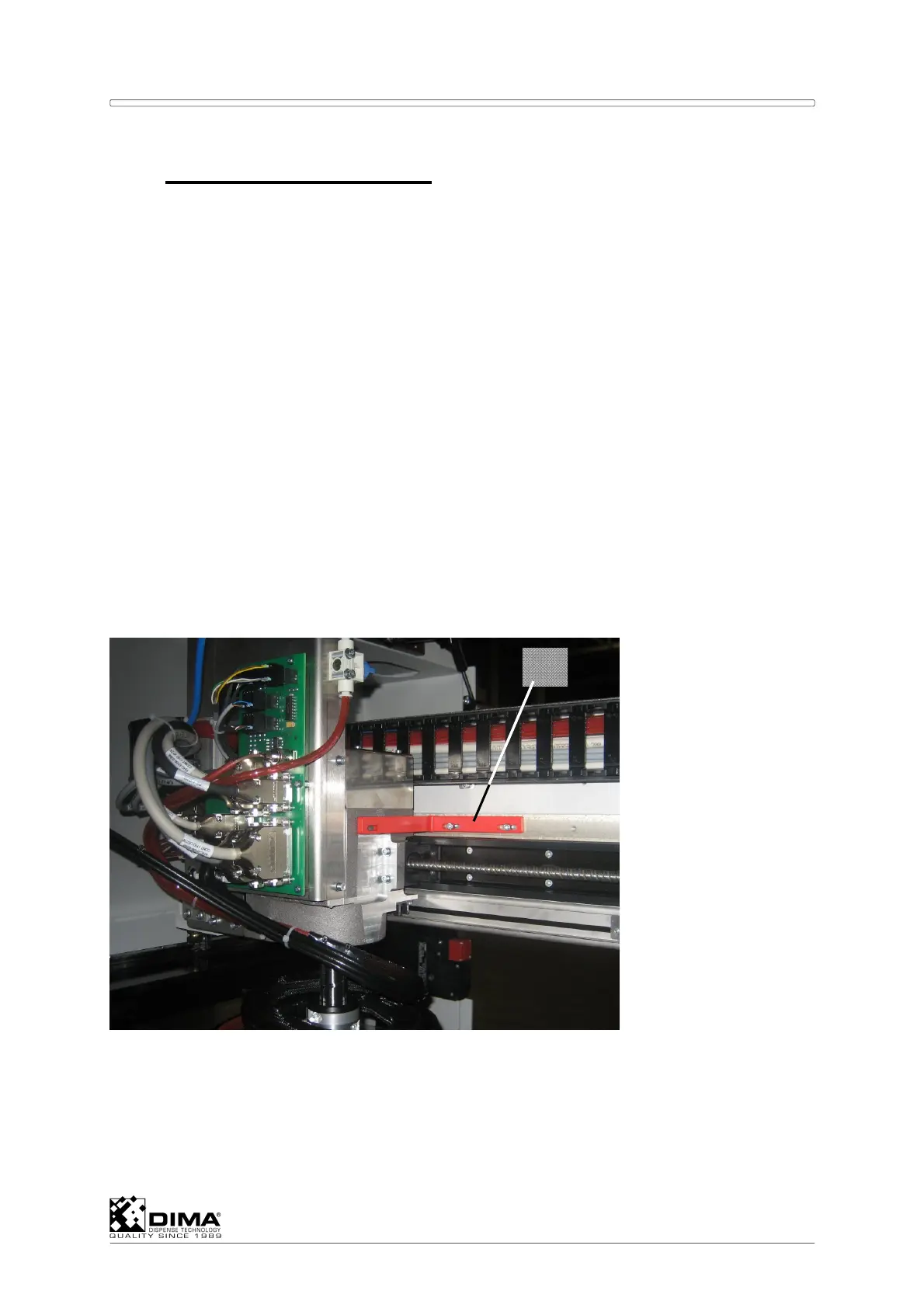

Remove the red bracket (#1) and the bolts which hold the head in place.
1 Red bracket
Open and remove the front and back covers (#2).
Remove the four bolts (#3) that hold the machine to the pallet or the bottom of the crate.
1
